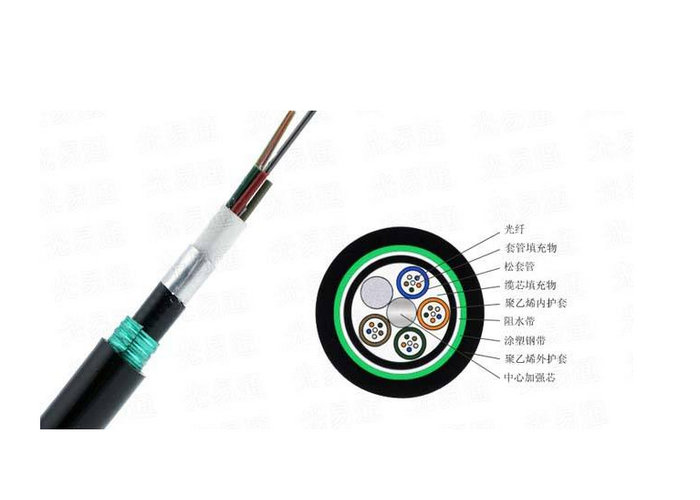

Double Armored and Double Jacket Outdoor Fiber Optic Cable SingleMode GYTA53
Application:
*
Characteristics:
* Steel-wire parallel member.Filler protect tube fiber steel tape amored.
* Excellent mechanical and environmental performance.
* Compact structure.Light weight.
* Can be installed conveniently and operated simply.
Technical Parameter:
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
Minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature | |||
| (MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | (°C) | |
| 2 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 4 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 6 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 8 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 10 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 12 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| 24 | 12.0 | 165.00 | 3000 | 1000 | 1500 | 500 | 20D | 10D | -40+60 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C,D) | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2:Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive Dispersion shifted single-mode fiber | |||
