| Place of Origin: | China (Mainland) |
|---|---|
| Model Number: | LV1000 |
| Brand Name: | RAKINDA |
| Scan Speed: | 200 Scans/sec |
| Optical Resolution: | 4mil |
| Max Paper Size: | A4 Size |
| Interface Type: | TTL232 |
| Colour Depth: | 32 Bit |
| Scan Element Type: | CCD |
| Type: | Barcode Scanner |
| Products Status: | Stock |
| Depth of scan field: | 40-430mm |
| Power consumption: | 0.33W |
| Voltage: | DC 3.3V |
| Dimensions: | 28x23x11mm |
| Weight: | 6g |
| Illumination: | 0-100,000 lux |
| Precision: | >=5mil |
Quick Details
Specifications

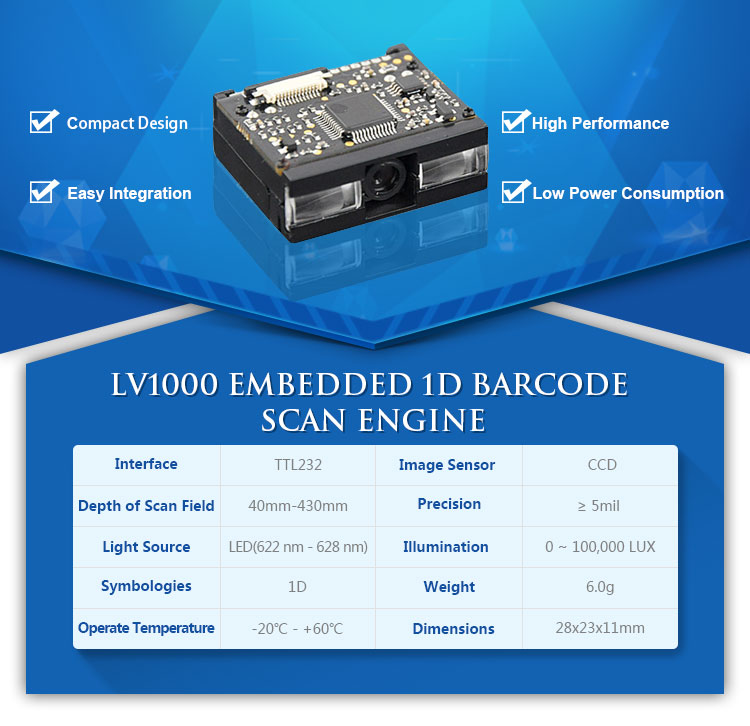

LV1000 High quality Small 1D CCD Barcode Scanner Reader Module Engine for Portable Handheld Scanner
Product Features:

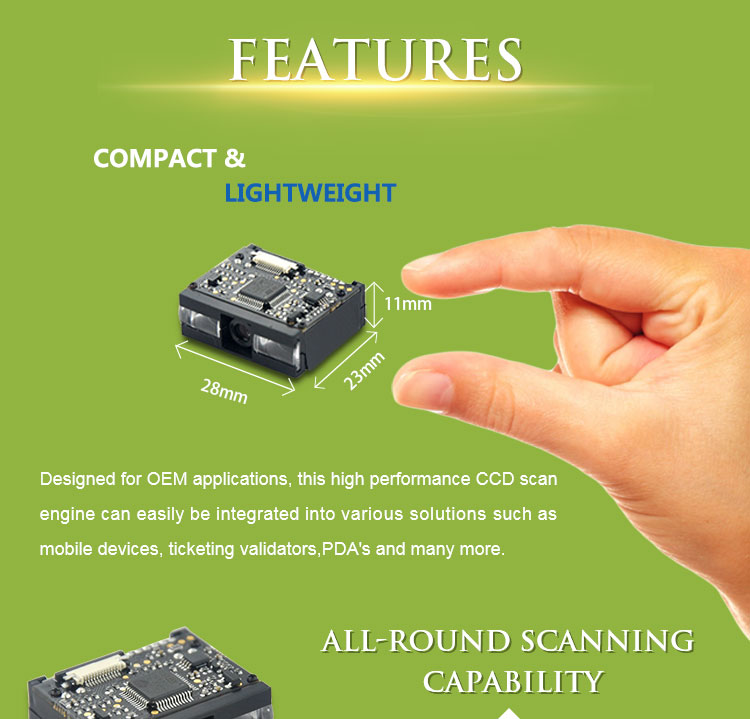

1) Highly integrated
Compact and highly integrated desing, image capture device with decoder on the same board.Small form factor features an easy installation and variety of usuages.
2) Advance Technology
Thanks to the core-technology uIMG.Independent designed and manufactured by Rakinda Technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. Supports all global standard 1D barcode symbologies. Reading performance reaches global standard.by using accessories provided, scan all kinds of barcodes defined by customers.
3) Intelligent Focus
Advanced optical focusing system which senses the ambient environment and adjusts the optical automatically for a quick reading response.
Product Features:
1) Highly integrated
Compact and highly integrated desing, image capture device with decoder on the same board.Small form factor features an easy installation and variety of usuages.
2) Advance Technology
Thanks to the core-technology uIMG.Independent designed and manufactured by Rakinda Technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. Supports all global standard 1D barcode symbologies. Reading performance reaches global standard.by using accessories provided, scan all kinds of barcodes defined by customers.
3) Intelligent Focus
Advanced optical focusing system which senses the ambient environment and adjusts the optical automatically for a quick reading response.
