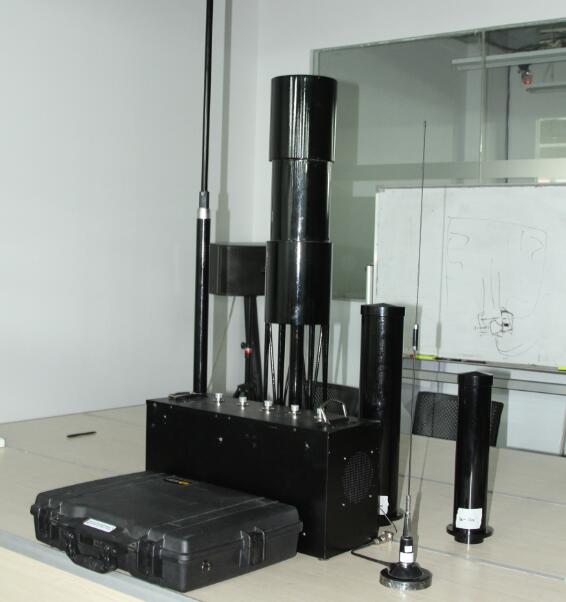

LFC-01 is an unique low radio frequency control system providing a suite of tactical, detecting, off-the-air, radio products and applications for law enforcement, security, intelligence agencies and State Radio Regulatory Commissions. Pirate Broadcast Stations, illegal underground airwaves, unlicensed walkie-talkies and illegal radio transmitters will be cracked down, hijacked, even taken over by LFC-01 in time.

Usability:
LFC-01 can detect, investigate and conduct transmissions from 20MHz to 1300MHz. SZMID's LFC-01 has two separated systems – Detecting system and Conducting system. the detecting system combined with one portable laptop with SmartSweep V1.0 software, one receiver, one whip receiving antenna; the conducting system includes the conducting host, 5 transmitting antennas.

Reference and target traces are quickly attained, stored, and conducted for rapid analysis and a waterfall display generates a spectrogram of receiver traces over time.
A market-leading spectrum analyzer module controlled by SZMID's SmartSweep software. this analyzer can cover a large area --up to 10km radius in one sweep with high sensitivity, and sweep 1GHz in one second to quickly detect activated transmitting frequencies and ensure that spectrum activities are captured. SmartSweep automates the RF sweep and makes it much more accurate. It also frees up a technician for other activities and tasks.
by adjusting parameters of spectrum analyzer from SmartSweep, all suspected working frequencies are displayed on the screen. Technicians can choose any suspected working frequencies for listening the audio information by demodulated with WFM, NFM and AM three demodulation techniques, then set them as conducted  frequencies. SmartSweep can conduct 16 illegal frequencies by jamming, hijacking, and recording at the same time, the controlling radius will be up to 500m with our 5 transmitting antennas.

Features & Benefits:

?Scans 1 GHz in 1 second ensuring spectrum activity is captured.
?SZMID's SmartSweep V1.0 spectrum analyzer software.
?the lightweight unit weighs only 15.4 lbs/7 kg providing a portable briefcase built-in a spectrum analyzer and a laptop.
?Battery run time is 2-3 hours.
?Reference and target traces are quickly captured, stored, and conducted.
?Quickly identify localized RF energy transmissions and generate signal lists
?Spectrogram (Waterfall) display generates Spectrogram of receiver traces over time
?Built in demodulators: AM, WFM, NFM, subcarrier, and video (displayed on screen)
