| Item Type: | Ceiling Lights |
|---|---|
| Light Source: | LED |
| Model Number: | 9023 |
| Brand Name: | ristar |
| Place of Origin: | China (Mainland) |
| IP Rating: | IP54 |
| Working Lifetime(Hour): | 30000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | Warm White |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 75 |
| Lamp Luminous Flux(lm): | 1500 |
| Lamp Power(W): | 20 |
| Input Voltage(V): | AC220-240 |
| Install Style: | Surface Mounted |
| LED Light Source: | SMD2835 |
Quick Details
Specifications
Main Advantages:
LED Ceiling Light
RSD-9023

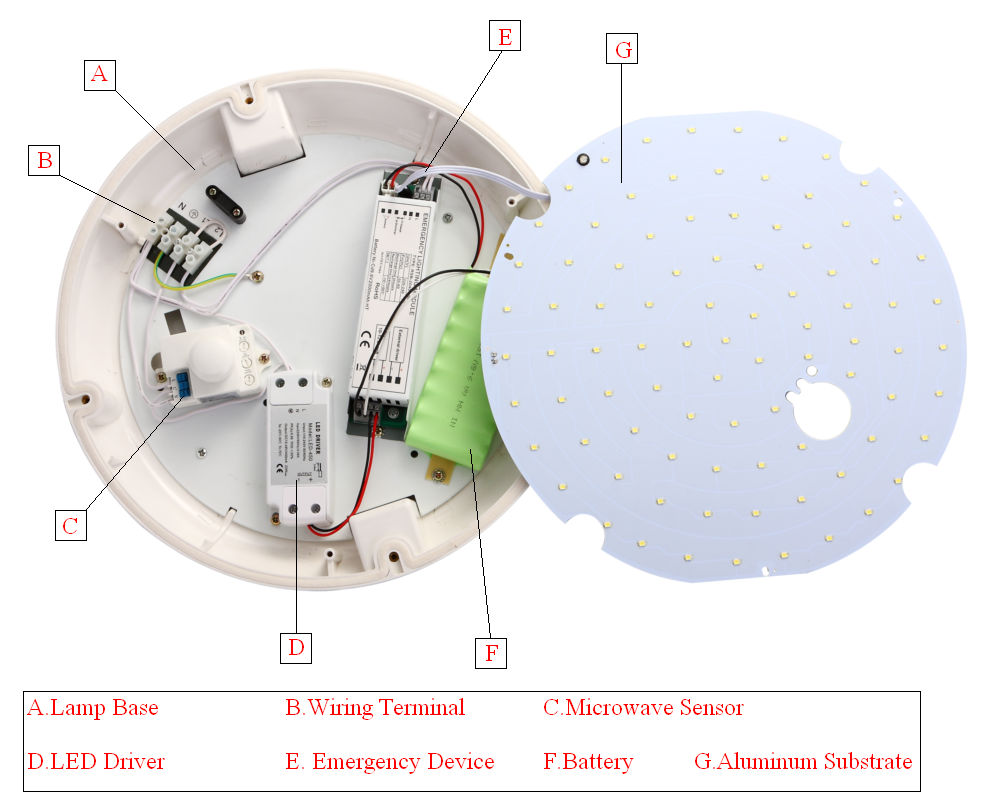

Ristar ceiling light adopts high lumen SMD2835 LED,high light transmission polycarbonate diffuser with even light output..
High PF LED driver,Microwave Sensor(MS) and Emergency Version(EM) both available
IP54 waterproof structural design,ideal replacement for halogen in damp locations.
Life expectancy up to 30,000 hours,with 2 years warranty.
CCT changeable version available,with triac dimmable funtion.
Application:Suitable for commercial and residential applications like office,school,supermarket,
Hotel,workshop,warehouse,home etc.
*Battery Type for Emergency Version:6.4V 18650 Li
Technical details:
Model Voltage Power Lumen Sensor Battery LED Q'ty (pcs)
RSD-9023S-** AC220-240V 15 1150 -- -- *
RSD-9023S-**MS AC220-240V 15 1150 Yes -- *
RSD-9023S-**EM AC220-240V 15 1150 -- Yes *
RSD-9023S-**EMMS AC220-240V 15 1150 Yes Yes *
RSD-9023M-** AC220-240V 20 1500 -- -- *
RSD-9023M-**MS AC220-240V 20 1500 Yes -- *
RSD-9023M-**EM AC220-240V 20 1500 -- Yes *
RSD-9023M-**EMMS AC220-240V 20 1500 Yes Yes *
RSD-9023L-** AC220-240V 25/30 1800/2300 -- -- *
RSD-9023L-**MS AC220-240V 25/30 1800/2300 Yes -- *
RSD-9023L-**EM AC220-240V 25/30 1800/2300 -- Yes *
RSD-9023L-**EMMS AC220-240V 25/30 1800/2300 Yes Yes *
_______________________________________________________________________________
Base-Cover Dimension Net Weight Carton Size Q'ty/CTN
(mm)A*B (kg) (mm) (pcs)
PC-PC Φ250*55 * * *
PC-PC Φ250*55 * * *
PC-PC Φ250*55 * * *
PC-PC Φ250*55 * * *
PC-PC Φ300*60 * * *
PC-PC Φ300*60 * * *
PC-PC Φ300*60 * * *
PC-PC Φ300*60 * * *
PC-PC Φ350*65 * * *
PC-PC Φ350*65 * * *
PC-PC Φ350*65 * * *
PC-PC Φ350*65 * * *
New product finished design,* means undetermined.
Please waiting for updated!
