Applications

LCD TV, LED display, Bluetooth products, digital photo frame, massage equipment, security products, mobile hard disk box, communication products

Product characteristics

• Excellent insulating property, high-frequency transformer use 100% vacuum impregnation
• Full load high temperature burning machine, products with 100% burn-in test, low fraction defective

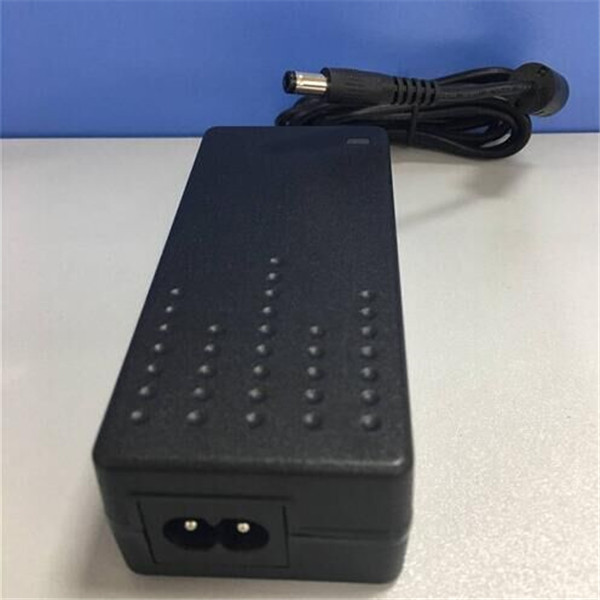

• Input structures: Y style, 8 style, cross style (moisture-proof, dust-proof)
• Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE
• Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
• Customization: EU standard, American standard, British standard, Australia standard, Korean standards, Chinese standard.

Electrical characteristics

• Input voltage:  100-240V AC (90-264V AC)
• No-load power consumption: <0.3W max
• Output voltage: DC 12.0-30.0V
• Output power: 0-60W
• Ripple & noises: <200mV max
• Lightning surge: up to 1KV (3KV accepted)
• Common specification: DC 12V/4.0A, 24V/2.0A, 12V/5.0A, 24V/2.5A

Output protections

• Short-circuit protection
• over-voltage protection
• over-current protection
• Overload protection
• over-temperature protection

Environmental characteristics

• Hi-pot test: 3750VAC 60s 5mA max.
• Insulation resistance: 100M Ω min.
• Leakage current: 0.25mA max.
• Operating temperature: 0-40℃
• Storage humidity: 5-95% RH
• Burn-in test: rate load, 40±5℃, 4 hours
• EMC standard: EN55022 class B/FCC Part 15 class B EN55024/A1:2001/EN61000
