Model Number: | SF-M8802HD-SDI |
---|---|
Brand Name: | SF-Tech |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Description:

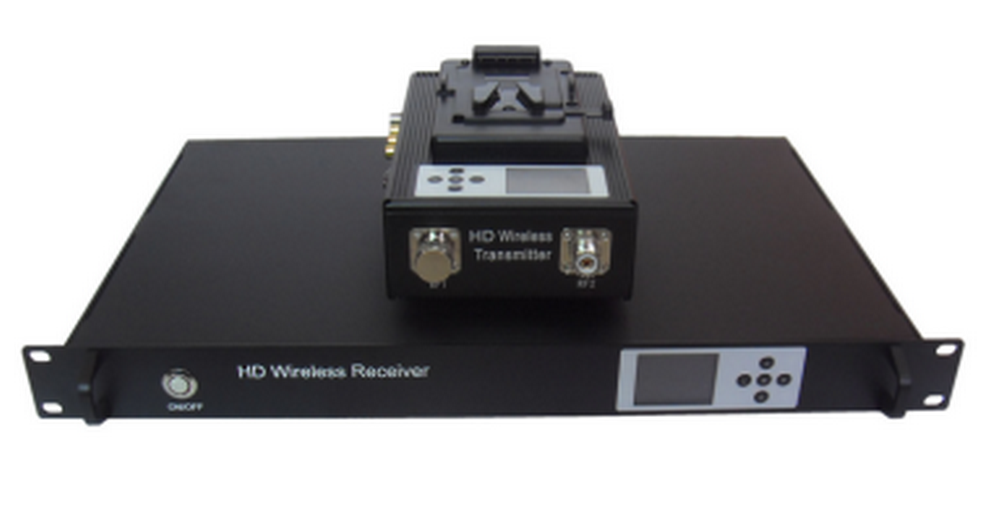

SF-M8802HD-SDI man-portable high-definition wireless real-time transmission system is a new generation of broadcasting high-definition real-time image transmission system. It uses the current leading COFDM modulation technology,has relatively narrow air bandwidth(2/2.5/4/8MHz) and strong anti-multipath interference capability,to overcome the problems of multi-path refection and blocking of images under analog technology and conventional modulation techniques.Realize high-speed shooting and real-time transmission of high-quality images even in non-line-of-sight (non-visual) environment.It's especially suitable used in complex environments; Combined with efficient compression H.264 new digital video coding standards, to achieve full HD HD1080P picture quality, resolution can reach(1920 * 1080 compatible 1080I, 720P, 480P and standard definition).SF-M8802HD-SDI supports digital interface and analog interface, digital audio, video HD-SDI and HDMI input interface, analog audio and video interface CVBS composite Input. Has high quality pictures, excellent fineness, rich color regulation ability and other high-definition quality features.
Key features:
- Manual double AES encryption
- Equipment comes with LCD LCD panel display parameters, adjust the parameters
- Receiver comes with LCD liquid crystal display signal strength indication
- Working frequency band 2 / 2.5 / 4 / 8MHz LCD adjustable
- Highly Compressed H.264 New Digital Video Coding Standard
- Audio and video interface: digital HD-SDI, HDMI interface and analog CVBS composite input
- Resolution: Full HD HD1080P quality(1920*1080)
- Very short coding delay, end to end cost 300 ms
- Stable transmission under high speed mobile and multipath interference
- Strong NLOS non-line-of-sight transmission capability
- Transmit power: 1 ~ 5W continuously adjustable
- Space diversity reception capability
- Dual antenna reception, signal stability, smooth image
- Light weight, easy to install and use
- Various forms can be customized according to requirements
