Description:

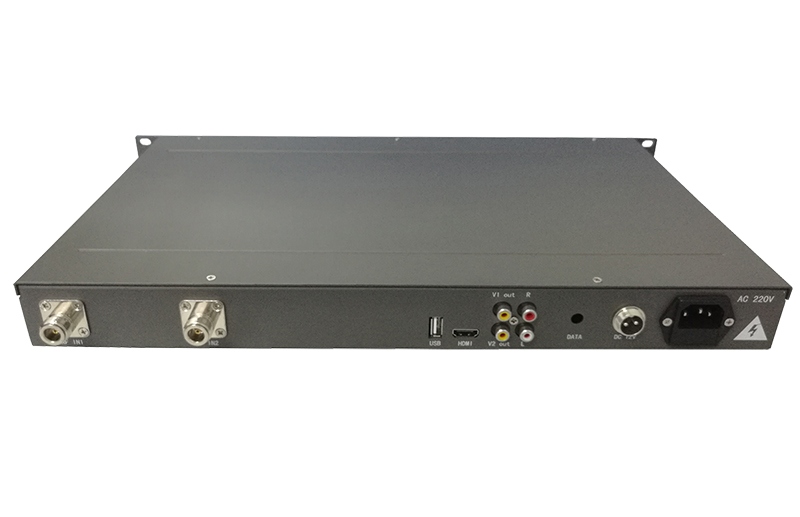

     SF-MR1U800S chassis mobile video receiver is my company's own research and development of digital wireless receiver equipment,works with my company's various models of mobile video transmitter, receives front-end launch of audio and video signals in the back-end real-time display. the device uses a standard machine 1U rack design, can be easily installed in the standard cabinet room. Comes with a display, real-time display front-end transmitter signal strength, comes with adjustment parameters button, receive signal mobile reliable.
Key features:

1. 1U rack design
2. Simple and efficient control interface
3. Receives wireless signals under high speed or non-line-of-sight conditions for remote video transmission and monitoring
4. Wireless channel encryption using AES128 bit

Detail
Receiving frequency range	170-860MHz VHF&UHF
Frequency bandwidth	2/4/8MHz, optional
RF input level	-94dBm~-15dBm(8M bandwidth)/-98dBm~-15dBm(2M bandwidth)
RF input resistance	50 ohm
RF input connector	N type
Demodulation method	COFDM
Constellation mode	QPSK, 16QAM, 64QAM(optional)
Forward error correction	1/2,2/3,3/4,5/6,7/8(optional)
Number of carriers	2k,
Protection interval	1/32,1/16,1/8,1/4(optional)
Video decoding	MPEG-2MP@ML
Screen aspect ratio	4:3 16:9
Output Interface	HDMI.BNC SD
Video image	1920*1080P@8MHz 720*576@8MHz
Audio output mode	Stereo unbalanced 300/ 200mv
Audio output	2Audio output+2Video output
Operating Voltage	AC220V/DC12V ＜2A
Operating temperature	-20℃～+50℃
Physical  dimension	480*260*45(1U)chassis
Weight	2.5kg
