| Model Number: | HTB8008 |
|---|---|
| Brand Name: | Holight |
| Place of Origin: | China (Mainland) |
| Type: | Optical Fiber Distribution Box |
| Certification: | ISO, RoHS |
| MOQ Demand: | No Demand |
| Max Capacity: | 4 Core |
Quick Details
Specifications
the following example is for you reference.
Description:

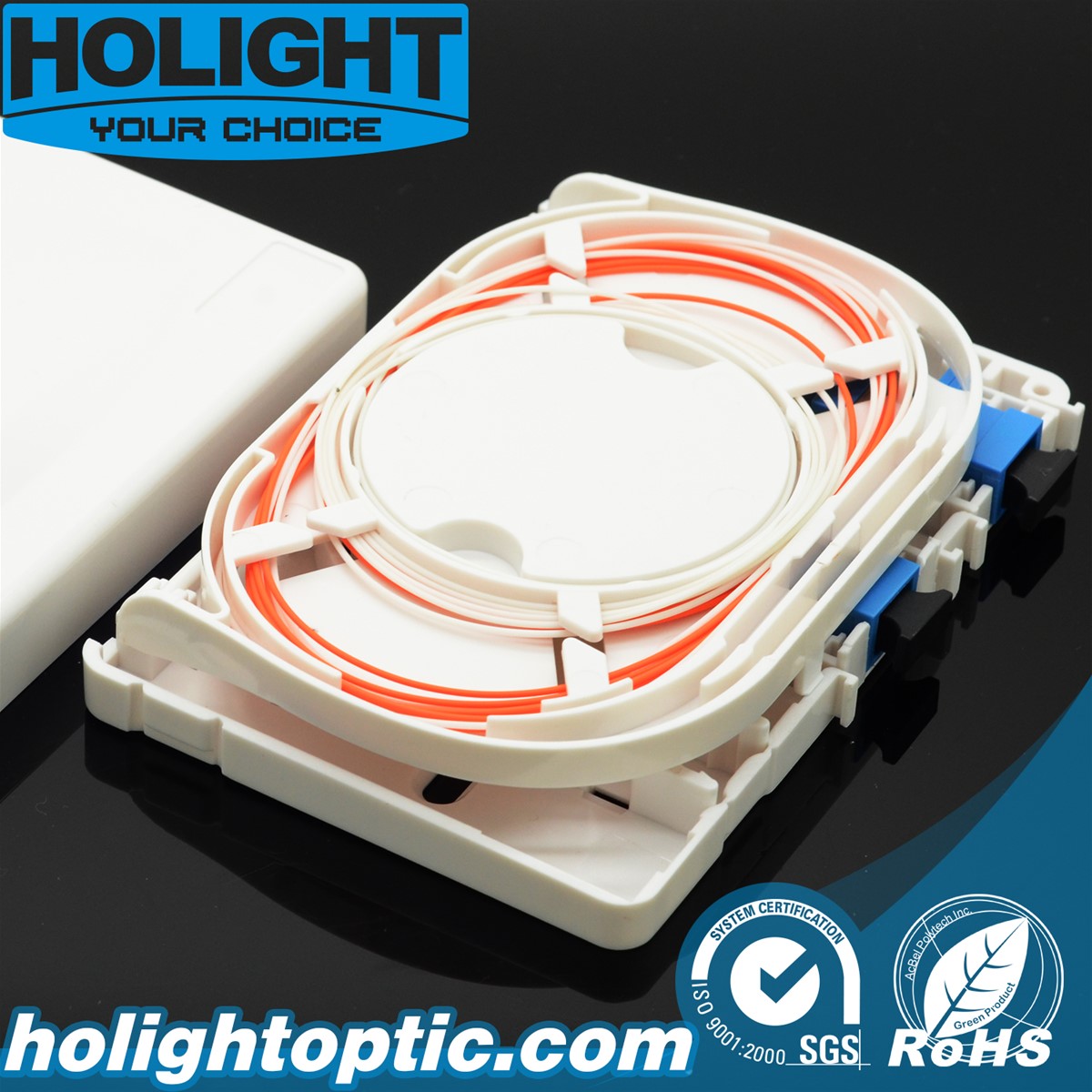

HTB8008(formerly known as Termination Box 2-4C) is designed for use in residential and business applications for the termination of up to four fibers. the wall box enables the installation of either a single Blown Tube cable using up to a 4 fiber blown unit or two 2 fiber ruggedised cables to be spliced to four SC pigtails (PC or APC), which connect to adapters at the base of the unit.
the unit can be quickly installed within an office, house or communication room environment.
Features:
· Ergonomic design.
· Ability to allow cables to enter from rear or bottom of the unit.
· All fibres are positively managed to maintain a 30mm minimum bend radius.
· Optional Removable rear entry cable management.
· Flip tray to allow access to connectorised tails and cable entry.
· Removable cover for easy access.
· Tamperproof cover security screws available as an option.
· Unit manufactured from fire resistant UL94-V0 rated material.
· Patchcords exit unit on bottom face and are protected by two protection covers.
· Standard colour white. Other colours available on request.
Package:
1PC/Box
