Please let us know, which voltage do you need? 110V or 220V

Electric leakage Switch Requirement: 40A - 60 A or more than 60A

Scope of application

Weld lead wire of different kinds of rechargeable batteries Rapidly.

the production, installation and welding to lithium Battery and mobile power.

Weld lead wire of hardware and wire.

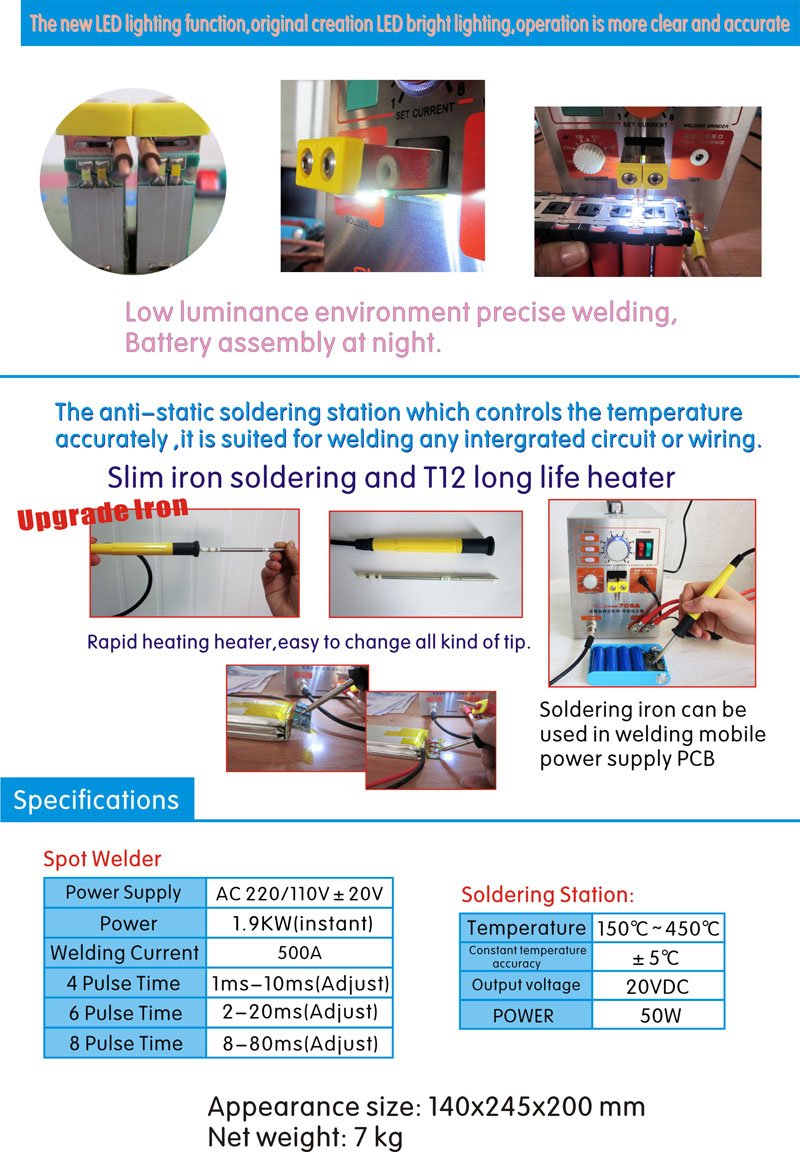

SpotWelder part:

supplyVoltage	AC110V/220V
Power	1.9KW(Instantaneous)
Current	500A
Time of2 pulse	1-10ms(adjustable)
Time of 4 pulse	2-20ms(adjustable)
Time of 8 pulse	8-80ms(adjustable)

Solering part:

Temperature	150-450℃
Power	50W
Output voltage	20VDC

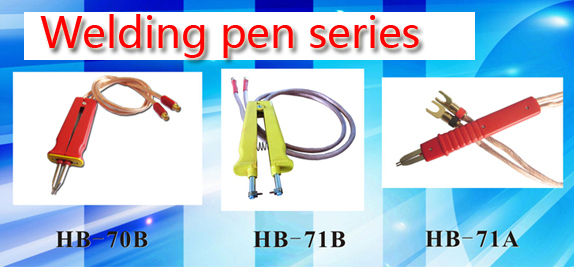

You can select welding pen to work with 709A.
It is different price to 709A with different welding pen.

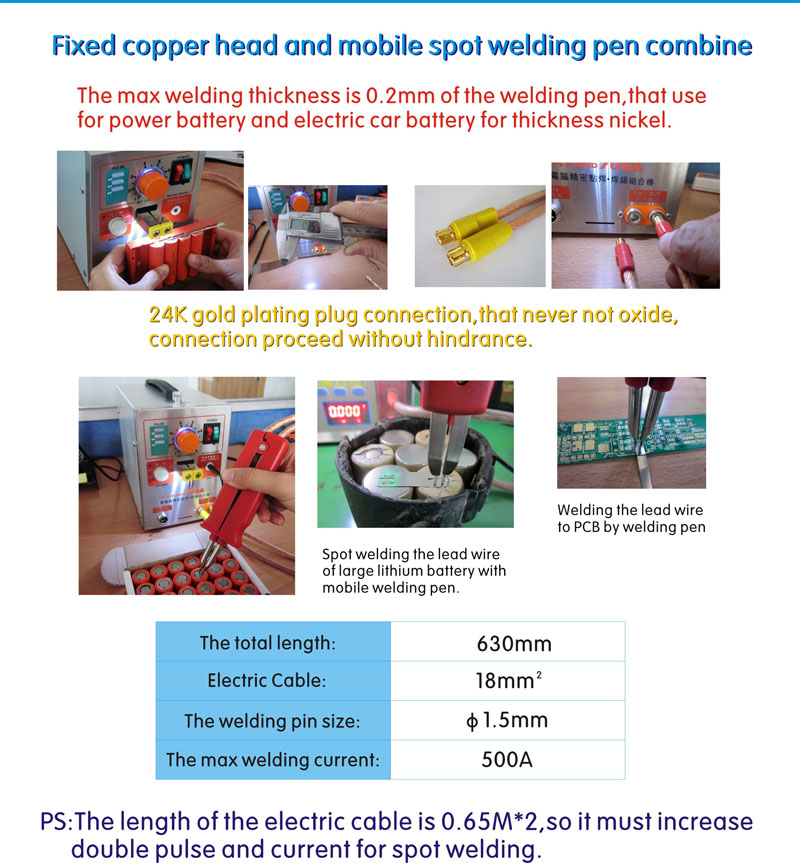

Welding thickness:  the welding pen can be replaced to 70B/71A/71B

the welding thickness of copper head	0.1-0.3mm
the welding tHickness of 70B/71A welding pen	0.1-0.2mm
the welding thickness of 71B Welding pen	0.1-0.3mm

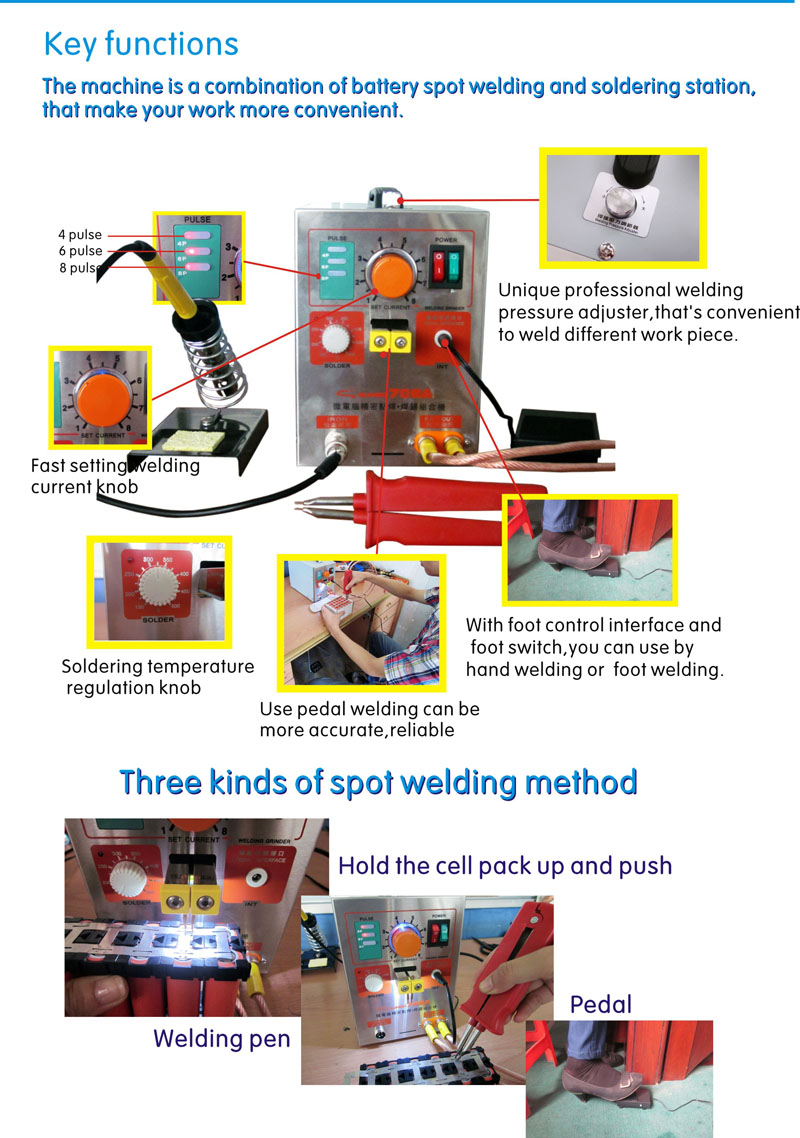

Features:

1. the machine is combination of battery spot welding and circuit board solder, that make you work more convenience.

2. Fixed spot-welding head and mobile spot-welding pen are combined together in one machine so that the welding will become flexible.

3. Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.

4.Possess welding current rapid regulator,Selecting the current will become quick and efficient.

5.the anti-static soldering station which controls the temperature accurately, it is suited for welding any integrated circuit or wiring.

6.the removable footswitches can satisfy the welding position requirement or sophisticated technology.

7.the fixed spot-welding head has pressure regulating device which makes the solder connections more stable.
