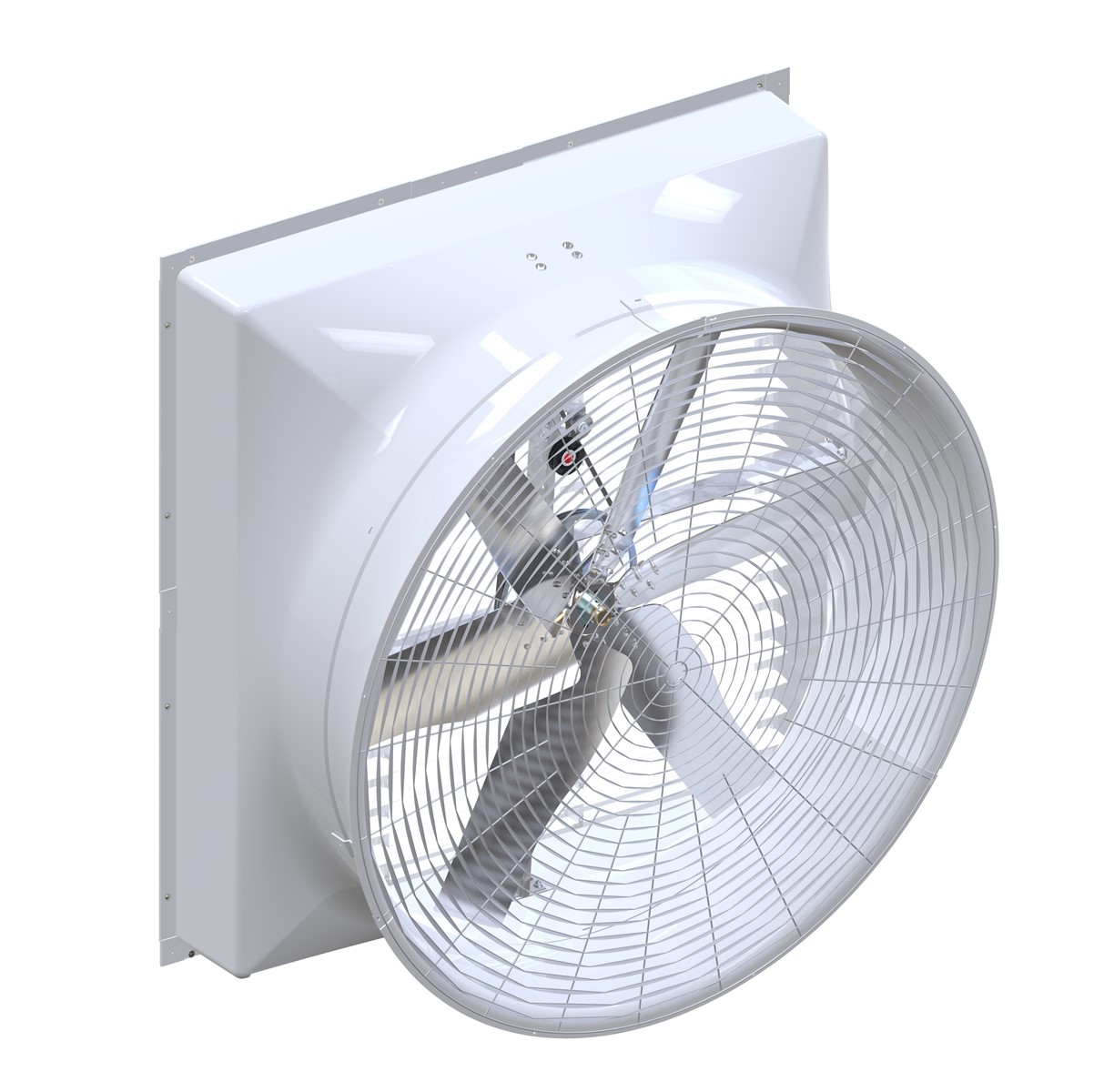

Exhaust fan GF Series
Our components are designed to cover all aspects of a good ventilation system. the GFRP line is a high output and high efficient fiberglass exhaust fan.
GFRP products use high quality components and precise engineering to create a simple, high quality fan with optimal performance at the best price.

Hot sale 55" FRP Wall Fan Portable Ventilation for Swine Barn

FEATURES
Motor and propeller
Blade is 6 paddle
Standard motors are totally enclosed, high efficiency
All motors are designed and rated for years of trouble free operation
Each motor is individually tested for 100% quality control
Maintenance free motor.
Heavy duty casting pulley and hub
1 cog belt type XPA high efficiency
Motor base quick attach.
Motors with certification available CSA, UL, CE and CCC.
Housing
Corrosion resistant fiber composite housing.
Fiber composite molded impact resistant with U.V. Protection for better durability, and life
Extra liner fiber composite resin inside for easy cleaning and minimal dirt and disease
Build-up and maximum air flow
Flush mount design eliminates any protrusions or obstructions in the inside area
Self draining sloped housing is quick and easy to clean
Color, white or customer request if order quantity can meet MOQ.
Fiber composite molded has smooth shape and low air restriction
Shutter
Shutter with PVC extrusion frame
All corners inside shutter have extra stainless steel corner
PVC louver with T bar
Wire by pass
Easy clip to remove shutter
Guard
Heavy gauge Zinc galvanized steel + powder coating guard
Spiale design for high strength.
OTHERS
Stainless steel hardware
Every fan is individually checked and tested after assemble for total quality shipment
Shipped fully assembled, except cone and guard
OPTION
Option thermally protection inside the motor.
Option OSHA safety guard
Shutter with aluminum? Extrusion frame
Winter board inserts
Optional variable frequency drive.
S.S motor base and post
S.S # 304 guard
Available with a piece of long cone.
PACKING

ITEM	Product size(m)	Package size (m)	N.W KGS	G.W KGS	Qtty/Pallet	Qtty/40'HQ	Qtty/20'F
GF-55"	2.24*1.64*0.126	2.3*1.69*2.49	97	107	5	35	16
GF-50"	2.23*1.48*0.126	2.3*1.53*2.25	65	81	6	45	20
GF-36"	2.27*1.22*0.126	2.3*1.25*2.44	52	55.75	10	90	42

APPLICATIONS
Exhaust ventilation in Dairy, Poultry, Swine, Greenhouse and industrial application.

TECHNICAL DATA

Model

Power

VOLTS

AMPS

Hz

RPM

0.00"SP

0.04"SP

0.10"SP

0.12"SP

0.20"SP

AMCA Report

HP

KW

CFM

CFM/ watt

CFM

CFM/ watt

CFM

CFM/ watt

CFM

CFM/ watt

CFM

CFM/ watt

GFRP 55

1-1/2

1.1

230/460

4.2/2.1

60

389

25007

25.3

24044

23.3

22623

20.6

22117

19.7

19552

16.5

32716-A3
