| Brand Name: | Autorun |
|---|---|
| Model Number: | ODL/OHQ series |
| Port Size: | 1/2"-4" |
| Temperature of Media: | Medium Temperature |
| Material: | Alloy |
| Power: | Solenoid |
| Pressure: | Medium Pressure |
| Structure: | Butterfly |
| Standard or Nonstandard: | Standard |
Quick Details
Specifications
PRODUCT DETAILSDescription:

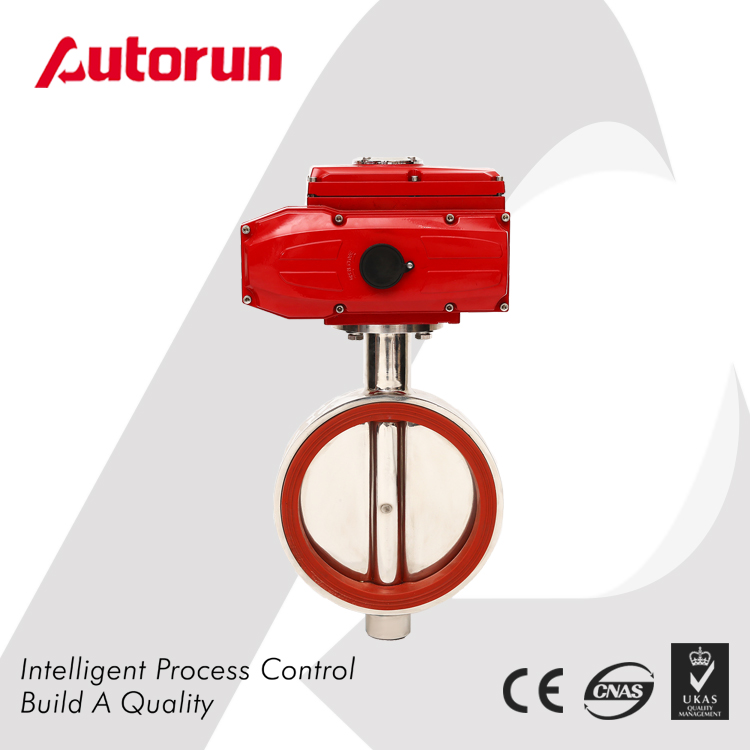

Model: WD971X-10P
W: Sanitary grade
D: Butterfly valve
9: Electric actuator operated
7: Wafer connection
1: Centric linear structure
X: Rubber seat
10: Nominal pressure max. 10 bar
P: Stainless steel body
Driving device: Electric actuator (on/off type)
Torque range: 7 - 2000N.M
Rotary angle: 0 - 90°; 0 - 270°
Ambient temperature: -30°C ~ +60°C
Working pressure: 0 - 4.0MPa
Open/close time: 7 - 100S
Number of wires: 2 - 7
Actuator body: Aluminum alloy
Protection class: IP67, IP68
Power supply: 24VDC, 110VAC, 220VAC, 380VAC; 50/60Hz
Control signal (for modulating type): 4-20mA or 0-10V DC
Technical Data
Model: WD971X-10P
W: Sanitary grade
D: Butterfly valve
9: Electric actuator operated
7: Wafer connection
1: Centric linear structure
X: Rubber seat
10: Nominal pressure max. 10 bar
P: Stainless steel body
Driving device: Electric actuator (on/off type)
Torque range: 7 - 2000N.M
Rotary angle: 0 - 90°; 0 - 270°
Ambient temperature: -30°C ~ +60°C
Working pressure: 0 - 4.0MPa
Open/close time: 7 - 100S
Number of wires: 2 - 7
Actuator body: Aluminum alloy
Protection class: IP67, IP68
Power supply: 24VDC, 110VAC, 220VAC, 380VAC; 50/60Hz
Control signal (for modulating type): 4-20mA or 0-10V DC
Technical Data
| Nominal diameter | 25 - 150mm |
| Nominal pressure | 1.0MPa |
| Temperature | -30°C ~ +120°C(EPDM); -30°C ~ +80°C(NBR) |
| Connection | Wafer |
| Body material | 304, 316, 316L |
| Disc material | 304, 316, 316L |
| Seal material | EPDM, FPM, NBR |
| Stem | 304, 316, 316L |
| Packing | PTFE, FPM, Silicon rubber |
| Medium | Food, Beverage, Brewery, Pharmaceutical, Cosmetic and Chemical, etc. |
