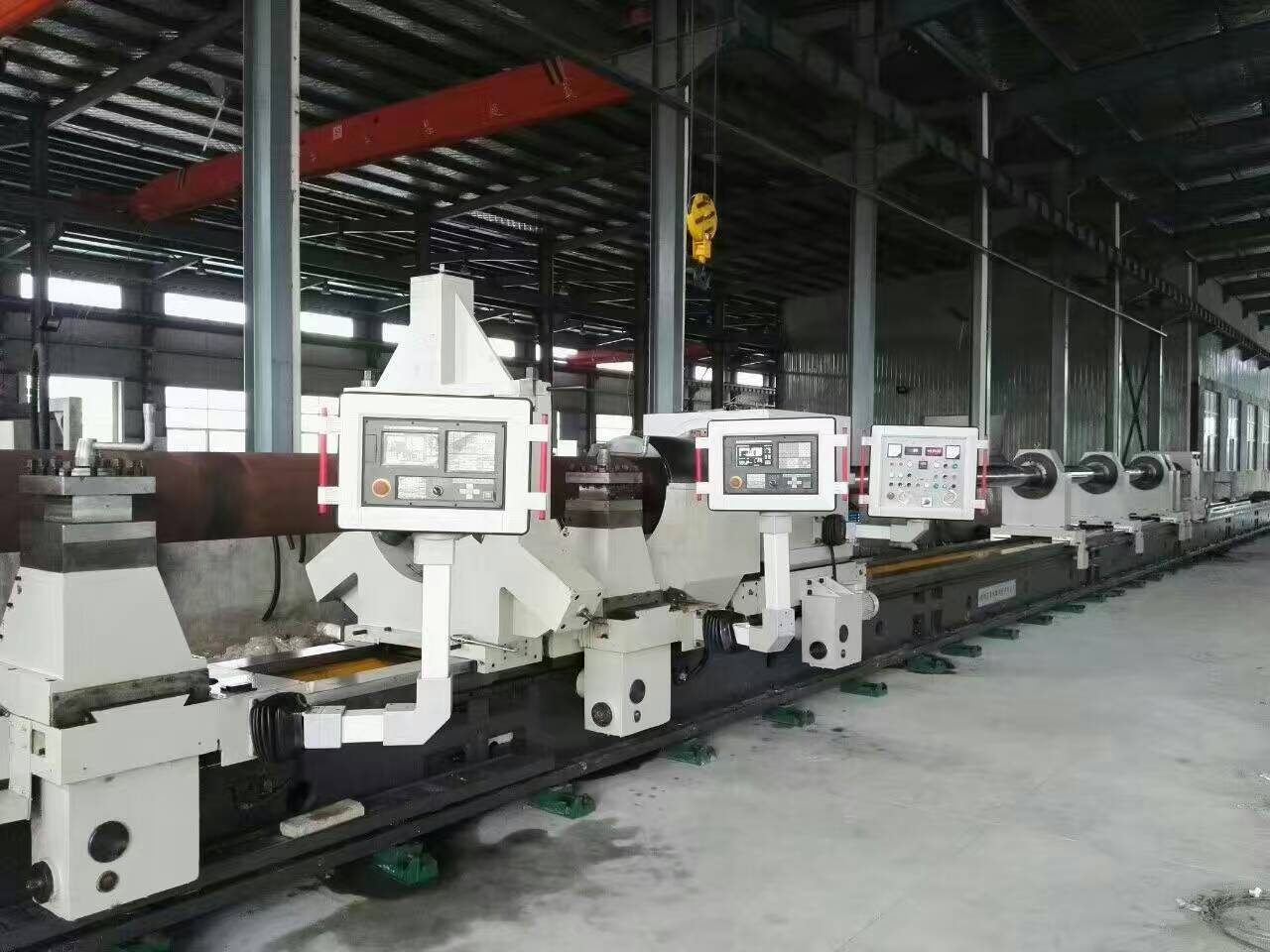

Technical data of TSK2163C X12  deep hole turning boring machine

2.1 Boring dia    50 - 630mm

2.2 Drilling dia ------—50 - 120mm

2.3 Boring depth -------—12000mm

2.4 Length of job--------12000mm

2.5 Trepanning dia------—140 - 340mm

2.6 Chuck dia of job-----    100 - 800mm

2.7 Dia of steady rest  -----100 -800mm

2.8  dia of job support-----  100 - 800mm

2.9  Maximum turning dia ----—  800mm

2.8  load bearing ---------10t

Headstock

2.9 Center of height spindle------630mm

2.10 Spindle bore     -------—120mm

2.11 Spindle taper hole    ----—140mm   1:20

2.12  speed of spindle --16 -270r/min; 12 shifts

Drill box

1.    center of height spindl------—630mm

2.    spindle Bore    ------—100mm

3.    spindle taper hole     ----—120mm 1:20

4.    speed of spindle ----—82 -490r/min; 12 Steps

Feed System

2.14 Feed speed -----5 -500mm/min;infinite

2.15 Rapid speed ------- 2m/min

Motors

5.    main Motor-------45kW

6.    Drill Motor   ------30kW
