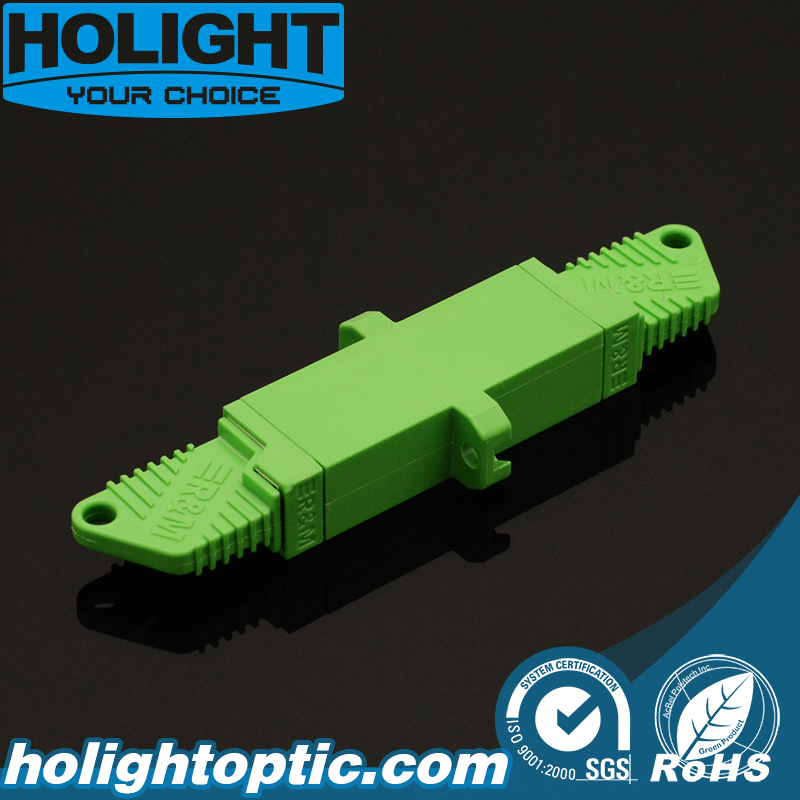

| Model Number: | AD0610000N |
|---|---|
| Brand Name: | Holight |
| Place of Origin: | China (Mainland) |
| Type: | Adaptor |
| Certification: | ISO, RoHS |
| Insertion Loss: | Lower Than 0.2dB |
| MOQ: | No Demand |
Quick Details
Specifications
APPLICATIONS:
· CATV networks
· LAN
· Fiber optic transmission system
· Testing/Measurement Instruments
· Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
Feature:
· with excellent handling at high packing density
· Bulkhead adaptor
· Self-retentive mechanism enables
· Low the ferrules compression force off the back panel
Specification:
| Parameter | Unit | E2000 | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
Package:
10PCS/Bag
