| Model Number: | NTI-SML-X |
|---|---|
| Brand Name: | NO |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

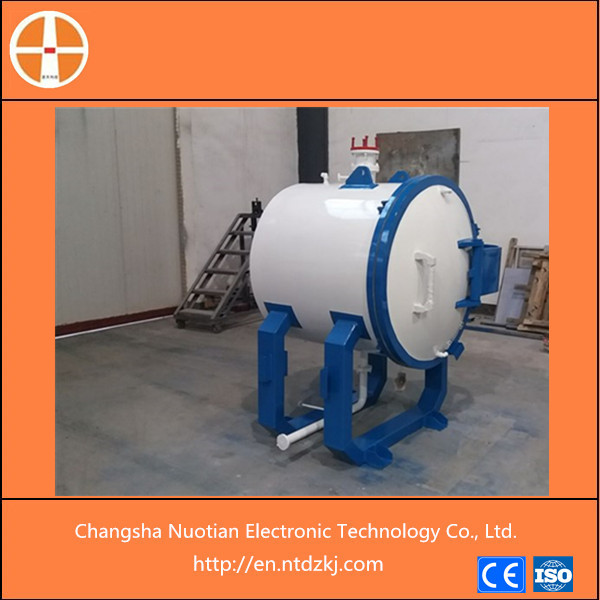

Horizontal HT graphitization furnace
I. Application
Graphitizing and sintering carbon materials.Sintering carbon fiber Line,contact materials,fine ceramics,high-temperature components.High temperature dealing with battery negative electrode materials and graphite powder.
II.Configuration:
380V±10%, 50Hz/60Hz 3 phase 5 wire
1 to 1,1 to 2 or 1 to 4 for choosing.
III.Technology parameter:
type Items |
NTG-SML-150W |
NTG-SML-200W |
NTG-SML-250W |
NTG-SML-350W |
NTG-SML-500W |
NTG-SML-700W | ||||||||
|
mm |
300×300×600 |
350×350×800 |
450×450×900 |
520×520×1600 |
600×600×1600 |
800×800×2000 | |||||||
Heating type |
/ |
IF induction heating | ||||||||||||
High tem.Area |
L |
54 |
98 |
182 |
432 |
576 |
1280 | |||||||
Capacity |
g |
high tem.Area*product'S density (g/cm3)×1000 Tip: 1L=1000cm3 | ||||||||||||
Power supply |
Kw |
150 |
200 |
250 |
350 |
500 |
700 | |||||||
Max temperature |
℃ |
3000 |
3000 |
3000 |
2900 |
2900 |
2900 | |||||||
Working temperature |
℃ |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 | |||||||
Tem.Uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±15 |
±15 | |||||||
Working environment |
/ |
Vacuum orAr, N2(Micro-positive pressure) | ||||||||||||
