the following example is for you reference.
Features:

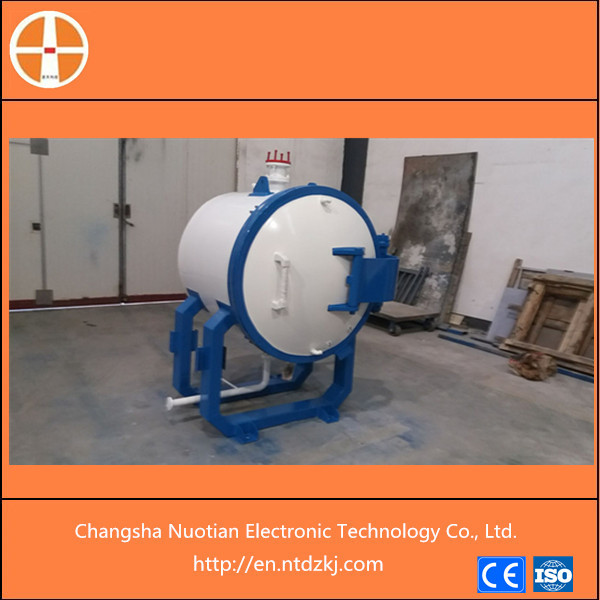

Butch type induction heating furnace,for carbonizing PI film, graphite materials and carbon materials
Technical details:
Model Name |
NTG-THL-50W |
NTG-THL-105W |
NTG-THL-120W |
NTG-THL-135W |
NTG-THL-189W |
NTG-THL-300/500W | |
High tem.Area |
mm |
300×300×600 |
450×450×1200 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
(600-800)×(600-800)×(2000-4000) |
Heating type |
/ |
Cage type graphite rod heating | |||||
Working size |
L |
54 |
243 |
300 |
400 |
720 |
720+N |
Capacity |
g |
High tem.Area*product'S density (g/cm3)×1000 Tip: 1L=1000cm3 | |||||
Supply Power |
Kw |
50 |
105 |
120 |
135 |
189 |
189-500 |
Heating area amount |
area |
1 |
3 |
3 |
3 |
3 |
3-6 |
Max temperature |
℃ |
1600 |
1600 |
1600 |
1600 |
1600 |
1600 |
Working temperature |
℃ |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
Tem.Uniformity |
℃ |
±5 |
±5 |
±5 |
±5 |
±5 |
±10 |
Working enenvironment |
/ |
Vacuum or Ar, N2(mirco-positive pressure) | |||||
