| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1year |
| Certification: | IS/CE |
| Weight: | 2-5tons |
| Dimension(L*W*H): | custom made |
| Power(W): | 50-500 |
| Voltage: | 380 |
| Place of Origin: | China (Mainland) |
| Usage: | Heat Treatment Furnace |
| Type: | Resistance Furnace |
| Condition: | New |
Quick Details
Specifications
the following example is for you reference.
Features:
Butch type induction heating furnace,for carbonizing PI film, graphite materials and carbon materials.

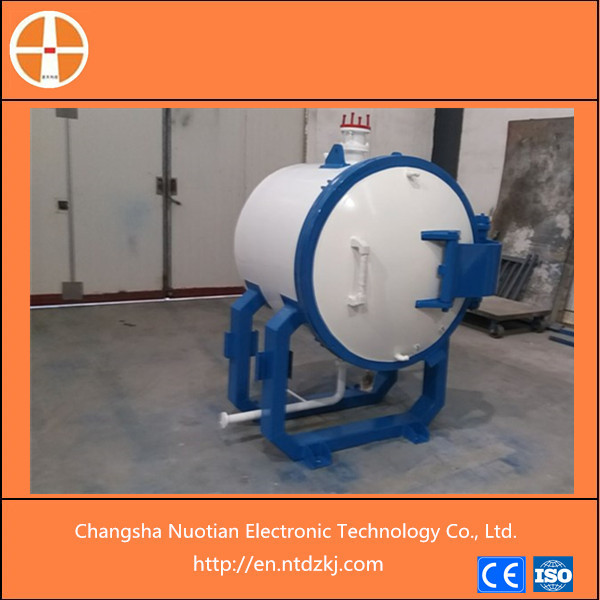

Horizontal carbonization furnace:
item model NTI-THL-54W NTI-THL-243W NTI-THL-300W NTI-THL-400W NTI-THL-720W NTI-THL-(720-4000)W Working size mm 300×300×600 450×450×1200 500×500×1200 500×500×1600 600×600×2000 (600-1000)*(600-1000)*(2M-4M) Heating type / Graphite rod heating(cage type) Max.Capacity L 54 240 300 400 720 720-4000 Loading capacity g HT area capacity×Product'S density(g/cm3)×1000 1L=1000cm3 Input voltage / 380V±10%, 50Hz/60Hz 3 phase 5 wire Equipment stucture / One power to one furnace Furnace body type / Hotizontal power Kw 50 105 120 135 189 300-500 Heating area amount / 1 3 3 3 3 3-6 Max. Temperature ℃ 1600 1600 1600 1600 1600 1600 Working tem. ℃ 1500 1500 1500 1500 1500 1500 Tem.Uniformity ℃ ±5 ±5 ±5 5 ±5 ±10 Working environment / Vacuum orAr, N2 Atmospher environment (micro-positive pressure)
(L×W×H)
