1.Brief Introduction:

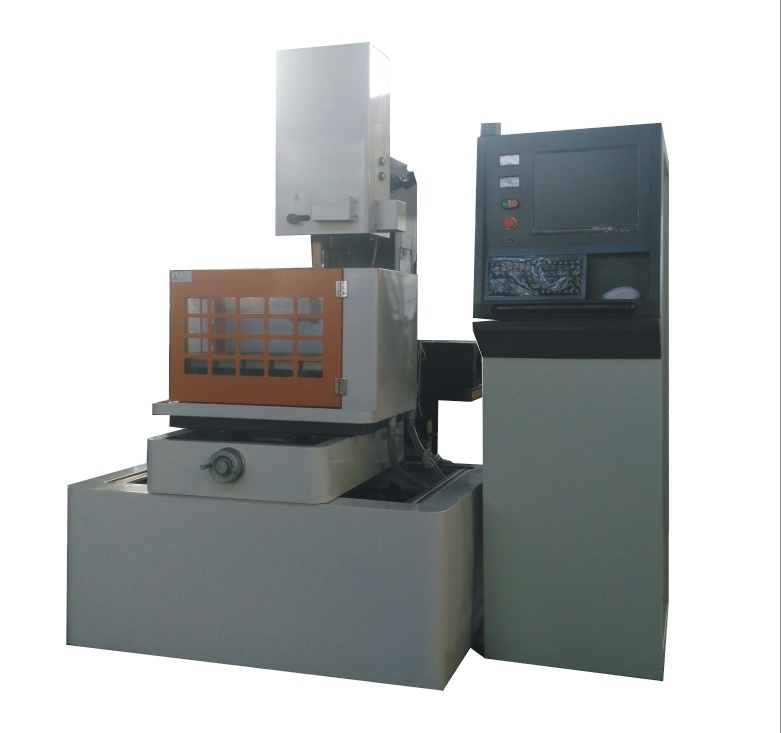

CNC Wire Cutting EDM Machine Major Feature of DK77 serial CNC EDM wire-cutting machine:

Lies in that it has no special requirement to the processed metal material properties. in principle, it can process all the conductive materials such as super-hard and hard alloy, quenching materials, stainless steel ductile materials, various magnet steel fragile materials, uneasily-clamped thin wall spares etc. Main use: It can process various molds such as rubber and plastic molds, punch die and so on. It can be used for the special materials of fragile materials, stainless steel ductile materials, super-hard materials. and the complex-shape spares such as the tapered upper, lower specially-shaped spares, etc, also can be machined





2.Techincal parameters:

Parameters	Unit	DK7732S
Table Size (LxW)	mm	600×460
Table Travel (XxY)	mm	320×400
Max. Cut Height	mm	300
Max. Cut Taper	Degree/mm	±3°/80
Max. Speed	mm2/min	160
PrecisioCut n (Octagon)	mm	<±0.0075
Max. Current	A	8
Roughness (Multi-Cut)	um	< 1.0
Wire Diameter	mm	0.15-0.20
Wire Speed	m/min	4-11
Table Load	kg	500kg
Working Solution		NG-1Emulsifyingsoap/JARA-2
Water Tank	L	60
Voltage		3N-380V/50Hz
Rated Power	KVA	1.5
Wire Frame		Adjustable
Dimension (LxWxH)	mm	1550×1150×1450
Machine Weight	T	1.5
Controller	HF/Autocut

 3.Performance features:

1) Program input by keyboard and auto-programmer;

2) Control functions: Any angle rotation, axis symmetry, graph expansion and shrinkage, rtreat, returning the starting point, auto-centering and auto shutoff of facilities after process completion;

3) Man program storage: 2000 sections;

4) Short circuit treatment: Auto-retreat up to the elimination of short circuit;

5) Wire breakage treatment: Stop and return to the starting point;

6) Quick check the error of program reset;

7) Have memory of closing electrical power, resume processing the function after connecting the electricity;

8) Parallel work: Input program while processing.

9). with guard for environmental protection, two fax inside the guard which can absorb and emit the dirty air to the outside.

10) More safe to operation.
