| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO CE SGS |
| Weight: | 4ton |
| Dimension(L*W*H): | 12m*2m*2.5m |
| Power(W): | 20KW |
| Voltage: | 380V 50HZ 3Phase(Customized) |
| Model Number: | LSJ |
| Brand Name: | Tongsan |
| Place of Origin: | China (Mainland) |
| Automatic Grade: | PLC |
| Screw Design: | Single-screw |
| Application: | Pipe |
| Condition: | New |
| name: | single wall corrugated pipe making machine |
| Warranty: | 1 year |
| Inverter: | ABB |
| Contactor: | Schneider |
Quick Details
Specifications
1. Brief Introduction of PP PE PVC EVA single wall Corrugated pipe making machine

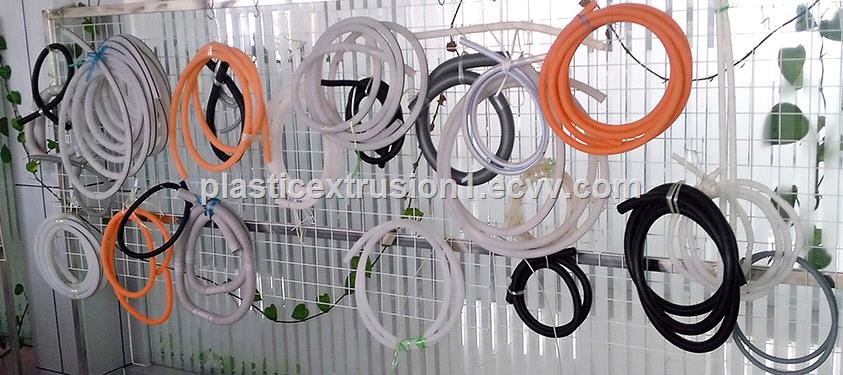

this Plastic Single Wall Corrugated Pipe Making Machine made by Qingdao Tongsan Plastic Machinery Company is used to produce PP, PE, PVC, EVA, PA and other Material single-wall corrugated pipes continuously. Plastic single wall Corrugated pipes have features of strong thermo-stability, corrosion Resistance, abrasion resistance, high intensity, good flexibility, etc. They Are widely applied in many fields such as electrical thread-passing pipes, Circuit of machine tool, protective pipe of lamps, water pipes in air Conditioner, washing machine, bathroom, etc.

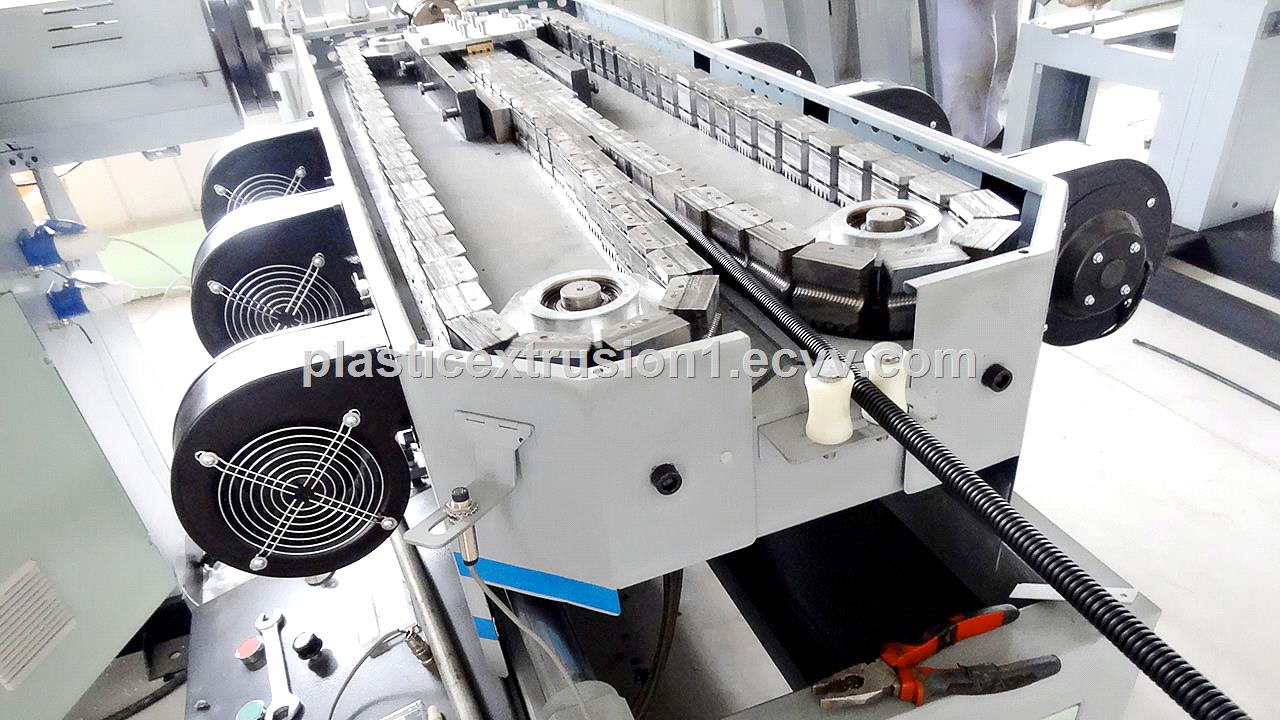

SJDBGZ Sieries single wall corrugated pipe extrusion machine developed by our Company adopts gears to run moulds and templates so as to realize water Circulating cooling and air cooling of the products, which ensures high-speed Molding, even corrugation, smooth inner and outer pipe wall.
2. Consists and features of our PP PE PVC single Wall corrugated extruder machine

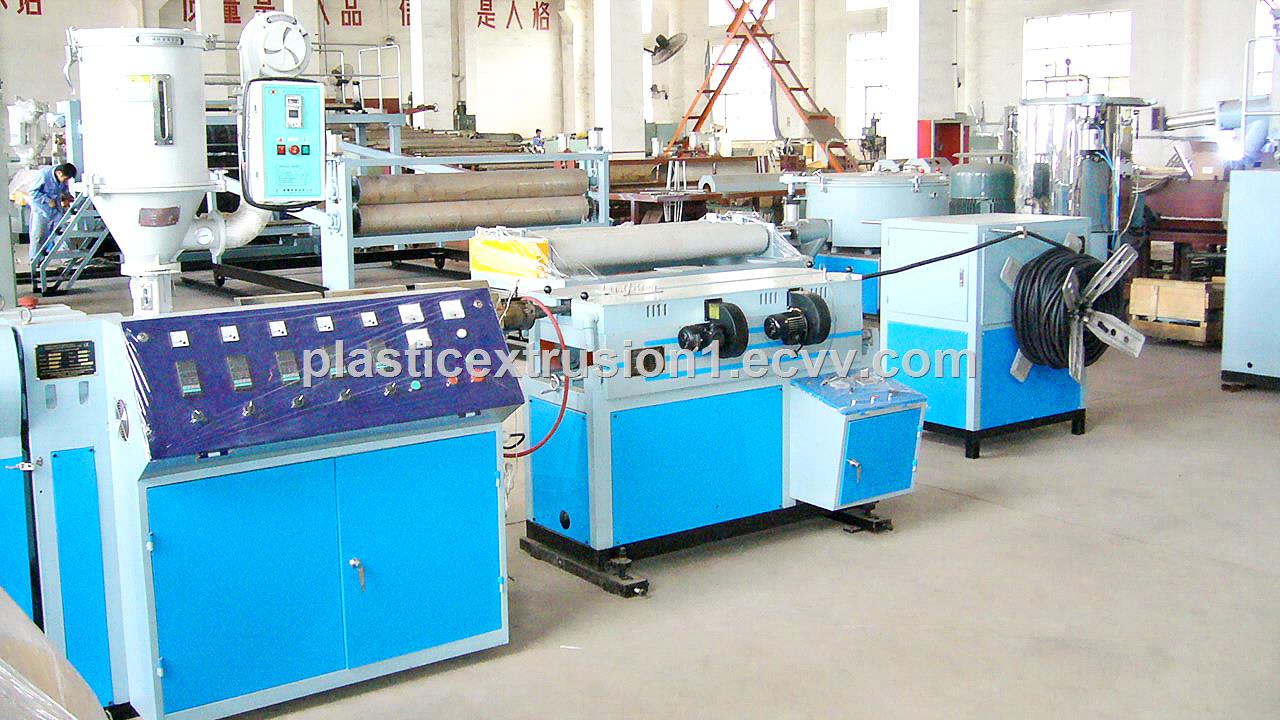

Single Screw extruder-mould-forming machine-winder
Main Features:
1)Use
PE/PVC/PP/PA/EVA material to extrude corrugated pipes for cable lines,
Protective lines and electrical appliances pipe lines and integrated circuit
Lines, etc.
2)Outlook complete and unify, SIEMENS PLC digital control,
3)High-efficiency screw and special design of mould and calibrator make the
Machine performance is more reliable, and the products are more
Stable.
4)Optional Pipe types formation for different usages.
SPECIFICATIONS for Plastic PP PE PVC single wall Corrugated Pipe Extruder Machinery | ||||
Pipe Diameter range |
4.5-9mm |
9-32mm |
16-50mm |
20-100mm |
Extruder Model |
SJ-30 |
SJ-50 |
SJ-65 |
SJ-65 |
R/D |
30:1 |
30:1 |
30:1 |
30:1 |
Extrusion Capacity |
10kg/h |
30kg/h |
50kg/h |
100kg/h |
Main Motor power |
4kw |
15kw |
18.5kw |
37kw |
Formation Machine power |
1.1kw |
1.5kw |
2.2kw |
4kw |
Mould Quantity |
42 |
50 |
50 |
72 |
Cooling Method |
Wind & Water cooling | |||
Production Speed |
6-10m/min |
8-12m/min |
8-12m/min |
6-16m/min |
Coiling Methjod |
Automatically &manually | |||
We are professional manufacturer of all kinds of single Wall corrugated pipe machine, please contact with us freely.
