| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Model Number: | NTI-SML-X |
| Brand Name: | NO |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:

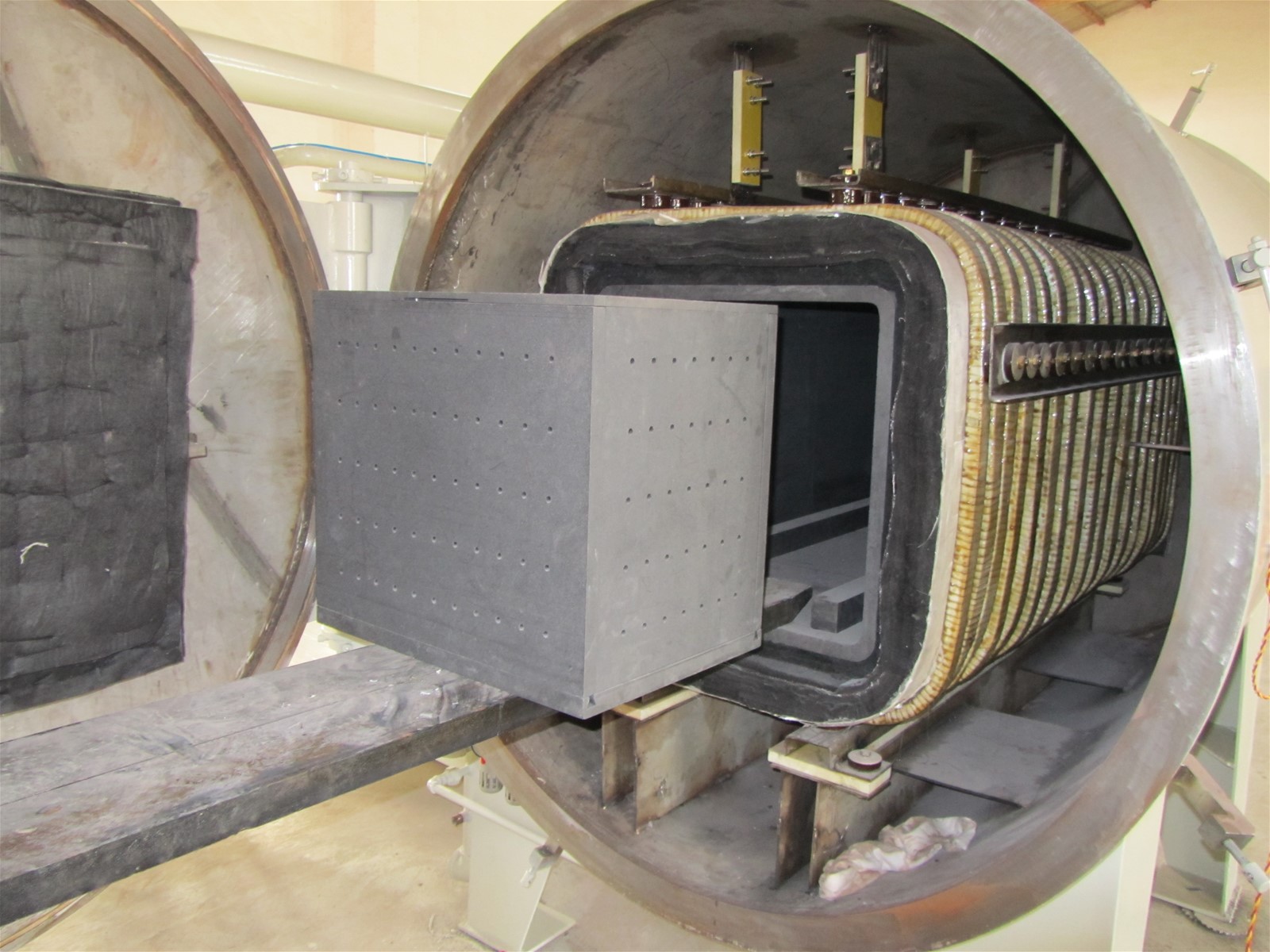

A high performance intelligentize electric furnace of special carbon material field( suitable for other field) is launched by our engineers digested and absorbed foreign advanced temperature measurement, temperature control technology, intelligentize, new materials technology and furnace hearth design technology.
2.Techincal parameters: item model NTI-SML-54W NTI-SML-98W NTI-SML-182W NTI-SML-432W NTI-SML-576W NTI-SML-1280W Working size mm 300×300×600 350×350×800 450×450×900 520×520×1600 600×600×1600 800×800×2000 Heating type / Intermediate frequency induction heating Max.Capacity L 54 98 182 432 576 1280 Loading capacity g HT area capacity×Product'S density(g/cm3)×1000 1L=1000cm3 Input voltage / 380V±10%, 50Hz/60Hz 3 phase 5 wire Equipment stucture / One power to one or two or four furnace Furnace body type / Hotizontal power Kw 150 200 250 350 500 700 Frequency Hz 1500 1000 1000 1000 1000 1000 Max. Temperature ℃ 3000 3000 3000 2900 2900 2900 Working tem. ℃ 2800 2800 2800 2800 2800 2800 Tem.Uniformity ℃ ±10 ±10 ±10 ±15 ±15 Working environment / Vacuum orAr, N2 Atmospher environment (micro-positive pressure)
(L×W×H)
