| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 6 months |
| Certification: | ISO |
| Weight: | 1200kg |
| Dimension(L*W*H): | 2000x900x1600 |
| Power(W): | 26500 |
| Voltage: | 220v |
| Usage: | prospecting/ reilwany/road port/bridge/water conservancy/hydropower |
| Model Number: | XZY-300 |
| Brand Name: | sinocoredrill |
| Place of Origin: | China (Mainland) |
| Power Type: | Diesel |

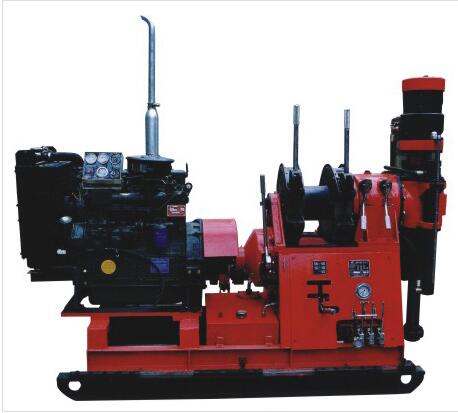

| Type: | Core Drilling Rig |
| Condition: | New |
Quick Details
Specifications
the following example is for you reference.
Features:
Wide range of suitable rotary speed to meet various need.
Common auto parts,such as clutch,
Transmission case and shifting structure
Type |
XZY-300 |
Drilling Depth(mm) |
300 |
Drilling Rod diameter(mm) |
Φ50 |
Head Angle range |
0-360° |
Cylinder Stroke(mm) |
400 |
Speed Speed(r/min) |
Positive rotation rate:34,67,115,189,238,156,307,531,868,1094Reverse rotation rate:38,173 |
Spindle Hole diameter(mm) |
Φ65/Φ96 |
Spindle Output torque(N.M) |
3100 |
Spindle Stroke(mm) |
530 |
Spindle Driving force max(KN) |
40 |
Spindle Lifting power max(KN) |
60 |
Lifting Speed(m/s) |
0.30,0.59,1.01,1.66,2.09 |
Single Rope lifting power max(KN) |
30 |
Steel Wire rope diameter(mm) |
Φ13 |
Mode of chuck |
Hydrolic chuck or column Chuck |
Weight(power Unit excepted)(kg) |
1200 |
LxWxH(mm) |
2000x900x1600 |
Diesel Engine |
495D(26.5kw) |
Electromotor |
Y180L-4(22kw) |
