| Special Features: | Vandal-proof |
|---|---|
| Technology: | Pinhole |
| Sensor: | CCD |
| Style: | Hidden Camera |
| Type: | Analog Camera |
| Model Number: | JK901T |
| Brand Name: | HVB or OEM |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

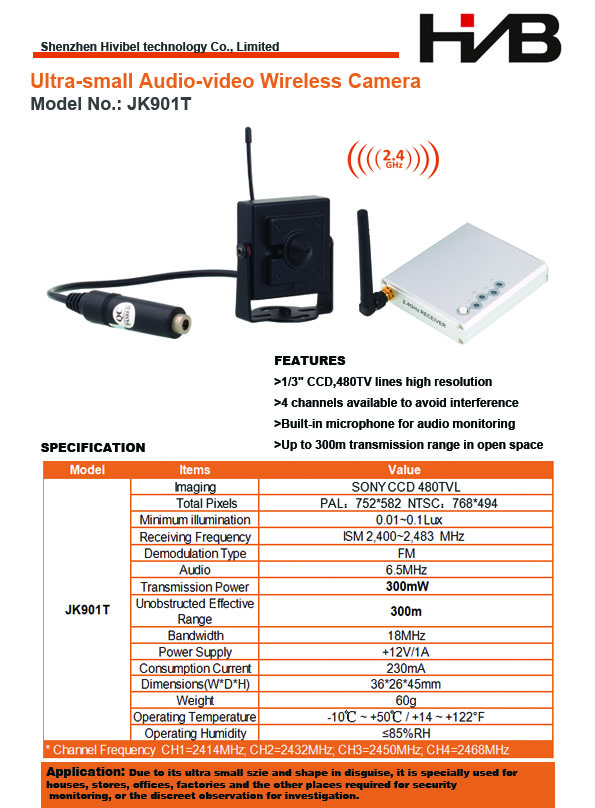

300m 2.4Ghz Long Range Mini Video Audio Wireless Camera
>1/3" CCD,480TV lines high resolution.
>4-channel available to avoid.
>Built-in microphone for audio monitoring.
>Up to 600m transmission range in open space.
>1/3" CCD,480TV lines high resolution.
>4-channel available to avoid.
>Built-in microphone for audio monitoring.
>Up to 600m transmission range in open space.
|
Specification |
||
|
JK901T |
Minimum illumination |
0.01~0.1Lux |
|
|
Receiving Frequency |
ISM 2,400~2,483 MHz |
|
|
Demodulation Type |
FM |
|
|
Audio |
6.5MHz |
|
|
Transmission Power |
300mW |
|
|
Unobstructed Effective Range |
300m |
|
|
Bandwidth |
18MHz |
|
|
Power Supply |
+12V/1A |
|
|
Consumption Current |
230mA |
|
|
Dimensions(W*D*H) |
36*26*45mm |
|
|
Weight |
60g |
|
|
Operating Temperature |
-10℃ ~ +50℃ / +14 ~ +122°F |
|
|
Operating Humidity |
≤85%RH |
|
* Channel Frequency CH1=2414MHz; CH2=2432MHz; CH3=2450MHz; CH4=2468MHz |
||
