| Screen Dimension: | customized |
|---|---|
| Pixels: | 4mm |
| Display Function: | image,picture,animation,video |
| Tube Chip Color: | Full Color |
| Usage: | indoor,outdoor,semioutdoor |
| Model Number: | CM-P4-A |
| Brand Name: | Coreman |
| Place of Origin: | China (Mainland) |
| Competitive advantage: | LED Display mnufacurer,supplier,factory |
| led chip: | silan,epistar,opto,cree,nichia |
Quick Details
Specifications
Indoor SMD full color LED display for advertising:

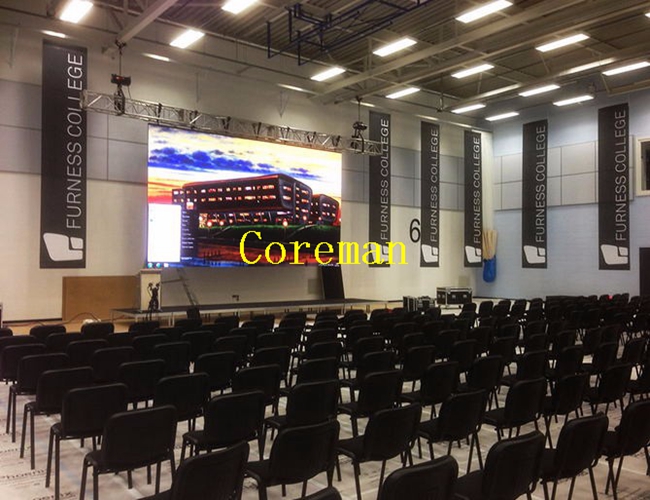

1,P4 indoor LED display is very popular in LED displays advertising field. this type LED display is widely used indoor LED video wall, on the stage of concert, as the background in the theater etc..
2,High brightness and support brightness automatically adjustment.
3,Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;
4,Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system; 5,Rich indoor LED display engineering experience both in domestic and international market.
Many selection for indoor SMD full color LED display:
P3,p4,p5,p6,p7.62,p8,p10.
Also for outdoor SMD full color LED display:
P6,P8,P10,etc.
2.P4 SMD full color LED module:
Model No. |
CM-P4 |
Pixel Pitch |
4mm |
Module Size |
128mm×128mm,256mmx128mm |
Module Resolution(Pixel) |
32dots×32dots,64dotsx32dots |
Pixel Density |
40000dots/m2 |
LED Type |
SMD 3 in 1 |
Pixel Configuration |
1R1G1B, black diamonds lamp |
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
Drive Mode |
Dynamic 1/16 Duty Constant Current |
Cabinet Size |
640×512×135mm |
Cabinet Resolution |
160dots×128dots |
Brightness |
≥2500cd/cd2 |
Contrast |
≥2000:1 |
Viewing Angle |
160°(Horizontal )/140°(Vertical ) |
Minimum Viewing Distance |
2m |
Grey Scale |
10bits/1024levels |
Color Capability |
16777216 |
Color Temperature |
5000-9300K |
Maximum Power Consumption |
3100W/m2 |
Average Power consumption |
1000W/m2 |
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
Frame Frequency |
60-85HZ |
Refresh Frequency |
240-1000HZ |
Brightness Correction |
Pixel, Module, Cabinet Correction |
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
Operating Humidity |
10-90% RH |
LED Lifespan |
100,000 hours |
MTBF |
≥50,000 hours |
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI,Composite |
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
Graphics Card |
DVI Graphics Card |
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
Control System |
LINSN or DB-STAR |
Software |
LED studio 10.0 |
Waterproof Level |
IP31 |
Installation |
Wall mount, hung and stand structure |
Out of Control Rate |
0.01 % |
-------------------------------------------------------------------------------------------------------------------
