| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | three year life |
| Certification: | ISO9001,SGS,CE |
| Brand Name: | CX |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications

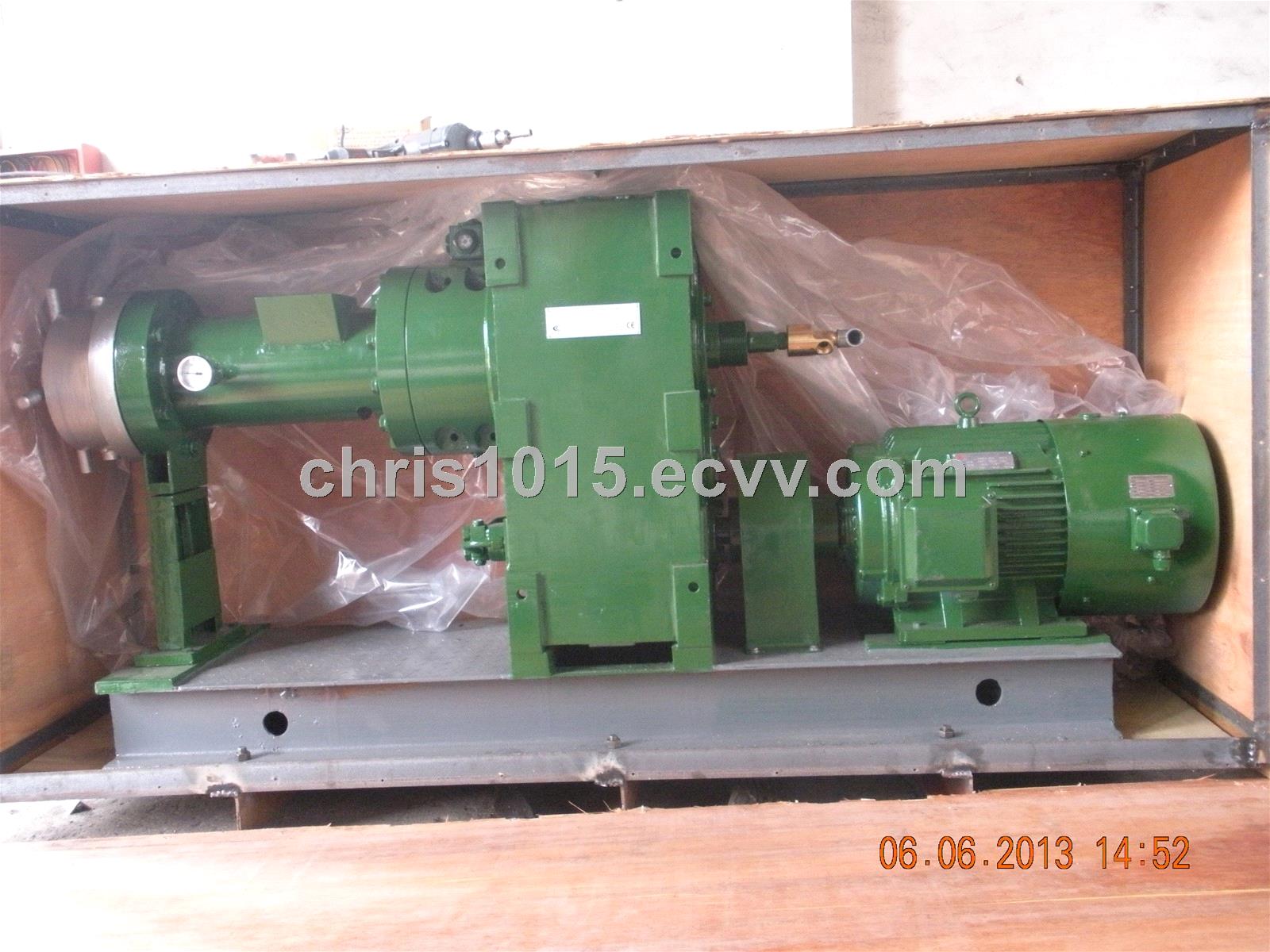

Structural features:
1. the extruder can be equipped with head, clients also self-equipped according to clients needs.
2. the extruder body with spiral water vapor channel, with good results thermostat and thermometer with thermocouple and body temperature, feeding mouth is equipped with feed roller to enhance feeding effect.
3. Screws and bushings are made of nitrided steel and after nitriding treatment, with sufficient strength and wear resistance.
4. the Rubber extruder Reducer with ZLYJ (hard-tooth) series reducer or ZQ (ordinary) series reducer. ZLYJ (hard-tooth) series reducer, gear for the six precision, carburizing and grinding of cylindrical gears, low noise, long life, to withstand force; ZQ (ordinary) series reducer relatively hard-tooth reducer, noise, life is shorter.
5. this machine adopts frequency conversion motor drive can be specified speed range control, easy to operate.
6. the pipeline can pass steam and cooling water, the body and the screw for heating and cooling.
7. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
Technical Parameters:
1. the extruder can be equipped with head, clients also self-equipped according to clients needs.
2. the extruder body with spiral water vapor channel, with good results thermostat and thermometer with thermocouple and body temperature, feeding mouth is equipped with feed roller to enhance feeding effect.
3. Screws and bushings are made of nitrided steel and after nitriding treatment, with sufficient strength and wear resistance.
4. the Rubber extruder Reducer with ZLYJ (hard-tooth) series reducer or ZQ (ordinary) series reducer. ZLYJ (hard-tooth) series reducer, gear for the six precision, carburizing and grinding of cylindrical gears, low noise, long life, to withstand force; ZQ (ordinary) series reducer relatively hard-tooth reducer, noise, life is shorter.
5. this machine adopts frequency conversion motor drive can be specified speed range control, easy to operate.
6. the pipeline can pass steam and cooling water, the body and the screw for heating and cooling.
7. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
Technical Parameters:
| Type and spec. | XJ-65 | XJ-85 | XJ-115 | XJ-150 | XJ-200 | XJ-250 |
| Screw dia.(mm) | 65 | 85 | 115 | 150 | 200 | 250 |
| L/D | 4 | 4.8 | 4.8 | 4.4 | 4.4 | 4.5 |
| Screw rotational speed(r/min) | 20.27 35.47 |
27.40 53.72 |
20~60 | 27~81 | 22.4~67.2 | 19.7~59.1 |
| Motor power(kw) | 7.5 | 17 | 30 | 15.3~55 | 33.3~100 | 33.3~100 |
| Overall dimension L×W×H(mm) | 1600×675×1053 | 2050×735×1275 | 2770×665×1300 | 3585×814×1470 | 4549×1140×1750 | 4950×1150×1483 |
| Capacity (kg/h) | 50~80 | 62~270 | 100~350 | 800 | 1500~2200 | 3500 |
| Total weight(t) | 1.5 | 2.6 | 3.3 | 4.5 | 7.21 | 9 |
