Quick Details

Brand Name: CHIKEK
Card type: HITAG S64/256/2048, EM4100/4200, etc
Communication: UART TTL
Dimension: 22mmx42mmx3mm
Frequency: 125KHz &134.2KHz
Model Number: CHK120MT
Place of Origin: China (Mainland)
Antenna: External, Molex connector or stamp hole
Protocol: ISO11784/11785

Specifications

Key Features:

  • Frequency available with 125KHz, 134.2KHz
  • 3.3V ~ 5V DC Power supply, UART-TTL interface
  • Compatible withISO11784,11785 Standard, support FDX-B
  • R/W HITAGS 64, HITAGS 256, HITAGS 2048 tag;
  • Read only UID of EM4100/4200, TK4100 cards
  • Available to format HITAGS series card to ID card or FDX-B animal ear tags format;
  • External antenna, reading range up to 5~7 cm
  • External LED&BUZ available (external driver circuit needed)

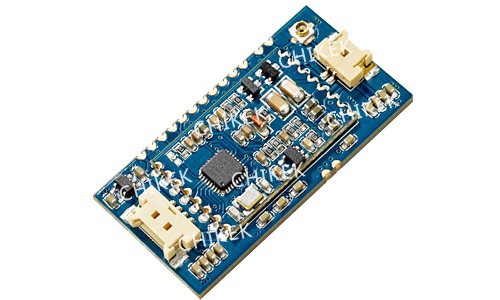

125KHz 1342KHz HITAGS Reader Module Animal Tags RFID Reader Writer

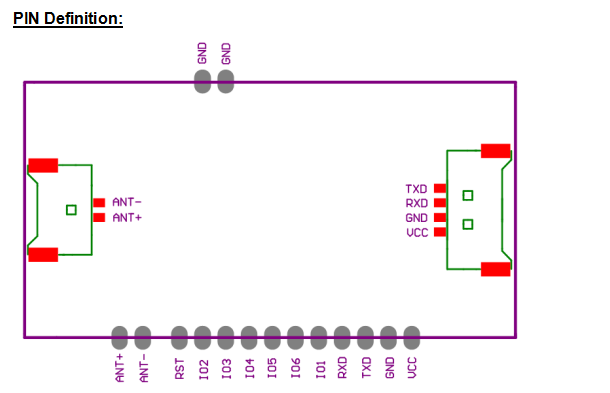

TTL 125KHz 1342KHz HITAGS Module animal tags reader

Technical Parameters:



Electrical Specification



Power supply

DC 3.3V ~ 5V

Power consumption

< 45mA

OPeration frequency

125KHz &134.2KHz

Baudrate

9600~115200 bit/s ( default 9600bps)

Interface

UART TTL

Antenna

External, Molex connector, or stamp hole

Reading range

50- 100mM (depends on tag and antenna size)



Mechanical Specifications



Dimension

22mmx42mmx3mm (LxWxH)

Weight

6g

MAterial

FR-4, Blue

Model

CHK120MT



Environmental Conditions



Operation temperature

-20C~+80C

Storage temperature

-40C~+85C

Humidity

Relative humidity 5%~95%



Supported Standard/ Tags





EM4100,EM4200, TK4100

ISO/IEC 11784/11785

HITAGS 64, HITAGS 256, HITAGS 2048



SDK information



Demo software

WINDOWS

Files

Comprotocol document

API document

User Manual

Demo.Exe



  Note:  Other functions and details to be continued and upgraded
