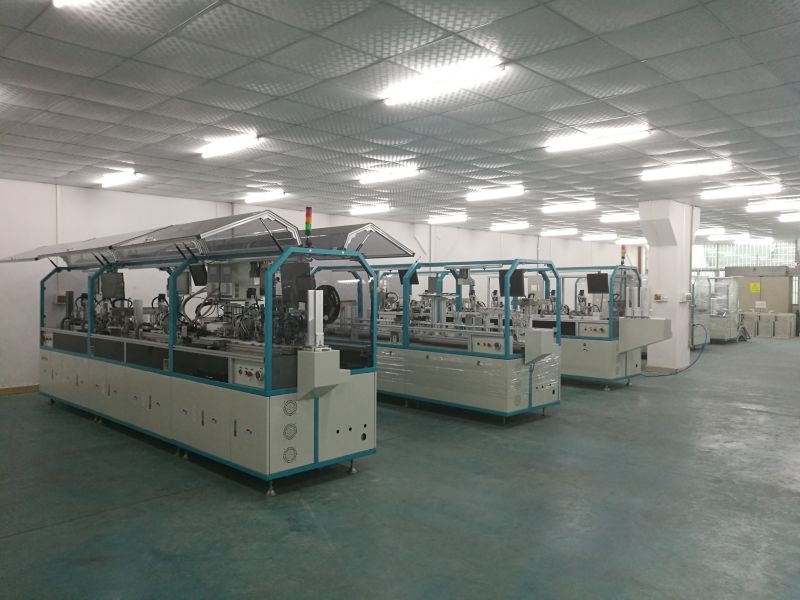

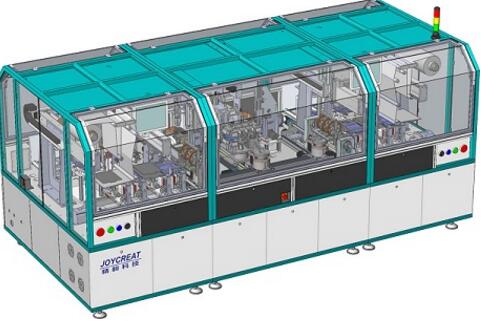

Lithium Ion Battery Making machine / stacking machine / laminate machine

Item	Technical Parameters
Size	L3410mm X W1760mm X L1900mm
Weight	3000Kgs
Power	14.5kw
Compressed Air	5kgf-7kgf/cm(0.5Mp-0.7Mp) Dry, without water
Air Consumption	250L/min
Applicable Range	H2~40mm, W70~220mm, L 150~300mm
Electrode tab range	W20~70mm, L6~30mm
Cell Thickness	5-40mm
Speed	0.5s/pcs / dual-station(1s/pcs / single station)
End Roll Timing	10-15s
Pole Piece Positioning Accuracy	±0.3mm
Membrane Positioning Accuracy	±0.3mm( Excluded end roll membrane)
Membrane Spec	Thickness 15-30μm, Inner diameter?76mm, Max outer diameter?300mm
Adhesive tape Spec	Thickness 15-30μm,W10-20mm, Inner diameter  ?76mm, Max outer diameter  ?150mm
Adhesive tape Speed	Adhesive tape 10 stripes with 20s

,Eight Advantages:
1,Feeding magazine
Air knife for removing double sheets
Brush for removing double sheets
Bending for removing double sheets
Servo Magazine Shaking for removing double sheets
Servo motor feeding accurately
Feeding magazine size can be replaced, suitable for electrode with Length 150-300mm width 70-220mm
2,Electrode Correction Station
Electrode direction detection
Electrode edge lift detection
Electrode Ultrasonic double sheet detection
ElectrodeCorrection size can be adjustable, suitable for electrode withLength150-300mm width 70-220mm
Automatic suction cleaning and collecting dust
3,Lamination Station
Lamination station up and down under servo controlsystem,, operation precisely on Human machine interface
Segment left and right control, easy for separatorcontrol
Tablet two stage press is controllable to avoidscratches, strains electrode andseparator
Tablet up and down & back and forth with dual railslide guide, precise and durable
4,Separator Feeding
Servo system control feeding with uniform &accurate speed
Segment left and right control, easy for separatorcontrol
Import analog module + servo system correction
Negativeanion static elimination
Air shaft to fix the separator, power on/off to remainseparator
Different widths separator can be used with differentsize of electrode
5,End Roll
Servo system roll film, uniform speed and precision
Brake wheel with tensioning structure to adjustseparator tightness
Double cutter options are available
6,GlueTape
Servo system rotate the battery,stable, fast andaccurate
360degreerotation of the top lifting structure to control glue tape unit
4 sides with tape are available for battery 4
7,Collect Magazine
Automatic alarm when collect magazine is full R
Magazinesize is adjustable & suitable for electrode with length 150-300mm 150-300mm width 70-220mm
8,Software
Self-developed software
It allows to set machine parameters in human machineinterface, simple and convenient operation
Single-station operation is available ifnecessary
