| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 2146mm*1898mm*1639mm |
| Weight: | 1.8 Tons |
| Model Number: | N2/N3 |
| Brand Name: | Havesino |
| Place of Origin: | China (Mainland) |
| Power: | 380V,50Hz |
| Packaging Material: | Wood |
| Packaging Type: | Case |
| Application: | Machinery & Hardware |
| Condition: | New |
Quick Details
Specifications
Features:
§Fully Auto Tension Control
§Sanyo Servo Motor + SIEMENS PLC
§Max.Working Speed 350m/min
§Max Slitting Width 1050mm

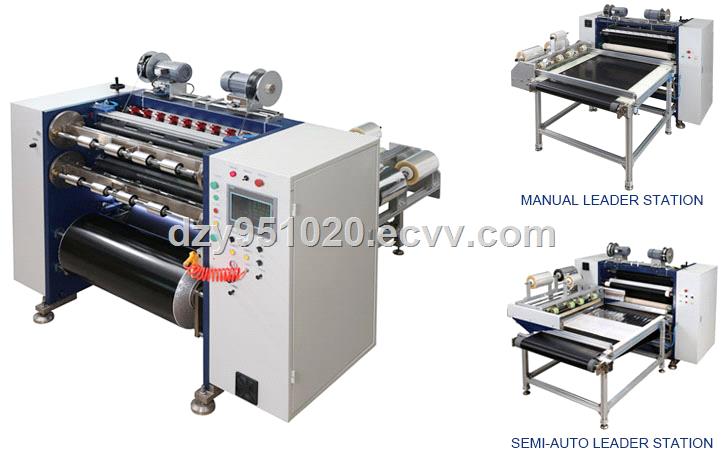

the most Professional and Fastest TTR Slitting Machine in
China
Parameters:

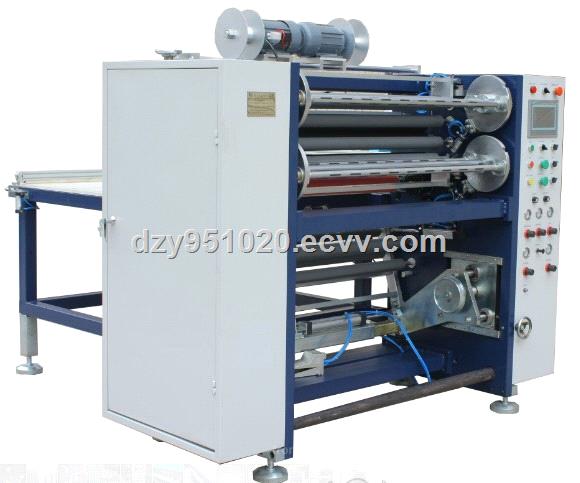

Model: TTR Slitting Machine N2,N3
Max Working Width:1010mm(Optional 1050mm)
Slitting Thickness:0.004-0.02mm
Unwinding Diameter:maxФ630mm
Unwinding Core Shaft:Shaftless
Unwinding Core Size: 6″
Rewinding Width:Min 25mm
Rewinding Diameter:N2:max Ф120mm, N3:max Ф140mm
Rewinding Core Size:1" and 1/2"
Rewinding Core Type:1" Air Shaft and 1/2" Solid shaft
Rewinding Core Qty.:4 pcs 1" Shafts and 4 pcs 1/2" Shafts
Blade Type:N2: Fixing Razor Blade 35 pcs;N3:Magnetic Blade 25 pc
Leader & Trailer Station:Manual
Waste Edge Rewinding Unit:Normal Motor 2 PCS
Machine Wall Thickness: N2:30mm,N3:40mm
Meter Counter:Encoder Meter Counter
Motor + PLC:Sanyo Servo Motor+SIEMENS PLC
Auto Press Roller:2 sets
Mechanical Speed:N2:Max.280m/min, N3:Max.380m/min
Working(slitting) Speed:N2:Max 250m/min, N3:Max 350m/min
Power Supply:380V,50Hz,3 Phase (can be customized)
Air Supply:Mini 0.6MPa
N.W:N2:1.8 Tons, N3:2.0 Tons
G.W:N2:2.0 Tons, N3:2.2 Tons
Machine Dimension:N2:2146mm×1898mm×1639mm, N3:2350mm×2100mm×1700mm
Floor Area:2200MM×2000MM
