| Type: | FSTN/CSTN |
|---|---|
| Brand Name: | CNK |
| Interface Type: | SPI |
| Resolution: | 128128 |
| application: | LCD |
| Model Number: | CNK128128-11001A |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
CNK Electronics CO.,LTD.

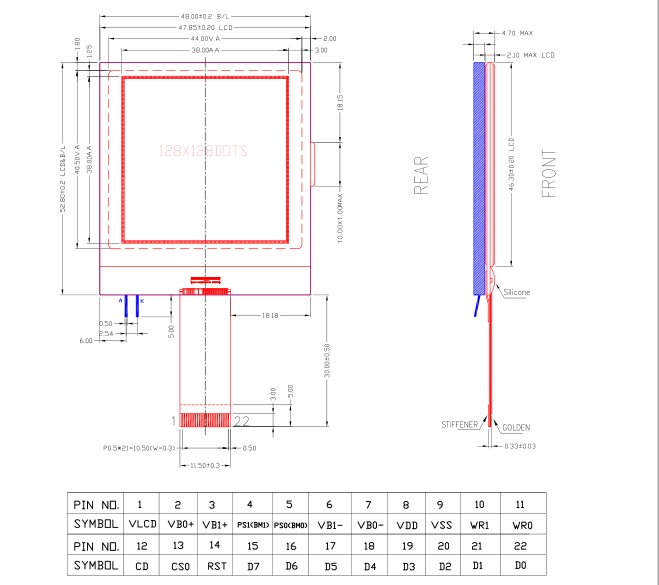

- Module size(WxHxT):48x52.8x4.7mm
- Display view area(WxH):44x40.5mm
- LCD type:FSTN/Positive/Transflective
- View angle:12 O'clock
- Driver IC:UC1617S
- Backlight Driver type:Power/3.0+/-0.2V/White
- DC to DC circuit:Build-in
- Weight:TBD
- Operating Temperature:-10C to 60C
- Storage Temperature:-20C to 70C
- Drive Method:1/128 Duty,1/11 Bias
- Connector:COG
- LCD Operating Voltage:11.8V
- LCM Operating Voltage:3.0V
