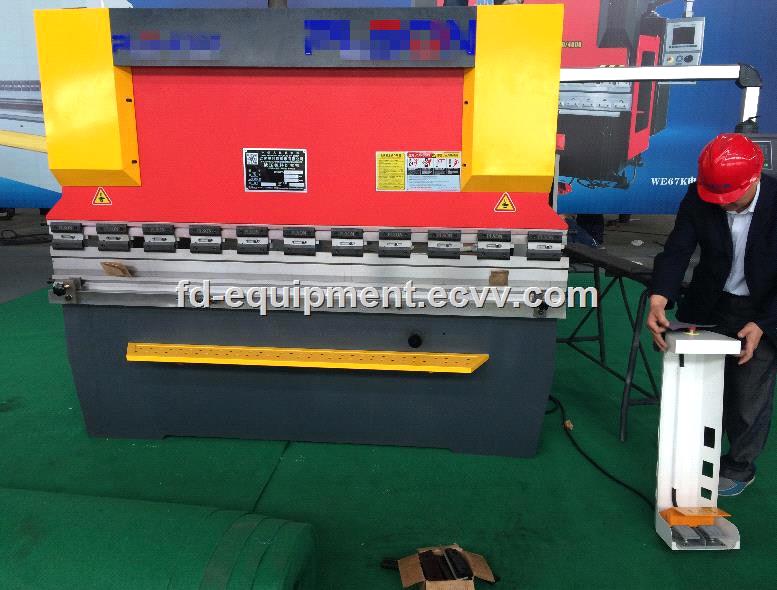

Descriptions of Press Brake Machine:
■ streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
■ this type of metal machining tool is a kind of steel torsion bar synchro press brake. Electronic control of back gauge and RAM stroke, data displayed and manual setting.
■ Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS brand
■ Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
■ Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
■ the machine by the European Union CE certification and ISO quality system certification
Technical Specification:
Model
(WC67Y) |
Nominal Pressure (kN) |
Length of table (mm) |
Distance between Housing (mm) |
Throat Depth (mm) |
Stroke (mm) |
Open Hight (mm) |
Main Motor (kW) |
Dimensions |
Weight (T) |
40/2000 |
400 |
2000 |
1600 |
200 |
110 |
335 |
4 |
2545x1510x2050 |
3 |
40/2500 |
400 |
2500 |
2000 |
200 |
110 |
335 |
4 |
2950x1510x2080 |
3.5 |
63/2000 |
630 |
2000 |
1600 |
250 |
110 |
350 |
5.5 |
2555x1600x2130 |
3.8 |
63/2500 |
630 |
2500 |
2000 |
250 |
110 |
350 |
5.5 |
2960x1600x2180 |
4.2 |
63/3200 |
630 |
3200 |
2600 |
250 |
110 |
350 |
5.5 |
3740x1600x2230 |
5.2 |
100/2500 |
1000 |
2500 |
2000 |
350 |
150 |
400 |
7.5 |
2980x1650x2330 |
6.3 |
100/3200 |
1000 |
3200 |
2600 |
350 |
150 |
400 |
7.5 |
3740x1650x2355 |
7 |
100/4000 |
1000 |
4000 |
3200 |
350 |
150 |
400 |
7.5 |
4550x1650x2450 |
8.8 |
100/5000 |
1000 |
5000 |
4000 |
350 |
150 |
400 |
7.5 |
5100x1500x2650 |
11.8 |
125/2500 |
1250 |
2500 |
2000 |
350 |
150 |
410 |
7.5 |
3980x1650x2370 |
7.5 |
125/3200 |
1250 |
3200 |
2600 |
350 |
150 |
410 |
7.5 |
3750x1650x2450 |
8.2 |
125/4000 |
1250 |
4000 |
3200 |
350 |
150 |
410 |
7.5 |
4550x1650x2470 |
9 |
125/5000 |
1250 |
5000 |
4000 |
350 |
150 |
410 |
7.5 |
5100x1500x2795 |
11.5 |
125/6000 |
1250 |
6000 |
4500 |
350 |
150 |
410 |
7.5 |
6100x1500x2895 |
14 |
160/2500 |
1600 |
2500 |
2000 |
350 |
150 |
425 |
11 |
2980x1715x2410 |
8.5 |
160/3200 |
1600 |
3200 |
2550 |
350 |
150 |
425 |
11 |
3750x1715x2450 |
11 |
160/4000 |
1600 |
4000 |
3200 |
350 |
190 |
450 |
11 |
4550x1715x2730 |
12 |
160/5000 |
1600 |
5000 |
4000 |
350 |
190 |
450 |
11 |
5100x1570x2900 |
15.5 |
160/6000 |
1600 |
6000 |
4500 |
350 |
190 |
450 |
11 |
6100x1570x3010 |
19 |
200/3200 |
2000 |
3200 |
2600 |
350 |
240 |
460 |
11 |
3750x1815x2715 |
13 |
200/4000 |
2000 |
4000 |
3200 |
350 |
240 |
460 |
11 |
4550x1815x2850 |
14 |
200/5000 |
2000 |
5000 |
3800 |
350 |
240 |
460 |
11 |
5100x1715x3020 |
18.5 |
200/6000 |
2000 |
6000 |
4500 |
350 |
240 |
460 |
11 |
6100x1715x3120 |
21 |
250/3200 |
2500 |
3200 |
2600 |
400 |
240 |
525 |
11 |
3750x2010x2850 |
15.5 |
250/4000 |
2500 |
4000 |
3200 |
400 |
240 |
525 |
11 |
4550x2010x3010 |
17 |
250/5000 |
2500 |
5000 |
3800 |
400 |
240 |
525 |
11 |
5100x1890x3190 |
21.5 |
250/6000 |
2500 |
6000 |
4500 |
400 |
240 |
525 |
11 |
6100x1890x3350 |
28 |
300/3200 |
3000 |
3200 |
2600 |
400 |
250 |
545 |
15 |
3740x2100x3235 |
19.5 |
300/4000 |
3000 |
4000 |
3200 |
400 |
250 |
545 |
15 |
4340x2100x3300 |
22 |
300/5000 |
3000 |
5000 |
3800 |
400 |
250 |
545 |
15 |
5100x2100x3430 |
26 |
300/6000 |
3000 |
6000 |
4500 |
400 |
250 |
545 |
15 |
6100x2100x3490 |
29
|
