Specifications

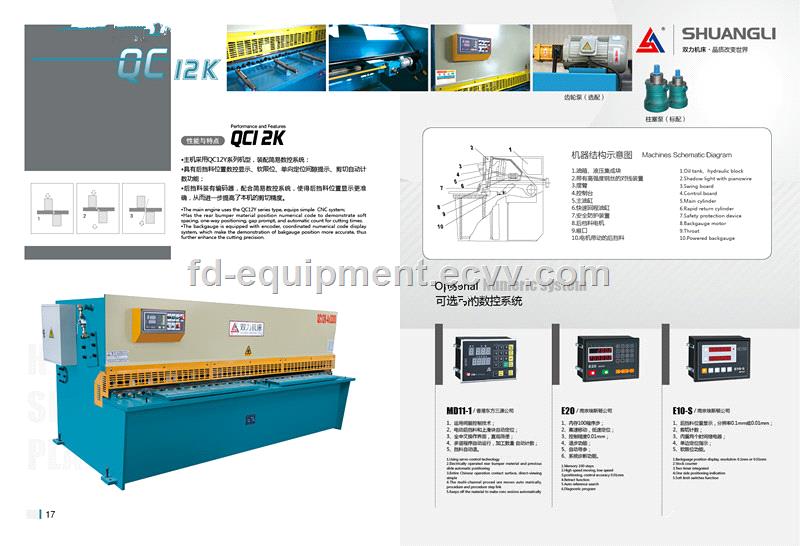

QC12K Series Digital Control Hydraulic Swing Beam Shear
Features
1,QC12K Hydraulic CNC Shearing Machine
2,Back gauge adopt E20 control system controller
3,Max.Thickness: 30mm
4,Max.Width: 3
QC12K Hydraulic CNC Shearing Machine
1,with steel sheet welded structure,hydraulic drive system, accumulator back store, it has characters of convenient operation,reliable performance, and beautiful appearance.
2,clearance between blades has display plate for swift and stepless adjustment.
3,with light-alignment device,and be capable of stepless adjustment of stroke length of blade rack.
4,adopt barrier protection arrangement for personnel safety.
5,back gauge adopt e20 comtrol system
6,ball screw,rolling guide,servo motor driving or variable frequency control,with low noise and high precision.
7,blade clearance is selectable with shear counting function and numerical control adjusting function.
Specifications
QC12Y Series Hydraulic Pendulum Plate Shearing Machine/QC12K Series Digital Control Hydraulic Swing Beam Shear
Model |
Plate Thickness (mm) |
Plate width (mm) |
Shearing Angle (°) |
Back Gauge Range (mm) |
Stroke No. (/min) |
Main Motor Power (kw) |
Outline Dimension (mm) |
4*2500 |
4 |
2500 |
1.5 |
20-400 |
16 |
5.5 |
3000*1550*1600 |
4*3200 |
4 |
3200 |
1.5 |
20-600 |
13 |
7.5 |
3850*1550*1600 |
4*4000 |
4 |
4000 |
1.5 |
20-600 |
10 |
7.5 |
4500*1700*1700 |
4*6000 |
4 |
6000 |
1.5 |
20-600 |
8 |
11 |
6500*2100*2300 |
6*2500 |
6 |
2500 |
1.5 |
20-600 |
15 |
7.5 |
3000*1700*1650 |
6*3200 |
6 |
3200 |
1.5 |
20-600 |
12 |
7.5 |
3850*1700*1650 |
6*4000 |
6 |
4000 |
1.5 |
20-600 |
9 |
7.5 |
4600*1850*1700 |
6*6000 |
6 |
6000 |
1.5 |
20-600 |
5 |
15 |
6500*2100*2300 |
8*2500 |
8 |
2500 |
1.5 |
20-600 |
14 |
7.5 |
3050*1700*1700 |
8*3200 |
8 |
3200 |
1.5 |
20-600 |
10 |
7.5 |
3850*1700*1700 |
8*4000 |
8 |
4000 |
1.5 |
20-600 |
8 |
11 |
4650*1700*1700 |
8*6000 |
8 |
6000 |
1.5 |
20-600 |
6 |
15 |
6500*2100*2350 |
10*2500 |
10 |
2500 |
1.5 |
20-600 |
10 |
15 |
3050*1800*1700 |
10*3200 |
10 |
3200 |
1.5 |
20-600 |
9 |
15 |
3900*2000*1700 |
10*4000 |
10 |
4000 |
1.5 |
20-600 |
8 |
15 |
4650*2100*2000 |
10*6000 |
10 |
6000 |
1.5 |
20-800 |
6 |
18.5 |
6500*2100*2300 |
12*2500 |
12 |
2500 |
1.5 |
20-800 |
12 |
18.5 |
3150*2050*2000 |
12*3200 |
12 |
3200 |
1.5 |
20-800 |
10 |
18.5 |
3900*2150*2000 |
12*4000 |
12 |
4000 |
2 |
20-800 |
8 |
18.5 |
4700*2150*2100 |
12*5000 |
12 |
5000 |
2 |
20-800 |
6 |
22 |
5800*2450*2400 |
12*6000 |
12 |
6000 |
2 |
20-800 |
5 |
22 |
6900*2600*2700 |
12*8000 |
12 |
8000 |
1.75 |
20-800 |
4-6 |
22 |
8600*3250*3200 |
16*2500 |
16 |
2500 |
2 |
20-800 |
10 |
18.5 |
3150*2250*2000 |
16*3200 |
16 |
3200 |
2 |
20-800 |
10 |
18.5 |
3900*2250*2000 |
16*4000 |
16 |
4000 |
2.5 |
20-800 |
8 |
22 |
4650*2250*2200 |
16*5000 |
16 |
5000 |
2.5 |
20-800 |
6 |
30 |
5900*2600*2700 |
16*6000 |
16 |
6000 |
2.5 |
20-800 |
5 |
30 |
6900*2700*2900 |
20*2500 |
20 |
2500 |
2.5 |
20-800 |
8 |
30 |
3450*2300*2500 |
20*3200 |
20 |
3200 |
2.5 |
20-800 |
8 |
30 |
4150*2350*2700 |
20*4000 |
20 |
4000 |
2.5 |
20-800 |
5 |
30 |
4850*2600*2800 |
25*2500 |
25 |
2500 |
3 |
20-800 |
8 |
30 |
3200*2700*2900 |
25*3200 |
25 |
3200 |
3 |
20-800 |
5 |
30 |
4200*2700*3000 |
30*2500 |
30 |
2500 |
3.5 |
20-1000 |
4 |
30 |
3300*2900*3000 |
30*3200 |
30 |
3200 |
3.5 |
20-1000 |
4 |
30 |
4200 |
