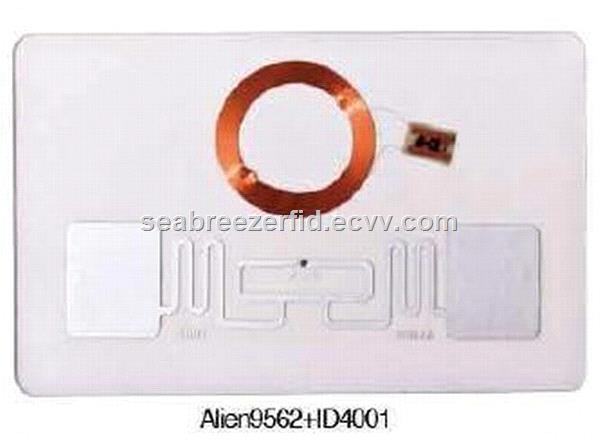

TK4100+9662 inlay, UHF+LF dual-frequency card, EM4102+Alien H3 inlay card

this is TK4100 and Alien H3 RFID inlay(AZ-9662) package together UHF+LF dual-frequency cards (TK4100 chips compatible with EM4102 chips), can read both frequencies simultaneously. Using frequency-hopping mode, a super anti-interferenceg capability,the user can customize the read and write standards data, so that the efficiency of application system of specialized more quickly, reading from 8 meters or more. 1024bits memory capacity, the only global 64 bits ID number, ultra wide band design, Not only in accordance with the relevant provisions of the industry, but also for the development of flexible application, can simultaneously read multiple tags (up to 50/sec or more ), not by the amount of work area tags constraints and the impact, LF chips can be close identity management for personnel and goods.

Technical parameters
Chip: Alien H3 and TK4100
Memory: 96bit/512bit+1KByte
Standard: ISO/IEC 18000-6C, EPC Class1 Gen2, ISO 18000-2
Frequency: 860-960MHz and 125KHz
Reading and writing tool: reader and antenna
UHF read distance: stable reading distance: >8M
LF read distance: 10cm
Size:85.5mm×54mm×0.8mm
Operating temperature: -20℃~+70℃ (-4℉-+158℉)
Packaging materials: PVC/PET/ABS,etc.
Wipe the number: >100,000 times
Storage: 10 years

Applications:Vehicle management, parking lot, access control logistics,residential area, supermarket, library, asset management, personnel management,etc.

Aviable Crafts
Printing: Offset Printing, Silkscreen Printing, Thermal printing, Ink-jet printing, Digital printing.
Security features: Watermark, Laser ablation, Hologram/OVD, UV ink, Optical Variable ink, Hidden barcode/Barcode mask, Graded Rainbow, Micro-text.
Others: Chip data initialization/Encryption, Personalized magnetic stripe programed, Signature panel, Barcode, Serial number, Embossing, DOD code, NBS convex code, Die-cut.

Competitive Advantage
the best price;
Excellent quality;
Fast delivery;
Large capacity and a wide range of products;
Accept small order;
ODM and OEM products according to customer's demand.

Declare: the showing picture is only for reference of our product. All related to intellectual property rights of trademark are belongs to trademark company.
