Specifications

Features

1.Computer optimized design,3-beam&4-column compact structure.
2.Cartridge Valve Integrated System equipped in hydraulic control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design.
3.Independent electrical control system with reliability, intuitive movement and convenient amendment.
4. Adopting Button common control.
5. Preset Stroke Forming or Preset Pressure Forming process can be selected.

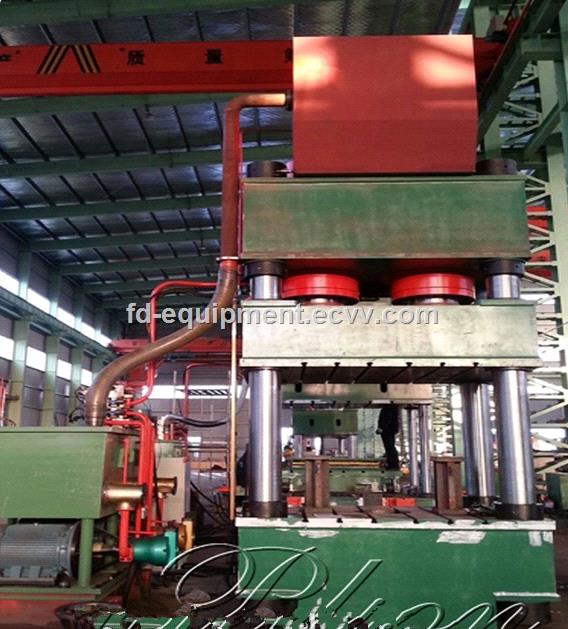

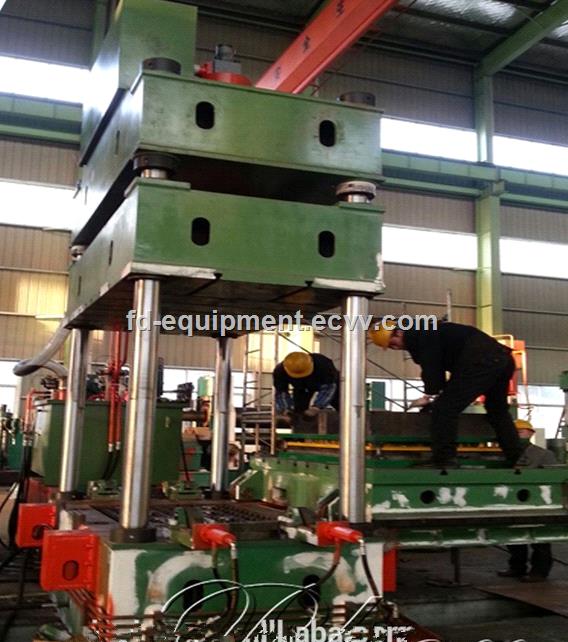

Y32 series 3 beam 4 pole structure. the electricity adopts the PLG controler, the hydraulic sys tem adopts the advanced cartridge inserted valve or slide valve system to control the hydraulic machine by manipulatively collecting button. like a folding machine or a moulding machine, when fitted with suitable die,this machine can be used to press the flange of metal, suppress and form the powder products, plastic, glass steel, insulation material and rubber. Its pressure speed and stroke can be adjusted according to the requirements of technics, and it can finish two kinds of craftwork modes including extruding form and running form.

Technical data	Unit	315	400		500		500A		630	800		800A		1000
Rated pressure	Kn	3150	4000	5000		5000		6300			8000		8000		10000
Working pressure	Mpa	25	25	25		25		25			25		25		25
Block max stroke	Mm	100	800	900		1000		900			1000		1200		1000
Hydraulic cushion force	Kn	1600	1000	2000		2500		2500			3000		3500		4000
Hydraulic cushion stroke	Mm	300	300	300		350		350			350		400		350
Open height	Mm	1250	1250	1500		1600		1500			1600		1800		1600
Speed of slide	Mm/s	100	100	100		150-200		150-200			150-200		150-200		150-200
	Mm/	8-12	6-10	10-15		10-15		10-15			10-15		15-20		15-20
	Mm/s	60	55	70		100		70			70		120		100
Effective table size	Mm	2600	1600	2400		4000		3000			3600		4500		3000
	Mm	1500	1200	1400		2200		1500			2400		2500		2000
Machine size	Mm	2000	1200	1900		3300		2200			2900		3800		2300
	Mm	950	800	1000		1500		1000			1750		1750		1250
Motor	Kw	22	22	2-22		45		45			45+22		2*45		2*45
