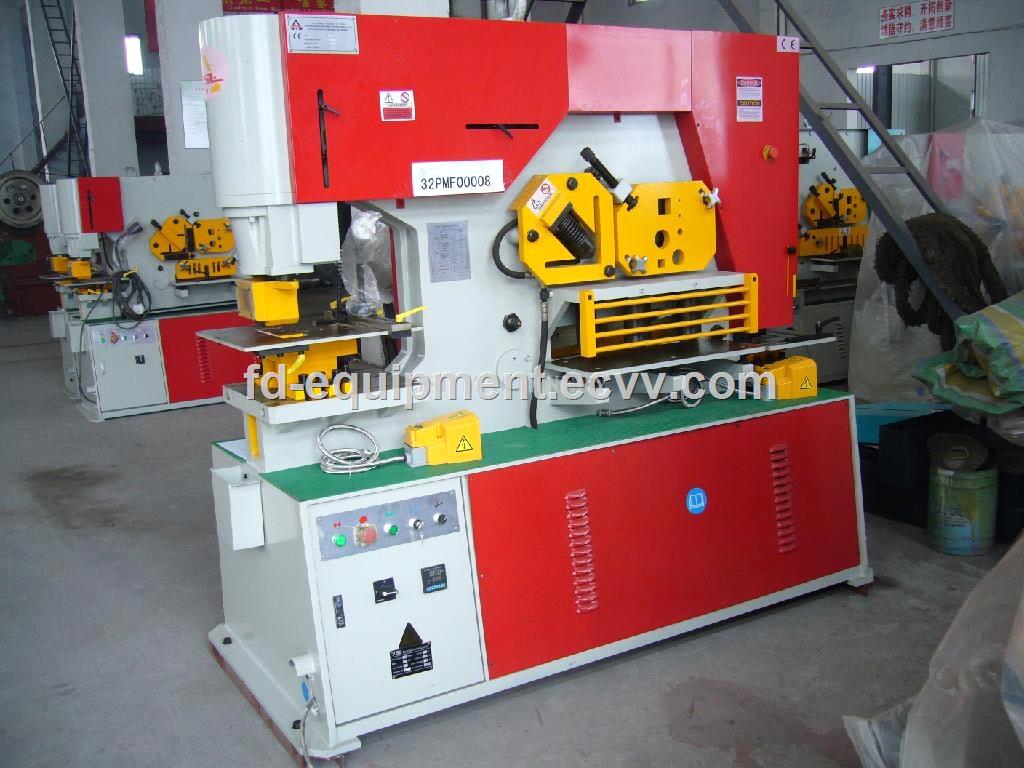

Q35Y-40 is our improved machine. It also goes along with 5 set of blades. but the profile shearing and plate shearing work position is automatic. There is automatic holding system in profile shearing and plate shearing work position- the holders will fix the position of workpiece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency. In addition, there is temperature cooling system with machine- through the temperature monitoring screen you can read the temperature of oil, 55 degree is our default configuration, once the machine is working, oil temperature goes higher than 55, the cooling system inside will run automatically to decrease temperature in order to protect machine. In addition, we have many patents for Ironworker machine and Our Company through the ISO9000, CE certification, SGS certification and CQC.
HYDRAULIC IRONWORKER MODEL: Q35Y-40| NO |
|
Item |
Unit |
|
| Q35Y-40 |
| 1 |
Shearing plate |
Angle of shear |
° |
8° |
| Max.Shearing thickness |
mm |
40 |
| Flat bar |
(W×T) mm |
400×35 |
| 700×25 |
| 2 |
Shearing bar |
Round steel |
mm |
70 |
| Square bar |
mm |
60×60 |
| 90°shearing of equal-angle bar |
mm |
200×200×18 |
| 45°shearing of equal-angle bar |
mm |
100×100×10 |
| 90°shearing of T-bar |
mm |
200×110×18 |
| I beam steel |
mm |
300×126×11 |
| Channel steel |
mm |
300×89×11.5 |
| 3 |
Notching |
Thickness |
mm |
10 |
| Width |
mm |
90 |
| Depth |
mm |
100 |
| 4 |
Punching hole |
Max.Punching thickness |
mm |
35 |
| Max.Diameter of punching |
mm |
40 |
| Punching force |
Ton |
180 |
| Depth of throat |
mm |
600 |
| Max.Length of cylinder stroke |
mm |
100 |
| Stroke times |
Times/min |
8 |
| 5 |
Material strength |
N/mm2 |
≤450 |
| 6 |
Motor power |
KW |
15 |
| 7 |
Overall dimensions(L×W×H) |
mm |
2770×1240×2350 |
| 8 |
Net. Weight |
KG |
7500 |
the machine goes along with: 1. Punch and Die, 2. Angle steel Shearing Blade, 3. Square, round bar Shearing Blade, 4. Shearing plate Shearing Blade 5. Notching blade 6. Automatic Hold-down System 7. Temperature Control System Other die and another profile shearing blade must to be ordered.
Hydraulic System Components: 1. the hydraulic system components are imported components. 2. the main hydraulic valve used Yuken Japan international brand. 3. Hydraulic gear pump is the world famous Athos. 4. In order to prevent the use of process machinery oil leaking, we have adopted the best seal. 5. Main electrical components are used in Germany Schneider Electric brand. 6. about limit switch, we use Omron proximity switches, it can safely move more than 100,000. 7. both side of profile cutting moving blade guide by friction plate. 8. In order to make the machine looks beautiful, we use imported advanced paint, 2-3 years to ensure the machine does not fade and cleaning easily. |
| |
|
