Product Description

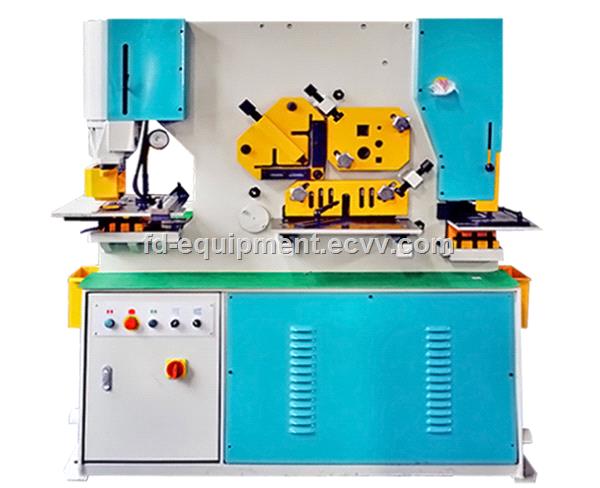

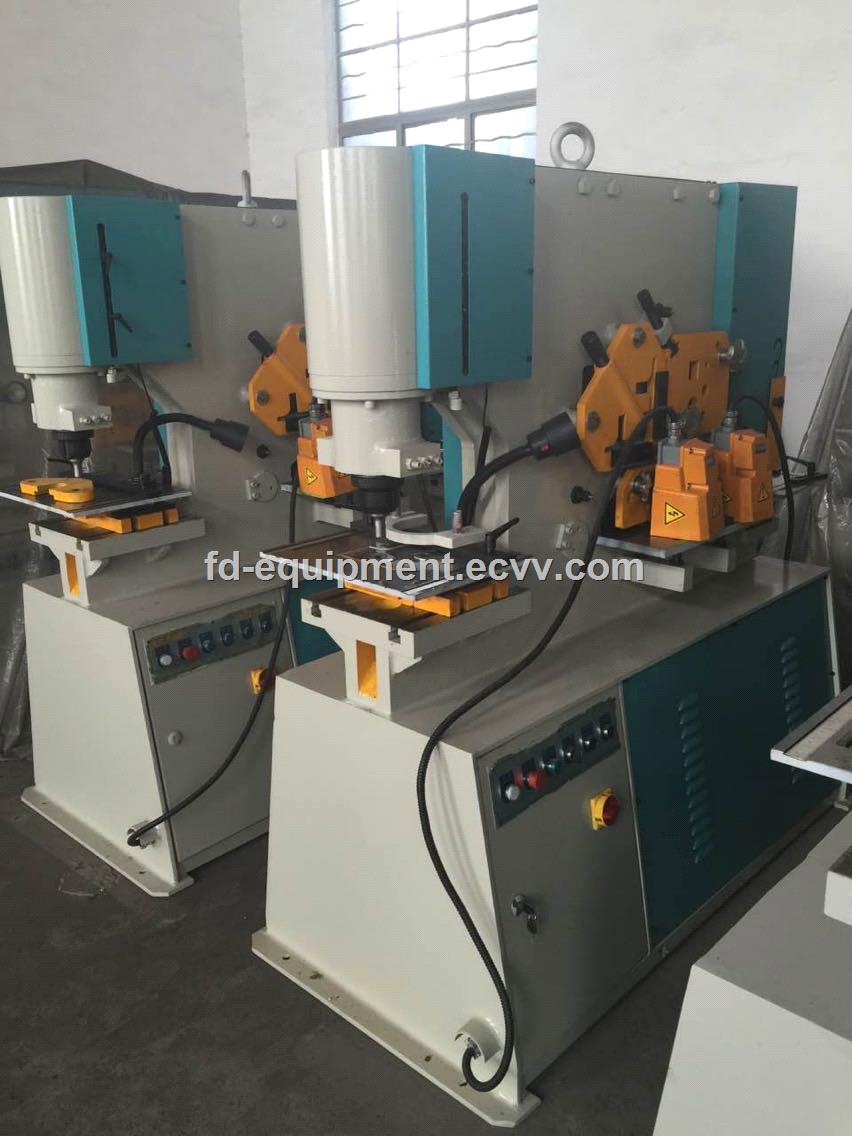

Q35 Y Hydraulic Iron Worker Hydrualic Combined Punching and Shearing Machine with Notching
1. with beautiful appearance, low noise and multi-usages,

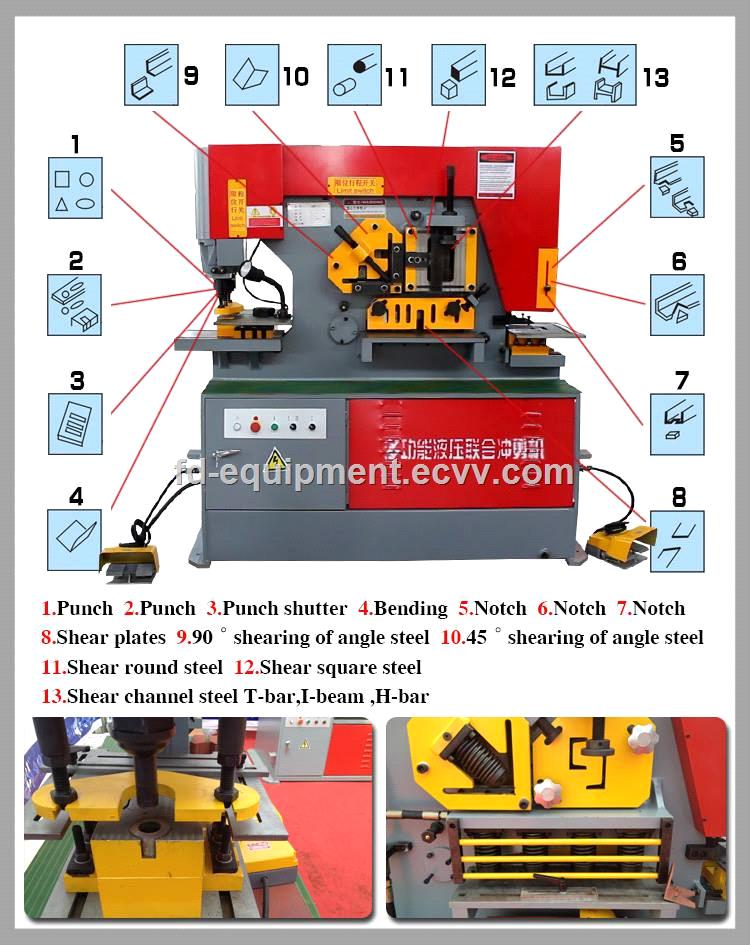

2. the machine has five basic functions: Punching, steel-plate shearing, angle-iron-shearing and template-shearing. According to consumers'own demands,
3. the machine can also punch and shear workpieces with all kinds of shapes by changing moulds or cutting tools.
4. It has been found many applications in aircraft, tractor, motor vechicle, ship, metallurgy, costruction, agricuture and other industries as dominant machine.
5. Be sure to call us when you want to purchase this kind of machine with satisfaction.
Main parameter:
1. with beautiful appearance, low noise and multi-usages,
2. the machine has five basic functions: Punching, steel-plate shearing, angle-iron-shearing and template-shearing. According to consumers'own demands,
3. the machine can also punch and shear workpieces with all kinds of shapes by changing moulds or cutting tools.
4. It has been found many applications in aircraft, tractor, motor vechicle, ship, metallurgy, costruction, agricuture and other industries as dominant machine.
5. Be sure to call us when you want to purchase this kind of machine with satisfaction.
Main parameter:
| Item | Unit | Q35Y-16 | Q35Y-12 |
| Shearing | |||
| Flat bar(W×T) | mm | 150×16,550×4 | 300×12 |
| Square bar | mm | 30×30 | 30×30 |
| Round bar | mm | φ32 | φ40 |
| Joist(Type) | 10# | ||
| Channel(Type) | 10# | 10# | |
| Cutting of angle steel at 90 o | mm | 100×12 | 80×8 |
| Cutting of angle steel at 45 o | mm | 80×10 | |
| Punching(D×T) | mm | Φ26×16 | Φ25×12 |
| Anble flange(L×W×T) | mm | 80×50×10 | |
| Punching force | kn | 600 | 600 |
| Depth of throat | mm | 220 | 172 |
| Max.Length of cylinder stroke | mm | 175 | 32 |
| Stroke times | Times/min | 6-18 | 8-16 |
| Motor power | kw | 4 | 4 |
| Net weight | kg | 1300 | 700 |
| Overall diamensions(L×W×H) | mm | 1585×630×1570 | 960×550×1783 |
| Packing department dimensions(L×W×H) | mm | 1880×790×1770 | 1260×670×1840 |
| It is according to the customers'requirements | |||
