Product Main

Quick Details

Usage: Compression Testing Machine
Power: Hydraulic
Model Number: YES-2000
Brand Name: Chenda
Place of Origin: China (Mainland)
Max test force: 2000kn
Size of bearing plate: 320*220mm
Distance between up and down bearing plates: 320mm
piston stroke: 50mm
Related pressure of the hydraulic pump: 40mpa
power: 220v

Specifications

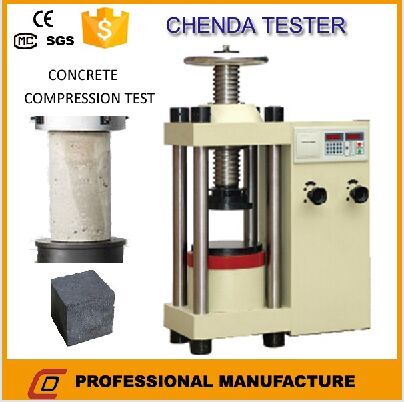

YES-2000 Digital Display Compression Testing Machine with Manual Control
2000kn Concrete Compression Testing Machine From Chinese FactorySoil Lab Equipment

Main Advantages:

  Standard:  ISO 7500-1 ASTM E4.
Application:  this machine is designed to conduct compression and crushing strength tests on containers, concrete cube &cylinders, hollow blocks and various other material in accordance with international standards. The machine is electro-hydraulically operated. the control panel comprises of hydraulic power pack, digital readout system , operating switches, load control values, output print-out of test data.
Feature:
1. Efficient hydraulic power packs
2. Economic machine ideal for site use
3. Designed to meet the need for a simple , economic and reliable means of testing concrete
4. the dimension of the frame allow the testing of cylinder up to 320mm long *160mm motor and any arbitrary size
5. Digital readout is microprocessor controlled instrument which is fitted as standard to all digital machines in the range
6. Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range

Technical details

Mode  YES-2000B
Testing power 2000KN
Measuring range   0-2000KN
Relative indication error  ±1%
Size of the bearing plate 320*260mm
Distance between up and down bearing plates 310-320mm
Piston stroke 50mm
Rated pressure of the hydraulic pump 40mpa
Minimum piston lift speed: 50mm/min
Piston free back speed 20mm/min
Noise ≤80dB
Power   220V

 Packaging & Shipping
1> Inner package: dust-proof plastic bag and strength film
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4<the packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Company Information2000kn Concrete Compression Testing Machine from Chinese FactorySoil Lab Equipment
