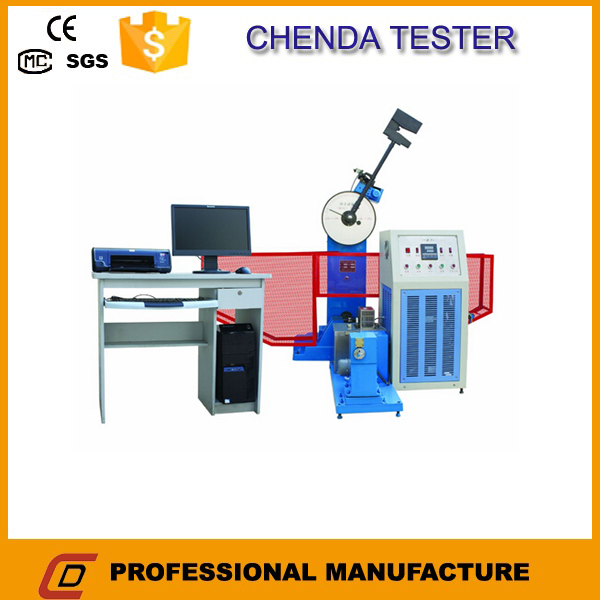

Metal Charpy Impact Testing Machine 300j 500j

Main Advantages:



 Main Functions:
It mainly used to determine the Semi-automatic-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
this machine can be operated semi-automatically. the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.

Technical details:

Specification	JB-300B
Impact energy	300J  150J
Impact velocity	5.2 m/s
Raising angle	150°
Standard span	40mm
Round angle radius of grips	R1-1.5mm
Round angle radius of striking edge	R2-2.5mm
Power supply	3phase,380V,50HZ,180W
Dimension (mm)	2124X600X1340
Net weight	450 kg
Size of specimen	10mm x 10mm x 55mm (U,V 2mm Notches)



Specification	JB-500B
Impact energy	500 J
Impact velocity	5.4 m/s
Raising angle	150°
Standard span	40mm
Round angle radius of grips	R1-1.5mm
Round angle radius of striking edge	R2-2.5mm
Power supply	3phase,380V,50HZ,180W
Dimension (mm)	2124X600X1340
Net weight	750 kg
Size of specimen	10mm x 10mm x 55mm (U,V 2mm Notches)

Standard delivery:
1> big pendulum (300J): 1 PC
2> Small pendulum (150J): 1 PC
3> Span specimen plate (L=40mm): 1 PC
4> Specimen centering plate (L=40mm): 1pc




5> Detaching device: 1 PC
6> Simple-head spanner (S=30mm): 1pc
7> Inner-hexagon spanner (S=12mm): 1pc
8> Anchor bolts M16*30mm: 4pc
9> Jaws (including bracket): 1 set. Notes, has been installed on the host
