| Use: | Truck Trailer |
|---|---|
| Model Number: | LX17420 |
| Brand Name: | LIANGXIANG |
| Place of Origin: | China (Mainland) |
| Max Payload: | 60T |
| OEM No.: | Requirement |
| Size: | 12500*2500*1550mm,optional |
| Certification: | CCC ISO BV |
| Material: | Steel |
| Type: | Semi-Trailer |
| Tire: | Triangle |
| Place of Origin: | Shandong, China (Mainland) |
| Axle: | 3*13T BPW/FUWA |
| Suspension: | Mechanical |
Quick Details
Specifications

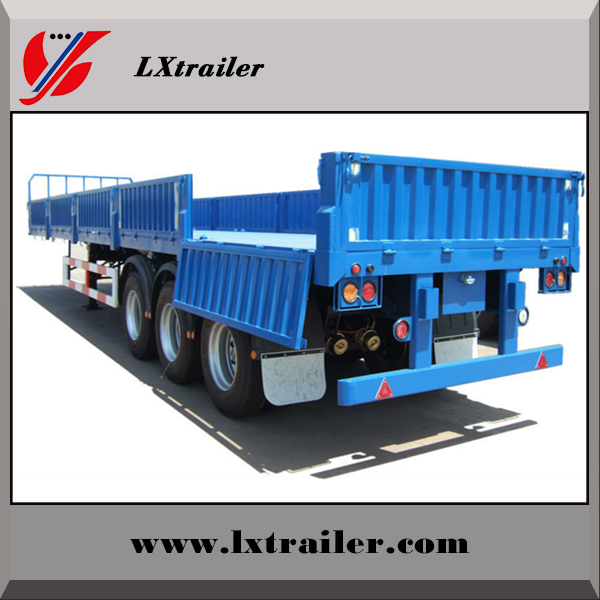

2017 new type Multi-function 40ft Side Wall Truck Trailer /Cargo Semi Trailer for Sale
Specification
Overall Dimension(mm) |
12500x2500x3400 |
Loading Capacity(kg) |
50000 |
Chassis |
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm, width140mm; Middle flange 14mm; Bottom flange 20mm, width 140mm. |
Axle |
FUWA or BPW, 3 units |
Suspension |
Chinese mechanical 3-axle suspension |
Kingpin |
JOST brand, 2" or 3.5" |
Landing Gear |
JOST brand two-speed, manual operating, heavy duty landing gear |
Tire |
12.00R20(Option: 12.00-20, 11.00-20, 11.00R20, 12R22.5) |
Brake System |
WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; with ABS |
Accessories |
One standard tool box, one spare tire carrier |
Drawing of side wall semi trailer:
