Product description

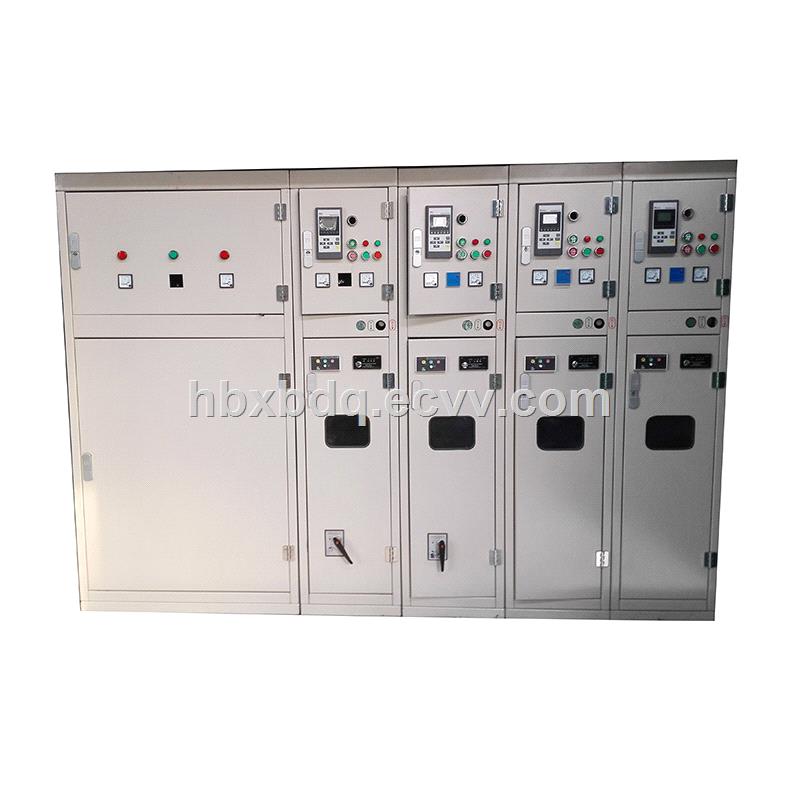

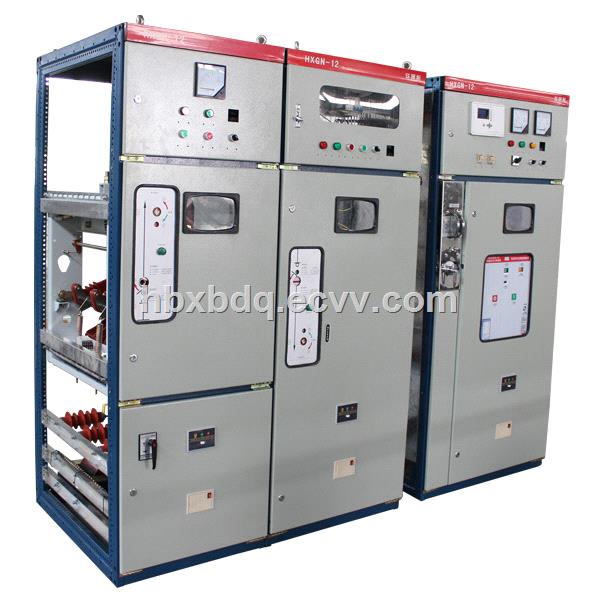

HXGN-12 type box type fixed metal enclosed switchgear (referred to as ring network cabinet) rated voltage 12KV, rated frequency 50HZ AC high voltage electrical equipment, mainly used for three-phase AC ring network, terminal distribution network and industrial power equipment,, the role of the allocation of electricity, but also suitable for box-type substation.
Use environmental conditions
Ambient temperature upper limit + 40 °, lower limit -25 °;
Altitude of not more than 10,000 meters;
Air relative to the daily average of not more than 95%, the monthly average of not more than 90%, steam daily no more than 2.2x10-3Mpa, the average does not exceed 1.8x10-3Mpa;
the surrounding air from the corrosion or flammable gases, water vapor and other pollution significantly;
There is no normal violent vibration.
Features
1, the overall structure of the installation of light and beautiful, can be any combination of installation, easy to extend the infinite extension.
2, can be equipped with SF6 load switch, combination of electrical appliances, but also with the combination of vacuum load switch, the installation size is exactly the same. Small size, maintenance-free, three-phase linkage structure, with a clear isolation fracture.
3, with the load switch, combination of electrical appliances, safe and flexible, can be installed in the side, loading, flip.
4, can be manual and electric operation, and has remote control remote control function.
5, with a good and reliable mechanical linkage, interlock device, in full compliance with the "five anti" function.
6, interlock protection insulated valve, blocking real-time contact to ensure personal safety.
7, color front operation and maintenance, wall installation and reliable.
8, the door is equipped with observation window, you can clearly observe the work of the cabinet parts.
