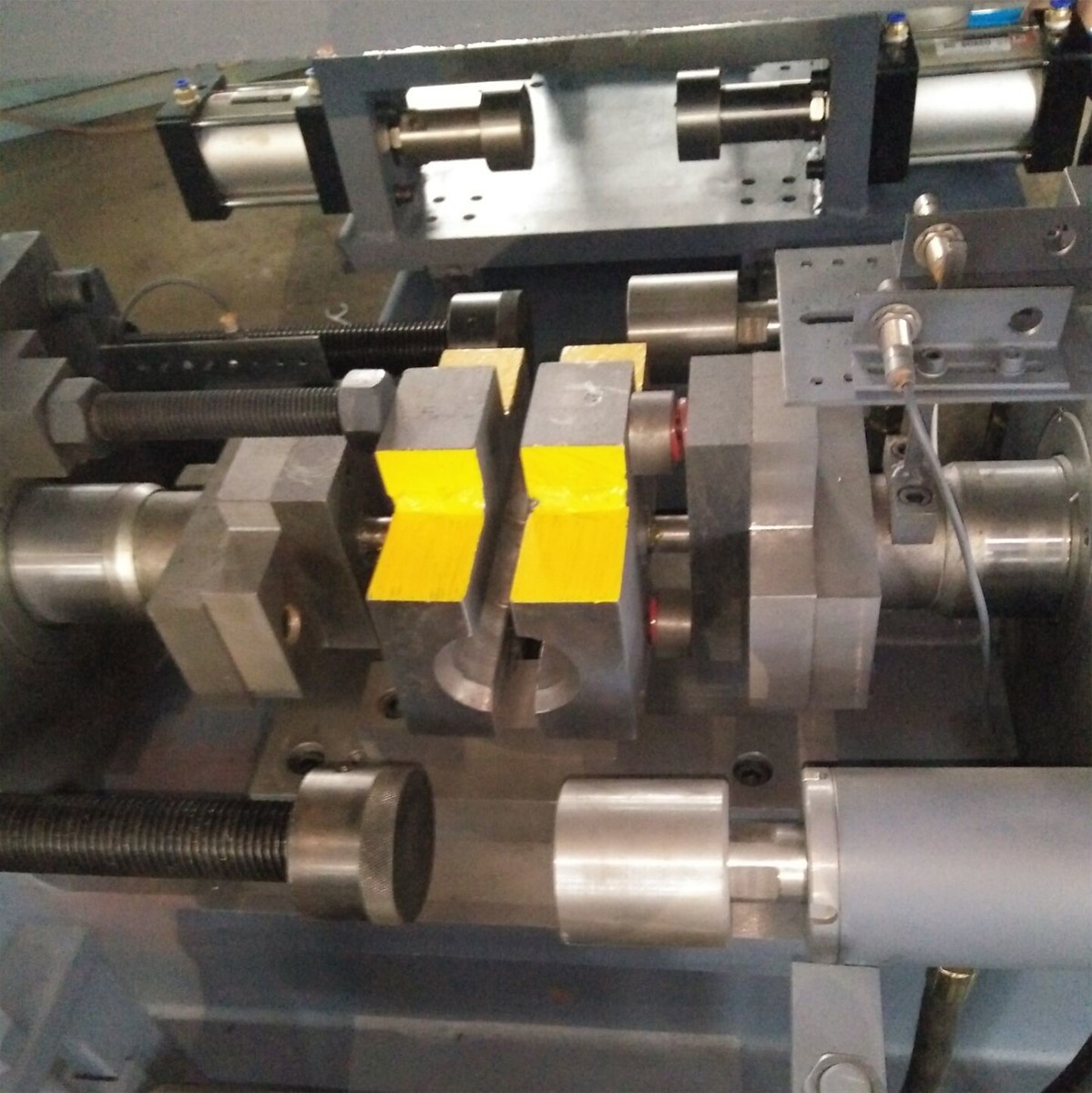

Q46YKCNC Hydraulic round pipe and square pipe punching machine adopts hydraulic power to

Punch holes.Feeding in the workpiece and turning it around are both controlled by servo motor of this

CNC vertical punching machinery.Its punching power is big and can precisely control 3 coordinates.

All the procedure can be directly profiled and input in the conversational touch screen.All the

Information in the touch screen can be automatically chosen to show in Chinese or in English.the

Operation is very convenient,prompt,and accurate.

this large CNC punching machinery with high efficiency is more easily operated  as well as its

Procedure design and more widely used.It's fit for both massive and standard production in many

Industries,such as parts of the car,goods shelf,display shelf,sports equipment and all the steel pipe

Furniture.Also it can be used in boiler,photovoltaic,shipbuilding and other common engineering.

Technical parameter

Main technical data	Unit	Data range
Round pipe diameter	mm	Φ42,50,60,76,89,108
Punching hole range	mm	Φ6-16
Max.Processing effective length	mm	500-6000
Punching speed	Times/min	12
Feeding speed	Mm/sec	200-800
Feeding precision	mm	+0.3
Oil pump motor power	kw	5.5
Hydraulic system pressure	Mpa	14
