Product description

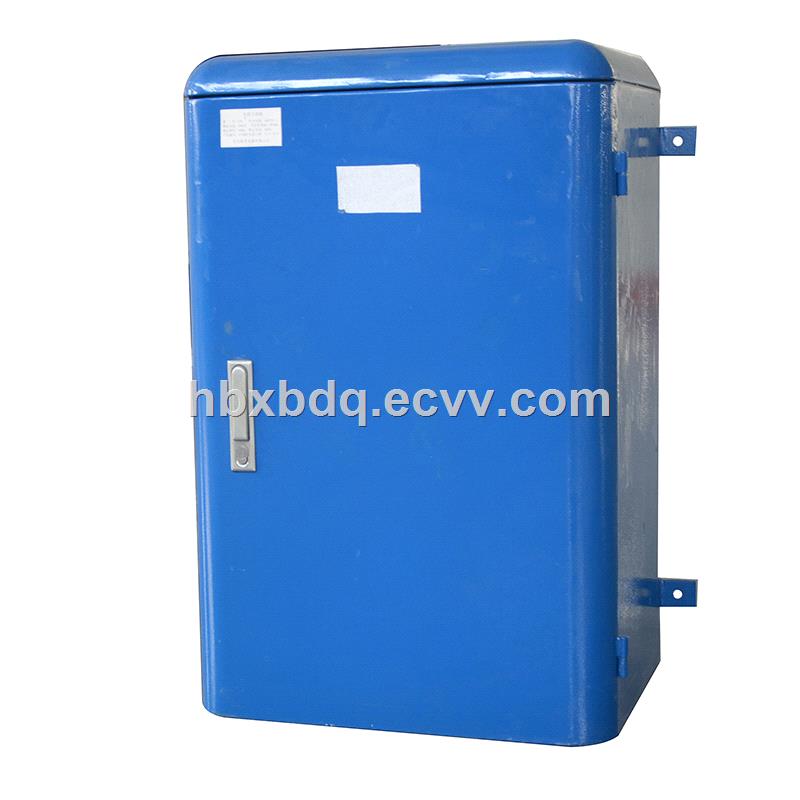

Low-voltage cable splitter box for low-voltage transmission and distribution system user units and more complex and so on the characteristics of the design. Low-voltage cable branch box can greatly increase the outlet circuit, and improve the safety and reliability of electricity, while regulating the outdoor low-voltage power distribution system management and maintenance of a great help. Low-voltage cable branch box of the inlet and outlet can choose a cross-section of 10-400m2 low-voltage power resistor. the overall size of the low-voltage cable branch box and the installation area are less than one-third the size of the same product. and installation and maintenance of single, no fire risk, especially for urban streets, universities, high-grade business district, office buildings. Senior hotel, high-grade villa. State organs, residential areas and high-rise buildings and other public places in the three-phase or single-phase transmission or distribution or single-phase lighting system as the acceptance or distribution of electricity.
Model Description
Use environmental conditions
Altitude: ≤1000m (high altitude area can be customized according to user requirements)
Ambient temperature: -25 ° C- + 40 ° C
Air relative to temperature does not exceed 90% (at 25 ° C)
Outdoor wind speed of not more than 35m / s
the ground slope is not greater than 5
Earthquake level acceleration of 0.4m / s; vertical acceleration of 0.2m / s
the installation site should be selected without fire, explosion hazard, serious pollution, chemical corrosion and strenuous exercise place.
Users with special requirements can be resolved in consultation with the Company.
Technical Parameters
Rated voltage: 400V-220V;
Rated frequency: 50Hz;
Rated current: 600A-100A;
Main bus rated short time withstand current: 20kA;
Main switch breaking capacity: 20kA;
Protection class: IP34D;
Features
1. Compact, small size;
2. Good natural ventilation system;
3. Lighting electricity, can achieve unipolar segment;
4. High protection level;
5. Shell for the stainless steel or cold plate spray two
