| General Use: | Commercial Furniture |
|---|---|
| Type: | Laboratory Furniture |
| Model Number: | FH1000(A),FH1200(A), FH1500(A), FH1800(A) |
| Brand Name: | BIOBASE |
| Place of Origin: | China (Mainland) |
| Size: | 1040*800*2200mm |
| Material: | Metal |
| Metal Type: | Stainless Steel |
| Work Surface Height: | 850mm |
| Max Opening: | 500mm |
| Air Velocity: | 0.3~0.8m/s |
| Noise: | <60dB |
| Exhaust Duct: | PVC, Standard length: 4 meters. |
| Pipe Strap: | 1 pc |
| UV Lamp: | Emission of 253.7 nanometers for most efficient decontamination |
| Blower: | Built-in centrifugal blower; Speed adjustable. |
| Front Window: | 5mm toughened glass; Motorized; Height adjustable. |
| Power Supply: | AC220V, 50/60Hz; 110V, 60Hz |
Quick Details
Specifications

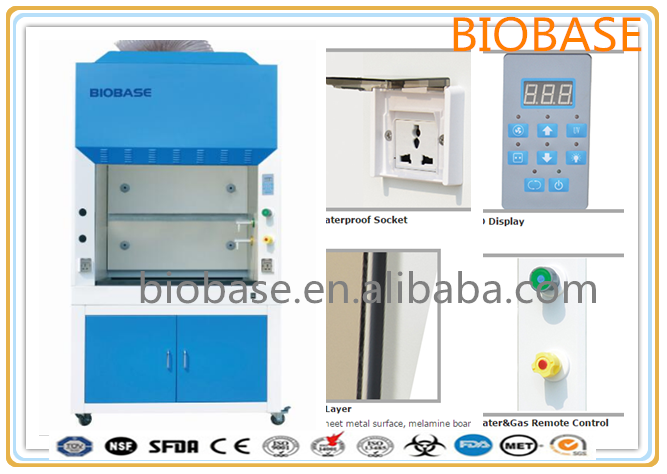

Biobase double operator use Fume Hood with caster FH1800(A)
Advantage:
after-sales service:
Main product:
Advantage:
1. UV lamp for sterilization.
2. Adjustable air speed:9 levels.
3. Motorized front window, height adjustable.
4. Microprocessor control system, LED display.
Technical Parameters:Model |
FH1000(A) |
FH1200(A) |
FH1500(A) |
FH1800(A) | ||
External Size (W*D*H) |
1040*800*2200mm |
1240*800*2200mm |
1540*800*2200mm |
1840*800*2200mm | ||
Internal Size (W*D*H) |
820*670*730mm |
1020*670*730mm |
1320*670*730mm |
1620*670*730mm | ||
Work Surface Height |
850mm | |||||
Max Opening |
500mm | |||||
Air Velocity |
0.3~0.8m/s | |||||
Noise |
≤60dB | |||||
Exhaust Duct |
PVC, Standard length: 4 meters. | |||||
Φ300mm | ||||||
Pipe Strap |
1 PC | |||||
Fluorescent Lamp |
14W*1 |
21W*1 |
28W*1 |
36W*1 | ||
UV Lamp |
Emission of 253.7 nanometers for most efficient decontamination | |||||
Blower |
Built-in centrifugal blower; Speed adjustable. | |||||
Front Window |
5mm toughened glass; Motorized; Height adjustable. | |||||
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||||
Consumption |
400W |
400W |
500W |
500W | ||
Material |
Exterior |
Cold-rolled steel with anti-bacteria powder coating. | ||||
Interior |
High grade melamine board with good acid and alkali resistance function | |||||
Work Table |
Chemical resistant phenolic resin | |||||
Stand Accessories |
UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet Total load of 2 waterproof sockets: 500W 4-meter PVC exhaust duct, pipe strap | |||||
Optional Accessory |
Active carbon filter | |||||
Gross Weight |
230kg |
270kg |
370kg |
420kg | ||
Package |
Main Body |
1190*990*1690 mm |
1390*990*1690 mm |
1690*990*1690mm |
1990*990*1690mm | |
Base Cabinet |
1290*990*980mm |
1390*990*980mm |
1690*970*970mm |
1990*990*980mm | ||
| 1. 100% product quality guarantee |
| 2. Quick delivery time |
| 3. Promptly reply you within 24 hours |
| 4. OEM service |
| 5. Giving best service and sincere greetings to our guest |
Main product:
Our main products are main divided into 4 parts:
I. Medical Isolation Equipment like Biosafety Cabinet(Class I/II/III), Laminar Flow Cabinet,
Fume hood
II. Cold-chain products like Medical Refrigerator&Deep Freezer etc;
III. Analyzer like Biochemistry Analyzer, Elisa Reader&Washer etc;
IV. clean room construction, class 10,000 and class 100 clean room and
Laboratory construction, mobile laboratory constructed on trucks containers.
