| Operating Temperature: | -55 C / +255 C |
|---|---|
| Temperature Coefficient: | Positive and negative 350 / -1000 |
| Rated Power: | 5w ~ 5000w |
| Resistance Tolerance: | 0.5% 1% 5% 10% |
| Resistance: | 0.01 ohm to 100k ohm |
| Package Type: | Throught Hole |
| Technology: | High power resistors aluminum resistors. |
| Type: | Fixed Resistor |

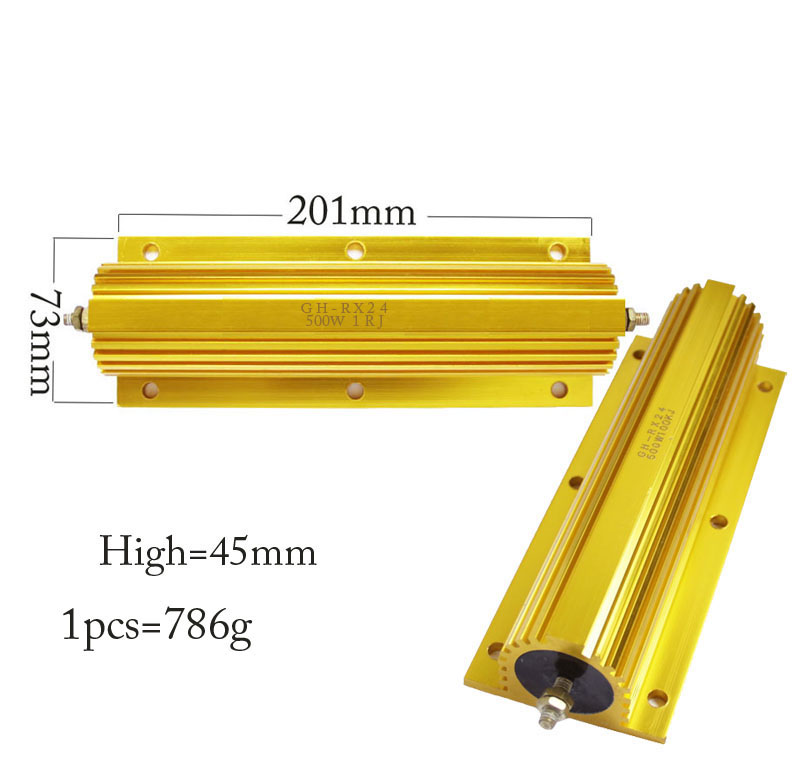

| Model Number: | 500w 1 ohm |
| Brand Name: | Moses Eli |
| Place of Origin: | China (Mainland) |
Quick Details

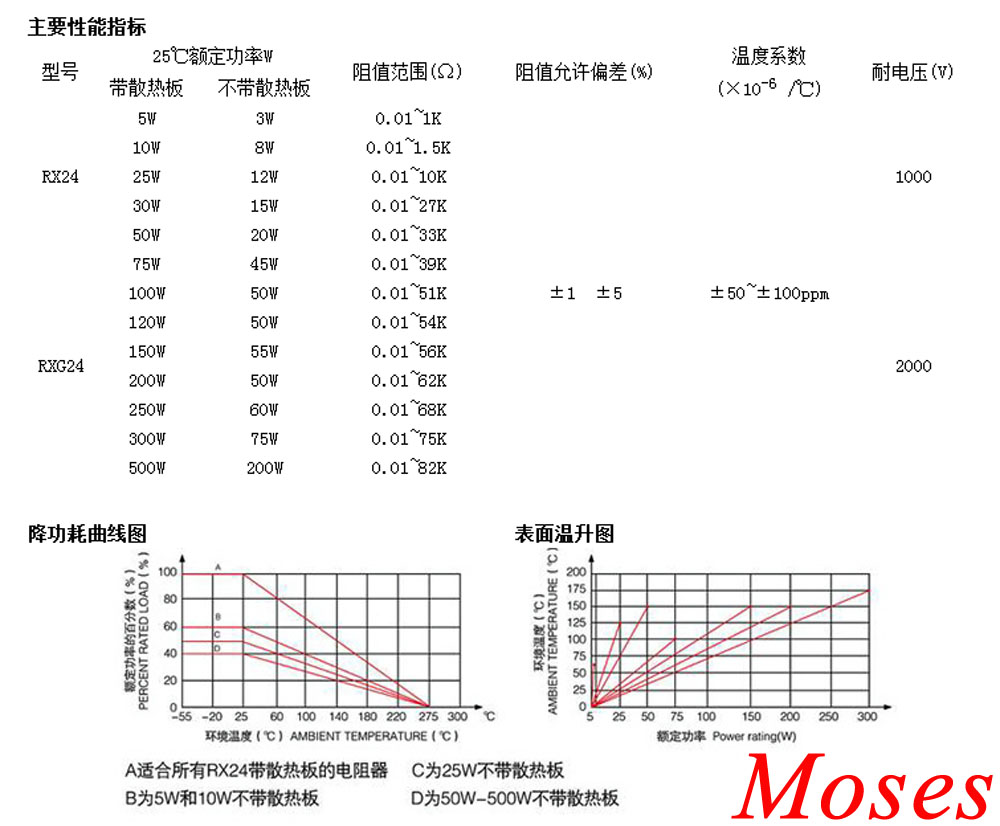

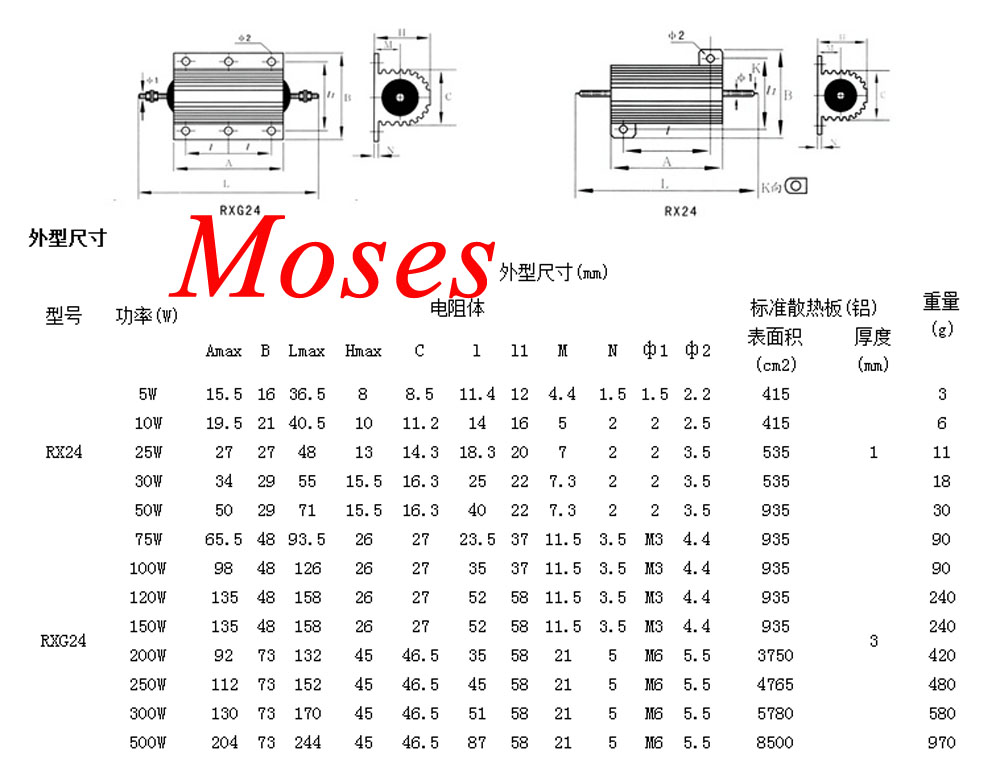

Specifications
Features:
1. Temperature Coefficient: ± 250ppm/℃
2. Short time overload: ΔR≤±(1% R0+0.05Ω)
3.Tolerances: ±5%(J),±10%(K)
4.Climatic category: 55/155/21
5.Temperature range: -55℃-275℃
6.Derating: the rated power of the resitor will be derate from 100% to 0 when the working
Temperature rise from70℃to200℃
7.Load life: ΔR≤±(5% R0+0.1Ω)
8.Damp heat,steady state: ΔR≤±(5% R0+0.1Ω)
9.Terminal tensile strength: ΔR≤±(1% R0+0.05Ω)
10. Resistance to sold,heat: ΔR≤±(1% R0+0.05Ω)
11. Solderability: IEC68-2-20235℃±5℃,2±0.5s(Solder bath method
