Product Main

Specifications

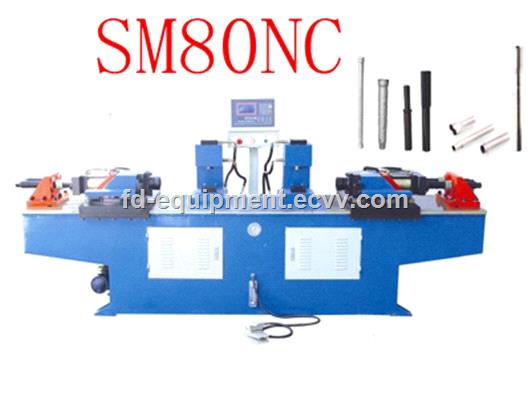

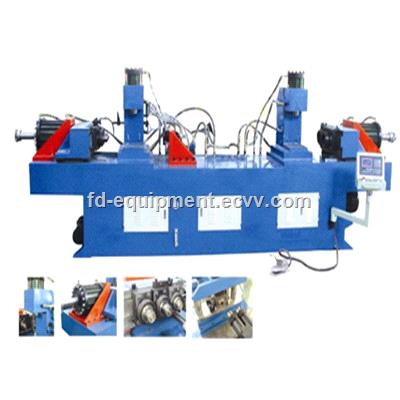

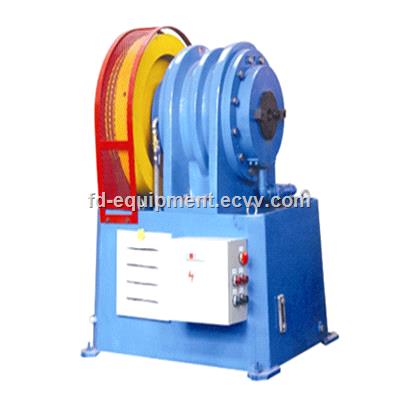

Tube End Forming MachineTube End Forming MachineTube End Forming Machine
Product Description

1.Main specification:

1). MIcrocomputer control, hydraulic pressure,word steadily.

2). THe motion pedal switches, tightly stops, continuously tightly stops, high security.

3). It can be Carry on the pipe contracting, pipe expanding, pipe Obturating and other

     Kinds of processing. It is the ideal pipe-end shaping machinery.

 4).the mold replacement is simple which is advantageous for the elastic production.



Specifications
ZSG50NCB taper tube end forming machine,
1. Noise free
2. Forming tapper pipe
3. High efficiency

ZSG50NCB taper pipe  end forming machine, special make for taper pipe, can run without abrasion, and the products have a good repeatability, which are fit for the treatment of the pipe end in iron pipes, furniture, automobile air conditioners and fuel oil pipes.

Specification/Model		 ZSG50NCB
Max processing capability Φ50mm×2mm
Contracting capability one time 290mm
Forming time 7-30s/time
Switching quantity of the die 50mm
Power of the motor 4kw
Size 850mm x 550mm x 550mm
Weight 750kg
