| Type: | Spray Booths |
|---|---|
| Brand Name: | ALF brand |
| Voltage: | 380V/50HZ for 3PH |
| Internal Size: | 3000*1200*2200MM |
| Power: | 7KW |
| Type: | water based spray booth |
| Model Number: | ALF |
| Place of Origin: | China (Mainland) |
| External Size: | 3000*1200*2200MM |
| Product Name: | Used Water Curtain Spray Paint Booth for Sale |
| Booth Material: | galvanized steel plate |
| fan: | 2*3kw |
Quick Details
Specifications

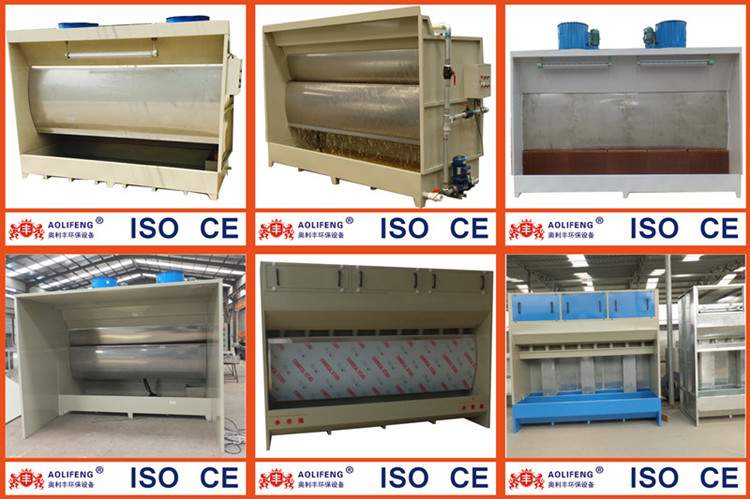

Used Water Curtain Spray Paint Booth for Sale
| Water Curtain Spray Booth ALF-W3000 | |
| Outside Size |
3000*1200*2200mm(L*W*H) |

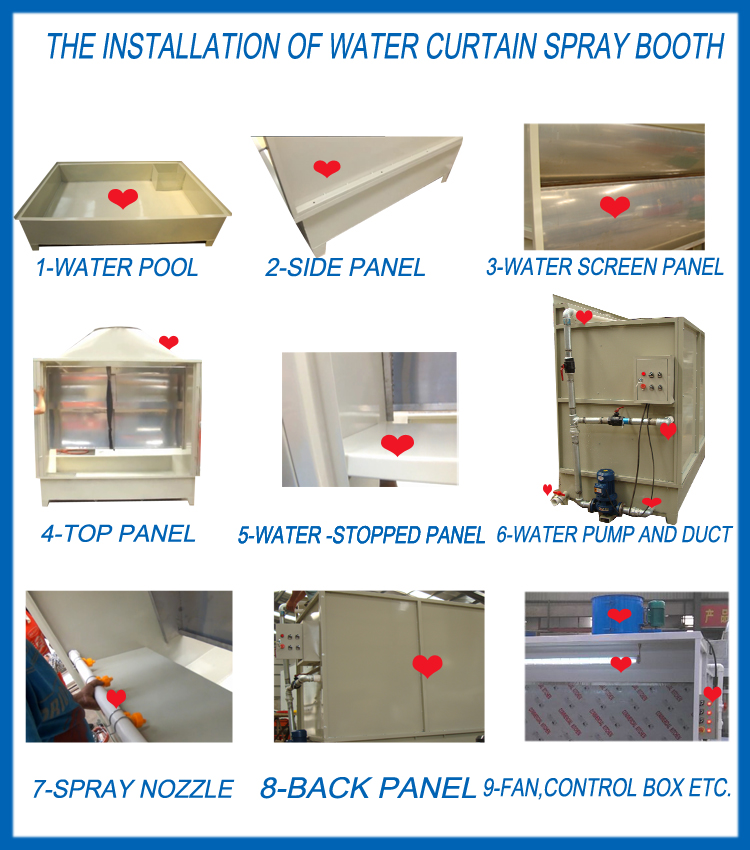

| Booth System |
(1) Side Panel:Material-1.5mm galvanized steel panel |
| (2) Rear Panel:Material-1.5mm galvanized steel panel | |
| (3) Water Pool:1pcs,Size-3000*1200*300mm(L*W*H), Material-2mm galvanized steel panel | |
| Filter System |
(1) Water Screen Panel:1pcs,Material-1mm stainless steel panel |
| (2) Spray Nozzle:Size-D50mm,Material-PVC | |
| (3) Water-stopped Panel:1pcs,1.2mm galvanized steel panel | |
| (4) Water Duct:Size-D50mm,Material-galvanized round tube | |
| (5) Water Pump:1pcs,1.1KW(380V,50Hz,3PH) | |
| Lighting System |
(1) Explosion-proof Light:1pcs,40W(220V,50Hz,1PH) |
| Ventilation System |
(1) Axial Flow Fan:2pcs,3KW(380V,50Hz,3PH) |
| Control System |
(1) Electrical Control Box:DELIXI Brand electrical appiance(380V,50Hz,3PH) |
| (2) Power swtich,emergency switch,light switch,fan switch,pump switch | |
| Power | about 7KW |
