Brief Introduction:

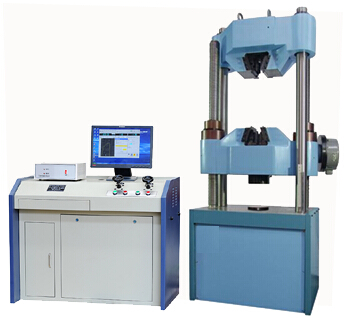

WAW-1000C Hydraulic Universal Testing Machine with Tensile Compression Test  is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nonmetal materials under high toughness and hardness against extreme big loading force. by using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameter like loading force, stroke etc. The servo system will provide on line close loop control and constant parameters control. The test software is able to create customized testing methods and setup testing report in only a few steps. WAW series is widely used in different inspection department, engineering area, universities and institutes.
Load Frame:
the oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. the lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.
Standards: ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN, EN10002-2, ISO6892, BS4449:1998 and other international standards.
Measuring System:
the machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. the loading force display on computer
Features:
1> Full computer controlled of testing process.
2> Overload protection will secure operators
3> Adopt oil-hydraulic automatic clamps which can be operated from separate control box
4> Programmable testing software makes LCF testing or cyclic testing become available
Wedge tension jaw processed by advanced technology; increase the stiffness of crosshead under high load and high intensity test.
5> Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing standards.
6> Report guide will create your testing report in only three steps
Technical Parameter:
Specification                  WAW-1000C
Max. Capacity (KN)        1000
Relative error of reading   ≤±1%
Clamping method                Hydraulic Power
Round specimen clamping range(mm):Φ13~Φ26 Φ26~Φ40 Φ40~Φ60
Lat specimen clamping thickness(mm):0-40
Flat specimen clamping width(mm):110
Max. Tension test space (mm):620
Max. Compression test space (mm):620
Cabinet dimension(mm):1140*780*940
Frame dimension(mm):900*730*2290
Weight: Approx.3500 kgs
Column net distance (mm):580
Power supply (KW):380V 50HZ
Safety devices:Software and machinery protection
Span of bending roller (mm):400
Width of bending roller (mm):140
Diameter of bending roller (mm):Φ40
Compression platen size (mm):200*200
Max. Piston stroke (mm):250
Piston max. Speed (mm/min)80
