| Model Number: | ES3112-3LCD40 |
|---|---|
| Brand Name: | ETU |
| Place of Origin: | China (Mainland) |
| Material/Components: | Zinc alloy +PCB board |
| Safety/Quality Approvals: | ISO9001:2008;CE;RoHs;FCC |
| Data rate: | 1.25G |
| DDM: | Yes |
| Place of origin: | Made in China |
Quick Details
Specifications
GLC-LH-SM-40 1.25G 1310nm SM 40KM SFP Optical Transceiver Module SFP-GE-LH40-SM1310
Specification
Data rate: 1.25G
Type: SFP
Wavelength: 1310nm
Distance: 40KM
Connector: LC
DDM: Yes
Place of origin: Made in China
Port:Shenzhen
Specification
Data rate: 1.25G
Type: SFP
Wavelength: 1310nm
Distance: 40KM
Connector: LC
DDM: Yes
Place of origin: Made in China
Port:Shenzhen
Features
1. Data-rate of 1.25Gbps operation
2.1310nm DFB laser and PIN photodetector for 40km transmission
3. Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
4. Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
5. Compatible with SONET OC-24-LR-1
6 Compatible with RoHS
7. 3.3V single power supply
Optical module used in Ethernet, SDH, Sonet,Can be compatible with CISCO 2900 Series,CISCO 4000 Series, CISCO 5000 Series,HUAWEI, the pole into, D-Link, ZTE, HP, juniper and other equipment.
Our products require strict testing standards,standard packing form,to provide customers with quality service and timely delivery cycle.

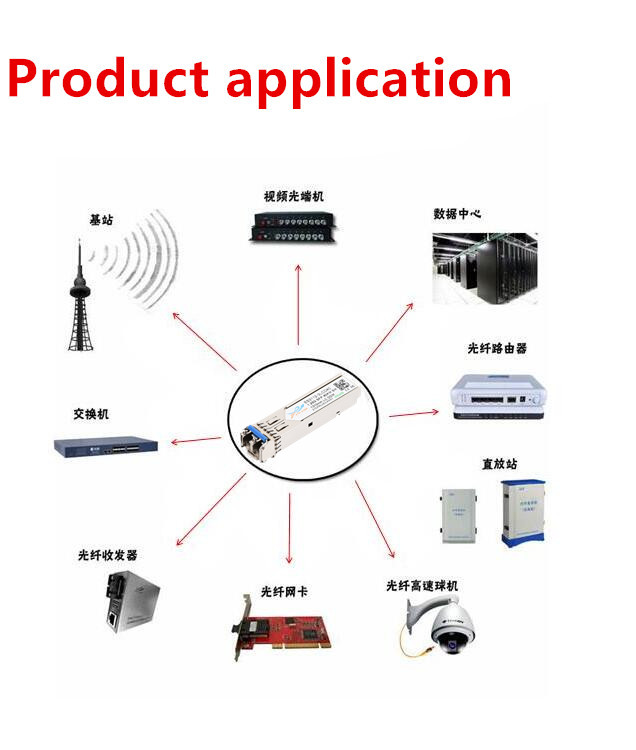

Scope of application: switch, Ethernet, data center, SDH, SONET, ATM
Package type: Individual package or 10pc/package
Compatible list:
Our products require strict testing standards,standard packing form,to provide customers with quality service and timely delivery cycle.
Scope of application: switch, Ethernet, data center, SDH, SONET, ATM
Package type: Individual package or 10pc/package
Compatible list:
| ETU Module | Descripttion | Cisco | HP | Juniper | Alcatel | Extreme | 3Com | Huawei | D-Link | Planet |
| ES8512-3LCD05 | 1.25G SFP 850nm 550M DDM | GLC-SX-MM | J4858C | EX-SFP-1GE-SX | SFP-GIG-SX | 10051 | 3CSFP91 | SFP-GE-SX-MM850-A | DEM-311GT | MGB-SX |
| ES3112-3LCD10 | 1.25G SFP 1310nm 10KM DDM | GLC-LH-SM | J4859C | EX-SFP-GE-LX | SFP-GIG-LX | 10052 | 3CSFP92 | SFP-GE-LX-SM1310-A | DEM-310GT | MGB-LX |
| ES3112-3LCD40 | 1.25G SFP 1310nm 40KM DDM | GLC-LH-SM-40 | SFP-GIG-LH40 | SFP-GE-LH40-SM1310 | MGB-L30 | |||||
| ES5512-3LCD80 | 1.25G SFP 1550nm 80KM DDM | GLC-ZX-SM | J4860C | EX-SFP-1GE-LH | SFP-GIG-LH70 | 10053 | 3CSFP97 | SFP-GE-LH70-SM1550 | DEM-315GT | MGB-L70 |
| ESP8592-3LCD03 | 10G SFP+ 850nm 300M DDM | SFP-10G-SR | J9150A | EX-SFP-10GE-SR | ISFP-10G-SR | 10301 | 0231A0A6 | |||
| ESP3192-3LCD10 | 10G SFP+ 1310nm 10KM DDM | SFP-10G-LR | J9151A | EX-SFP-10GE-LR | ISFP-10G-LR | 10302 | ||||
| ESP5592-3LCD40 | 10G SFP+ 1550nm 40KM DDM | SFP-10G-ER | J9153A | EX-SFP-10GE-ER | ISFP-10G-ER | 10309 | 0231A0A8 | |||
| ESP5592-3LCD80 | 10G SFP+ 1550nm 80KM DDM | SFP-10G-ZR |
