| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE/ISO9001 |
| Dimension(L*W*H): | L3900*W850*H1500mm |
| Model Number: | XBL-100A |
| Brand Name: | XINBAOLONG |
| Place of Origin: | China (Mainland) |
| Power: | 2.1KW |
| Voltage: | 220V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Paper,Plastic |
| Packaging Type: | Bags,Film,Pouch,Stand-up Pouch |
| Application: | Commodity,Food,Machinery & Hardware,Medical |
| Function: | Labeling,Sealing,Slitting,Wrapping |
| Condition: | New |
Quick Details
Specifications

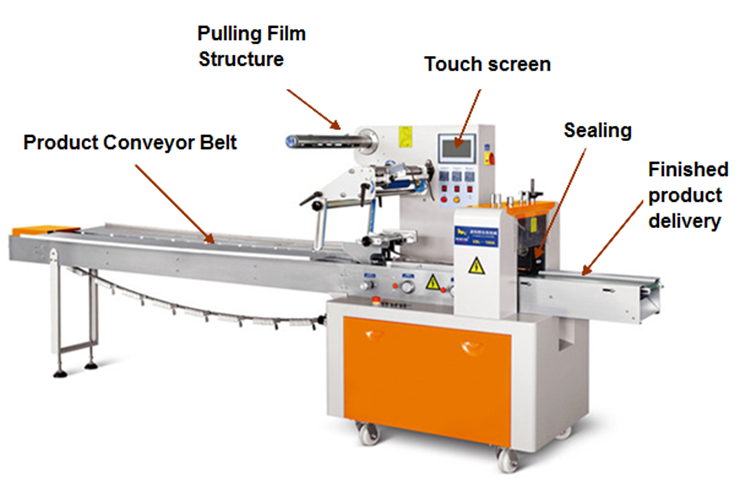

XBL-100A automatic horizontal packing machine
Technical parameters:
| Model | XBL-100A |
| Packing speed | 35-225bag/min |
| Bag size | L(65-160)mm* W(35-120)mm* H(5-35)mm |
| Film width | 90-250mm |
| Packing material | OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL |
| Dimension | (L)3900mm *(W)850mm*(H)1500mm |
| Heating power | 2.1kw |
| Motor power | 0.55+0.75kw |
| Total power | 3.4kw |
| Overall weight | 550kg |
Scope of application:
Applicable for packing various regular objects, such as biscuits, pie, chocolate, bread, instant noodle, ice cream, moon cake, candy, medicine, hardware, paper boxes, plates, etc.
Technical characteristics:
1. the bag length is free of manual setting, the equipment automatically detect and set the length.
2. Simplified mechanic gearing, easy to maintain, little vibration, little wear, and long life.
3. the main control circuit takes the single chip developed by our own company, digital screen display and controlled by transducer. Perfect interface between operator and machine, convenient operation.
4. Dual frequency conversion control, bag length can be set and cut on one step, saving time and film.
5. High sensitivity photoelectric eye tracking automatically and accurately.
6. Independent temperature control for each sealer to make sealing more beautiful and stable, suitable for variety of flexible packing material.
