| Type: | Sun Sheets & PC Embossed Sheets |
|---|---|
| Brand Name: | SHENGHANG |
| Type: | Twin Wall Hollow |
| color: | Clear,Blue,Green,Grey,Bronze,Yellow,Red,Orange,White |
| Thickness: | 3mm~12mm |
| Certification: | SGS, RoHS, ISO9001 |
| Model Number: | SH-HT01 |
| Place of Origin: | China (Mainland) |
| Color: | Clear,Blue,Green,Bronze,Orange,Yellow,Opal,Red |
| Thickness: | 4mm,6mm,8mm,10mm |
| Standard Size: | 2100*5800mm, 2100*6000mm |

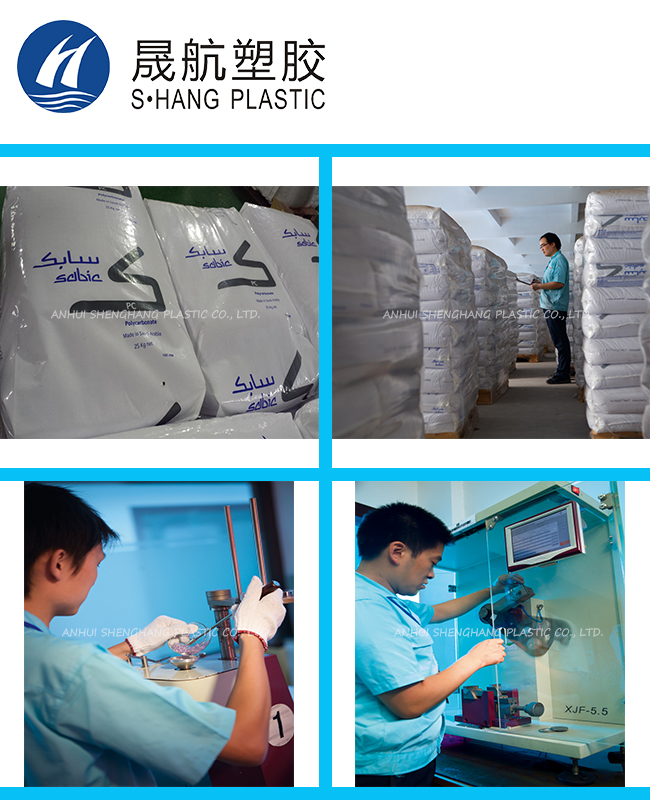

| Raw Material: | 100% Polycarbonate(PC) Resin |
| UV Coating: | 50 Micron |
| Brand of Raw Material: | Covestro, Sabic |
| Delivery Time: | 7~10 days |
| Certification: | SGS, RoHS, ISO9001 |
| Quality Grade: | Grade A, Grade B |
Quick Details
Specifications

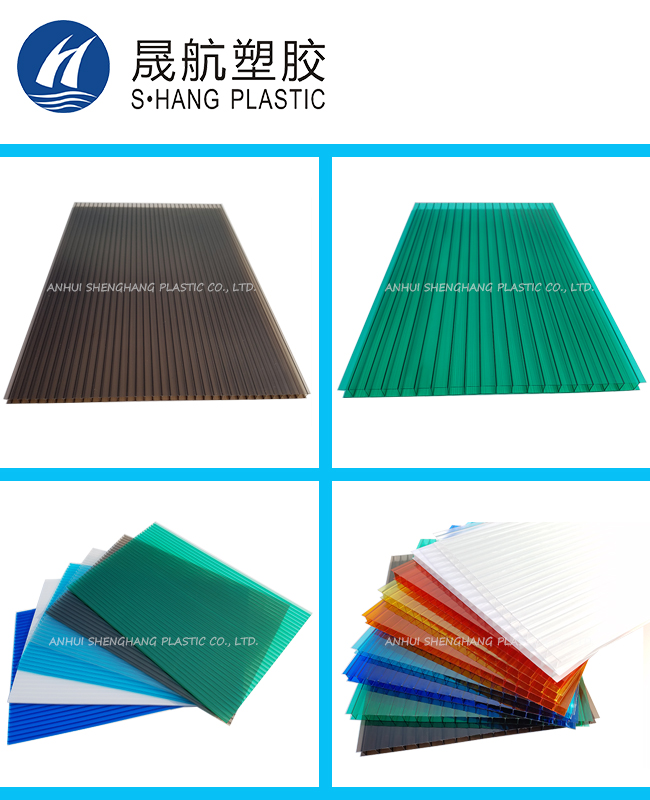

Polycarbonate hollow panel Has the characteristics of light weight, high strength and good thermal insulation properties.Twin-wall polycarbonate hollow panel Has outstanding light transmittance, easy to install and process, it is widely used in ordinary architectural lighting needs, such as building roofs, greenhouses, parking sheds and so on.the advanced UV co-extrusion technology ensures the twin-wall sheets strong UV Resistance, which can meet the 10 years quality assurance under the outdoor conditions.
SPECIFICATION
1) Thickness:3mm-12mm(Mainly 4mm/6mm/8mm/10mm)
2) Standard width and length:2100*6000mm & 2100*5800mm &2100*11800mm
3) Dimensions and Colors both can be customized.
4) both sides covered with PE protective film.the Printing on PE film can be customized.
QUALITY GRADE
| GRADE | QUALITY | MATERIAL | UV COATING | WARRANTY |
| A | BEST | 100% NEW | 50 UM | 10 YEARS |
| B | COMMON | 70% NEW | 30 UM | 5 YEARS |
FEATURE
1) Light weight:Only 1/12 of the weight of glass of the same thickness
2) High impact strength:80 times that of glass, 15 times that of acrylic sheet
3) Fire retardancy:Rated class B1
4) Good Light transmission:up to 85%
5) with UV protection and thermal insulation
6) Excellent physical, mechanical, and electrical properties
7) Temperature resistance range:-40 ~ +120°C
TECHNICAL DATA
| Thickness | Structure | Weight | Min.Bend Radius(mm) | K value |
| (mm) | (kg/sqm) | (W/M2K) | ||
| 3 | Twin-wall (Rectangle) |
0.9 | 525 | 4.22 |
| 4 | 1.0 | 700 | 4.00 | |
| 5 | 1.1 | 875 | 3.80 | |
| 6 | 1.3 | 1050 | 3.60 | |
| 8 | 1.5 | 1400 | 3.30 | |
| 10 | 1.7 | 1750 | 3.00 | |
| 8 | Triple-wall (Rectangle) |
1.6 | 1400 | 2.92 |
| 10 | 1.8 | 1750 | 2.70 | |
| 12 | 2.0 | 2100 | 2.60 | |
| 14 | 2.4 | 2450 | 2.40 | |
| 16 | 2.7 | 2800 | 2.27 |

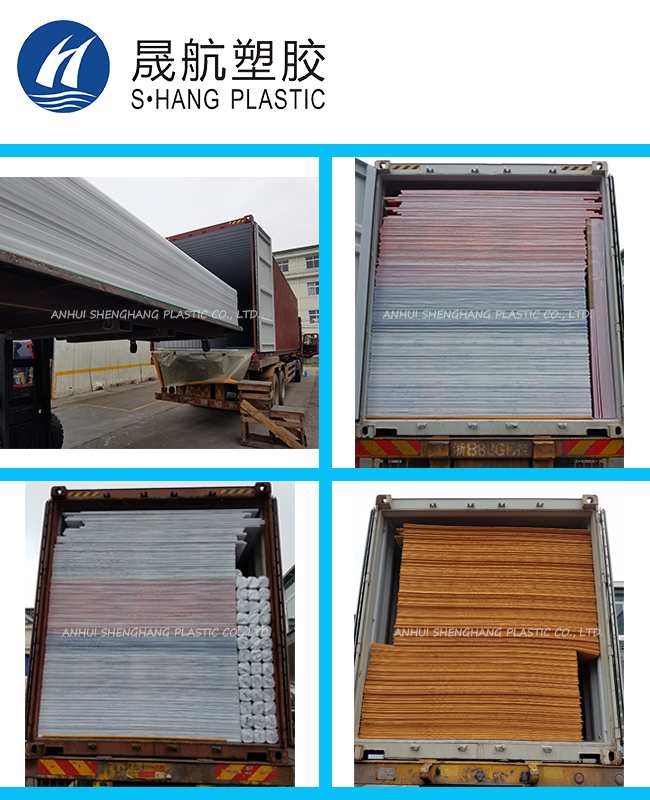

LOADING QTY.
| Thickness(mm) | Specification(mm) | Quantity for 20GP | Specification(mm) | Quantity for 40HQ |
| (PCS) | (PCS) | |||
| 4 | 2100*5800 | 550 | 2100*6000 | 1300 |
| 6 | 2100*5800 | 380 | 2100*6000 | 880 |
| 8 | 2100*5800 | 290 | 2100*6000 | 670 |
| 10 | 2100*5800 | 235 | 2100*6000 | 535 |
APPLICATION
1.Awning for stadium, bus stop, airport.
2.Lighting system for passage, walkway, entrance of subway.
3.Agriculture greenhouse, canopy for vegetables, animals, flowers.
4.Heat insulation, soundproof for expressway, buildings.
5.Bus stop, advertising lamp box, canopy for ATM.
6.Lighting decoration for workshop, commercial canopy, villas.
7.Lighting system for skylight, cellar, dome.
8.Decoration panel for inner/outer wall, roof.
