| Feature: | Bridge Crane |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year |
| Certification: | ISO |
| Model Number: | LD LH CD |
| Brand Name: | nucleon |
| Place of Origin: | China (Mainland) |
| Span: | 7.5m to 31.5m |
| Max. Lifting Height: | 30m |
| Max. Lifting Load: | 550Ton |
| Rated Lifting Moment: | 550Ton |
| Rated Loading Capacity: | 550Ton |
| Application: | workshop |
| Condition: | New |
| Duty class: | A3~A7 |
Quick Details
Specifications
Electric hoist overhead crane for sale
1.Double beam Overhead crane (bridge crane, EOT crane) is applied in open warehouse or rail sideways to conduct common loading unloading and material handling works. It is a heavy duty type overhead crane that satisfy frequenty using.
2. this overhead crane(bridge crane, EOT crane) is composed of bridge, travelling mechanisms, trolley, electric equipment. the bridge frame adopts box welded structure, the crane travelling mechanism adopts separate drive withe motor and speed reducer. All mechanism are controlled in driver's cabin. Power supply adopts cable festoon and sliding wire, select one when ordering.
3. There are some sample capacty of this overhead crane as follows: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 75/20T, 100/20T, 100/30T, 125/30T, 150/30T, 160/32T, 200/50T, 400/80T, 550/250T.
4. the Duty class are A5~A7(Heavy duty).
5. the span of overhead crane from 7.5m to 31.5m.
6. the control model: Cabin control or remote control.

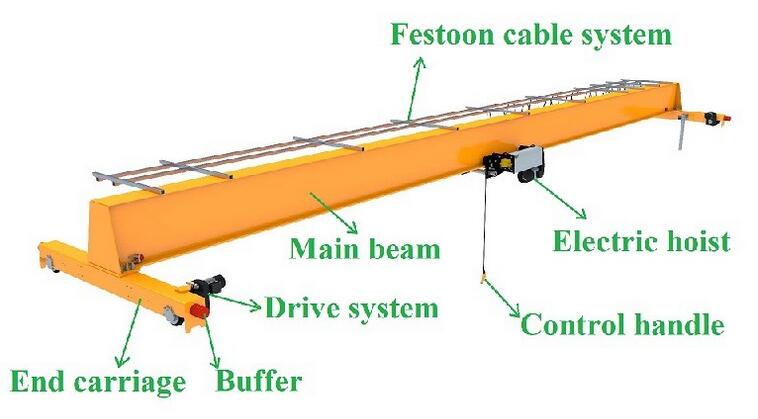

1. LD model Single girder Bridge craneIs has one main beam only.
2. this Bridge craneIs characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriage are made by U-section steel plate.
3. this BRidge craneIs used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set, the electric hoist is travelling under crane beam.
4. this BRidge crane is medium duty class overhead crane, the capacity from 1ton to 20 tons. the span from 7.5m to 35m, the duty grade is A3-A4. Working temperature within -20 to +42 centigrade.
5. this BRidge crane (EOT crane) is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.
for more details, please Contact us via Info@Nucleoncranegroup. com
