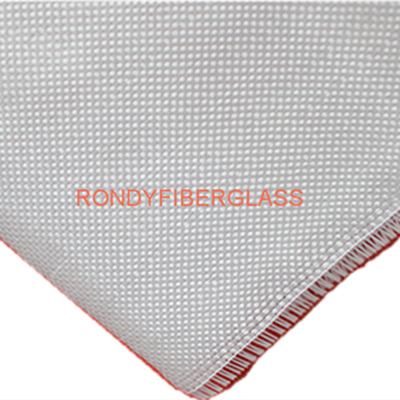

Fiberglass Cloth is an engineering material, which has many excellent characteristics, Such as anti-burning, corrosion resistant, stable structure, heat-isolating, Minimum elongated shrinkage, high intensity.



this New material product has already covered many domains such as electric Appliance, electronic, transportation, chemical engineering, architectural Engineering, heat insulation, sound absorption, fire prevention and Environmental protection, etc



According to fabric organization structure and appearance, there are such kinds of Products: plain weave, twill weave, satin weave.







Technical Data:



Product Code	Weave Structure	Density  Counts/cm		Weight (±5%)		Thickness(±10%)		Color
		Warp	Weft	g/m2	Oz/yd2	mm	inch
RD7628	Plain	18	12	200	5.9	0.20	0.008	White
RD280	Plain	12	9	280	8.3	0.30	0.012	White
RD310	Plain	12	10	310	9.1	0.32	0.013	White
RD3732	Twill	18	10	430	12.7	0.43	0.017	White/yellow
RD600	Plain pane	15	14	600	17.7	0.60	0.023	White/yellow
RD3784	Satin	18	12	840	24.8	0.90	0.035	White/yellow
RD3788	Satin	18	12	1750	50.1	1.65	0.067	White/yellow
