Product Main

Quick Details

Brand Name: Golden
Rated Voltage: 230
application: factory,residence,shopping center,outdoor
Material: PC and ABS
name: HA distribution box
Model Number: GHA-4P
Place of Origin: China (Mainland)
Size: 140*140*100mm
Color: Grey
IP class: IP65
Cover lock type: push type opening and closing
Poles: 4p,8p,12p,18p,24p
Warranty: 18months
Delivery time: depends on the quantity
Mounting: panel mounting
Quality: Top
Port: Guangzhou

Specifications

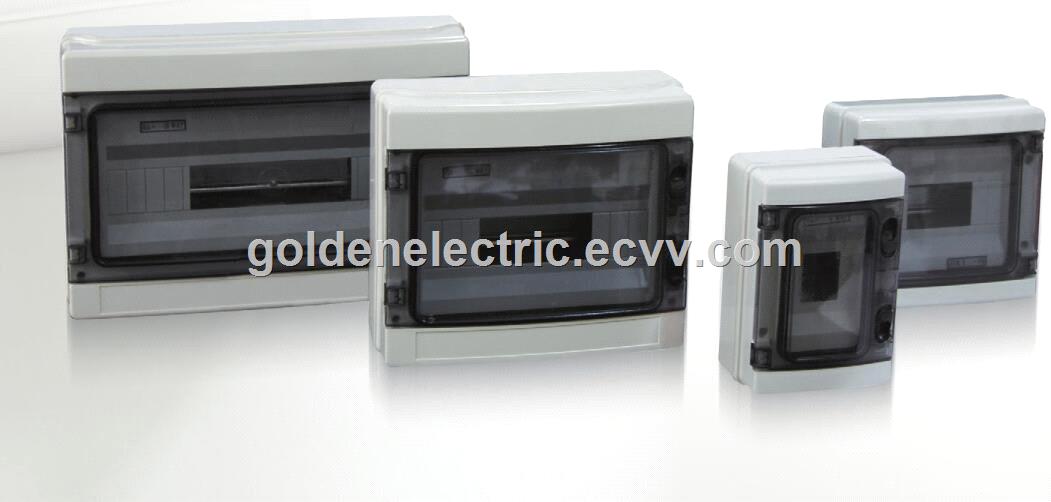

HA 4 WAYS DISTRIBUTION BOX
HA 4 WAYS DISTRIBUTION BOX
 Features
 1.Panel is the ABS material for the engineering,high strength,never change color,the transparent material is PC.
  2.Cover push-type opening and closing

     Face covering of the distribution box adopts the push-type opening and closing mode,the face mask can be opened by pressing            lightly,the self-locking positioning hinge strucrure is provide when oepning.

   3.Wiring design of the Power distribution box

     the guide rail support plate can be lifted to the highest movable point,it is no longer limited by the narrow space when installing          the wire.to install easily,the switch of the distribution box is set up with the wire groove and wire pipe exit-holes,which are easy          to use for a varityu of wire grooves and wire pipes

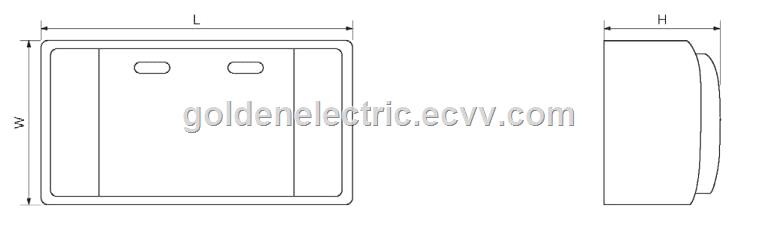

     Outline and mounting dimensions
HA 4 WAYS DISTRIBUTION BOX


           Model                L         W           H
            GHA-4P                140         140          100
            GHA-8P
               215         210          100
            GHA-12P                300         260          140
            GHA-18P                410        285          140
            GHA-24P                415        300          140


  HA 4 WAYS DISTRIBUTION BOX
